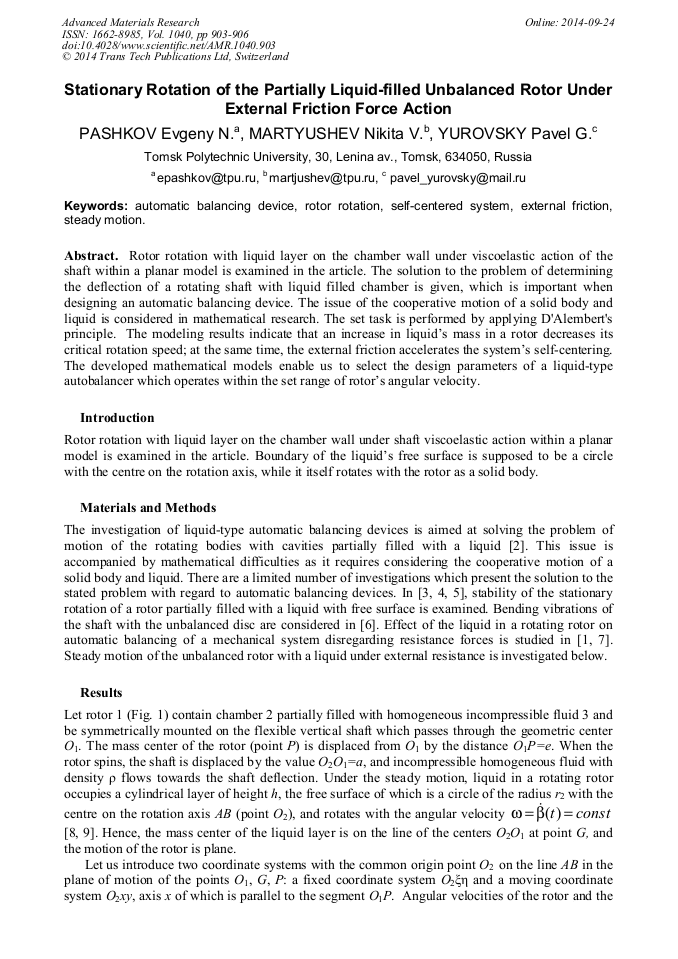

Stationary Rotation of the Partially Liquid-Filled Unbalanced Rotor under External Friction Force Action

Abstract:

Rotor rotation with liquid layer on the chamber wall under viscoelastic action of the shaft within a planar model is examined in the article. The solution to the problem of determining the deflection of a rotating shaft with liquid filled chamber is given, which is important when designing an automatic balancing device. The issue of the cooperative motion of a solid body and liquid is considered in mathematical research. The set task is performed by applying D'Alembert's principle. The modeling results indicate that an increase in liquid’s mass in a rotor decreases its critical rotation speed; at the same time, the external friction accelerates the system’s self-centering. The developed mathematical models enable us to select the design parameters of a liquid-type autobalancer which operates within the set range of rotor’s angular velocity.

• Periodical: Advanced Materials Research (Volume 1040)
• Pages: 903-906
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1040.903
• Online since: September 2014
• Authors: E.N. Pashkov*, Nikita V. Martyushev, Pavel G. Yurovsky
• Keywords: Automatic Balancing Device, External Friction, Rotor Rotation, Self-Centered System, Steady Motion

References

[1] D.A. Chinakhov, A.V. Vorobyov, A.A. Tomchik, Simulation of active shielding gas impact on heat distribution in the weld zone, Materials Science Forum. 762 (2013) 717-721.

DOI: 10.4028/www.scientific.net/msf.762.717

[2] T.V. Nekrasova, A.G. Melnikov, N.V. Martyushev, Creation of ceramic nanocomposite material on the basis of ZrO2-Y2O3-Al2O3 with improved operational properties of the working surface,  Applied Mechanics and Materials. 379 (2013) 77 - 81.

DOI: 10.4028/www.scientific.net/amm.379.77

[3] N.V. Martyushev, Alignment of the microstructure of castings from the heterophase lead bronzes,   Advanced Materials Research.  880 (2014) 163 - 167.

DOI: 10.4028/www.scientific.net/amr.880.163

[4] N.V. Martyushev, I.V. Semenkov, The possibility of casting surface alloying by nanopowders,   Advanced Materials Research.  880 (2014) 272 - 275.

DOI: 10.4028/www.scientific.net/amr.880.272

[5] S.N. Sorokova, A.G. Knyazeva, Estimation of the stresses in a coating growing on a flat plate under nonisothermal conditions, Russian Physics Journal.  12 (2009) 1309 - 1316.

DOI: 10.1007/s11182-010-9372-7

[6] E.N. Pashkov, G.R. Zijakaev, M.V. Tsigankova, Differential equations of processes for the hydropuls power mechanism of drill machines, Applied Mechanics and Materials.  379 (2013) 91 - 94.

DOI: 10.4028/www.scientific.net/amm.379.91

[7] S.N. Sorokova, A.G. Knyazeva, Stability of the combustion wave in a viscoelastic medium to small one-dimensional perturbations, Combustion, Explosion and Shock Waves  4 (2006) 411 – 420.

DOI: 10.1007/s10573-006-0070-2

[8] I.P. Chernov, S.V. Ivanova, M.K. Krening, N. Koval', V.V. Larionov, A.M. Lider, N.S. Pushilina, Y.P. Cherdantsev, Properties and structural state of the surface layer in a zirconium alloy modified by a pulsed electron beam and saturated by hydrogen, Technical Physics.  57  (2012).

DOI: 10.1134/s1063784212030024

[9] A.M. Lider, M. Krening, V.V. Larionov, G.V. Garanin, Hydrogen migration in metals under the combined action of acoustic and ionizing radiation, Technical Physics.  56  (2011) 1630 - 1634.

DOI: 10.1134/s1063784211110168

[10] N.N. Nikitenkov, A.M. Khashkhash, Y.I. Tyurin, I.P. Chernov, A.M. Lider, Dynamics of hydrogen accumulation and radiation-stimulated release from steels, Journal of Surface Investigation.  4  (2010) 236 - 240.

DOI: 10.1134/s1027451010020102
