Simulation of Constant Pressure in Water Supply System with Frequency Converter Based on Matlab

Abstract:

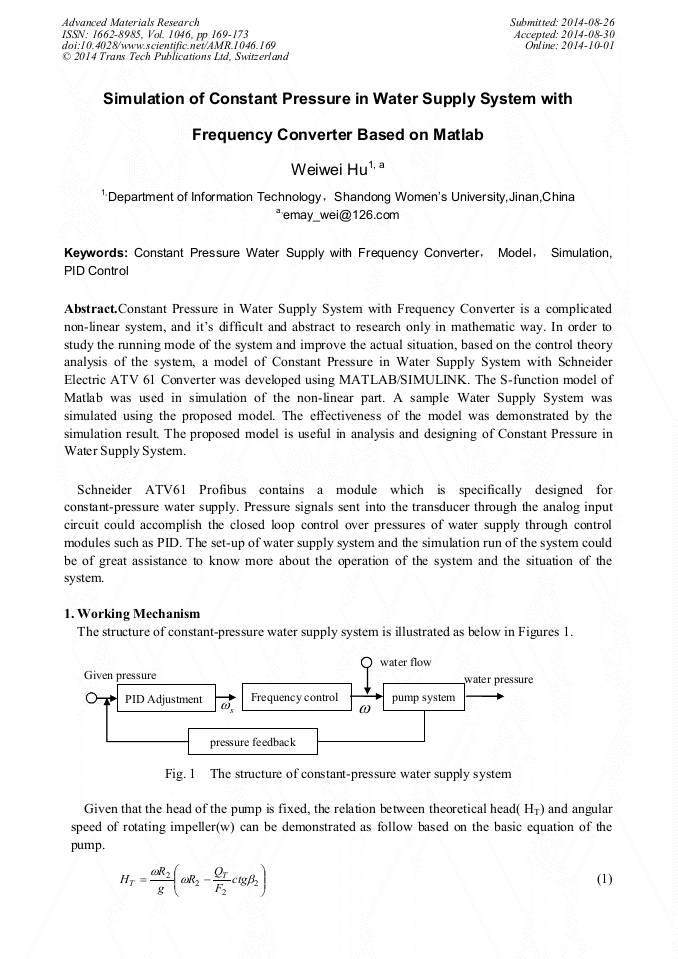

Constant Pressure in Water Supply System with Frequency Converter is a complicated non-linear system, and it’s difficult and abstract to research only in mathematic way. In order to study the running mode of the system and improve the actual situation, based on the control theory analysis of the system, a model of Constant Pressure in Water Supply System with Schneider Electric ATV 61 Converter was developed using MATLAB/SIMULINK. The S-function model of Matlab was used in simulation of the non-linear part. A sample Water Supply System was simulated using the proposed model. The effectiveness of the model was demonstrated by the simulation result. The proposed model is useful in analysis and designing of Constant Pressure in Water Supply System.
