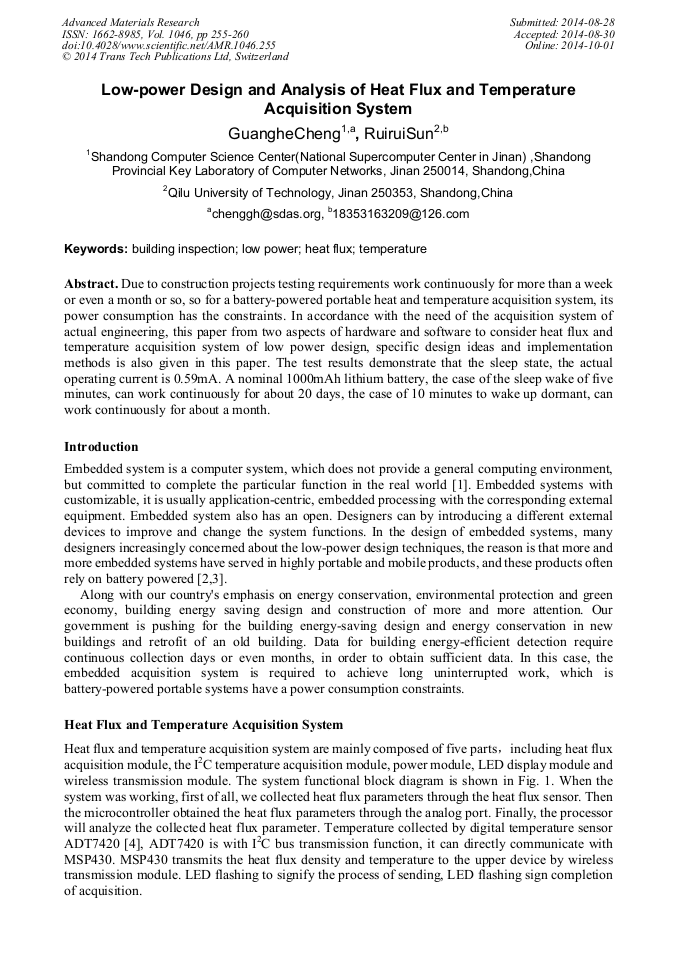

Low-Power Design and Analysis of Heat Flux and Temperature Acquisition System

Abstract:

Due to construction projects testing requirements work continuously for more than a week or even a month or so, so for a battery-powered portable heat and temperature acquisition system, its power consumption has the constraints. In accordance with the need of the acquisition system of actual engineering, this paper from two aspects of hardware and software to consider heat flux and temperature acquisition system of low power design, specific design ideas and implementation methods is also given in this paper. The test results demonstrate that the sleep state, the actual operating current is 0.59mA. A nominal 1000mAh lithium battery, the case of the sleep wake of five minutes, can work continuously for about 20 days, the case of 10 minutes to wake up dormant, can work continuously for about a month.

You might also be interested in these eBooks

Advanced Development of Engineering Science IV

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1046)

Pages:

255-260

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1046.255

Citation:

Cite this paper

Online since:

October 2014

Authors:

Guang He Cheng, Rui Rui Sun*

Keywords:

Building Inspection, Heat Flux, Low Power, Temperature

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Wayne Wolf, Embedded Computing, Computer, 2002, Vol. 35, pp.136-137.

Google Scholar

[2] Huang Jiangwei. Low-Power computing for embedded mobile system Software with DVS support[D]. Hangzhou: Zhejiang University, (2009).

Google Scholar

[3] HU Xiao-ling, XU Ke-jun, et al．Development of Experimental Equipment for Ultra-low Power MCU MSP430F6736, Research and Exploration in Laboratory, 2014, Vol. 33, pp.69-73.

Google Scholar

[4] SUN Rui-rui, CHENG Guang-he. Multi-point Temperature Acquisition System Based on MSP430 and ADT7420, Information & communications, 2014, Vol. 7, pp.62-63.

Google Scholar

[5] SUN Rui-rui, CHENG Guang-he. A Low-power Embedded Systems Software Anti-interference Method, Information Technology and Informatization, 2014, Vol. 3, pp.102-105.

Google Scholar
