Effect of Deposition Voltage on the Composition, Morphology and Optical Properties of ZnS Thin Films Prepared by Cathodic Electrodeposition

Abstract:

Zinc sulphide (ZnS) thin films were deposited on the indium tin oxide (ITO) substrates by a novel, simple cathodic electrodeposition method under atmospheric pressure. These thin films were characterized by X-ray diffraction (XRD), atomic force microscopy (AFM) and photoluminescence spectrum (PL) at room temperature. The effects of deposition voltage on the phase composition, morphology and photoluminescence behavior of the thin films were investigated. XRD analysis shows that the deposited thin films is highly preferential growth along (200) orientation. Both AFM and XRD analyses indicate that the surface of the ZnS thin films is composed of uniform grains of around 50 nm in diameter. With the increase in the deposition voltages, the crystallization of the obtained thin films improves and the grain size of the ZnS thin films increases. Photoluminescence emission peaks are observed at at 475~490 nm and 500 ~530 nm at room temperature for an excitation of 210 nm.

You might also be interested in these eBooks

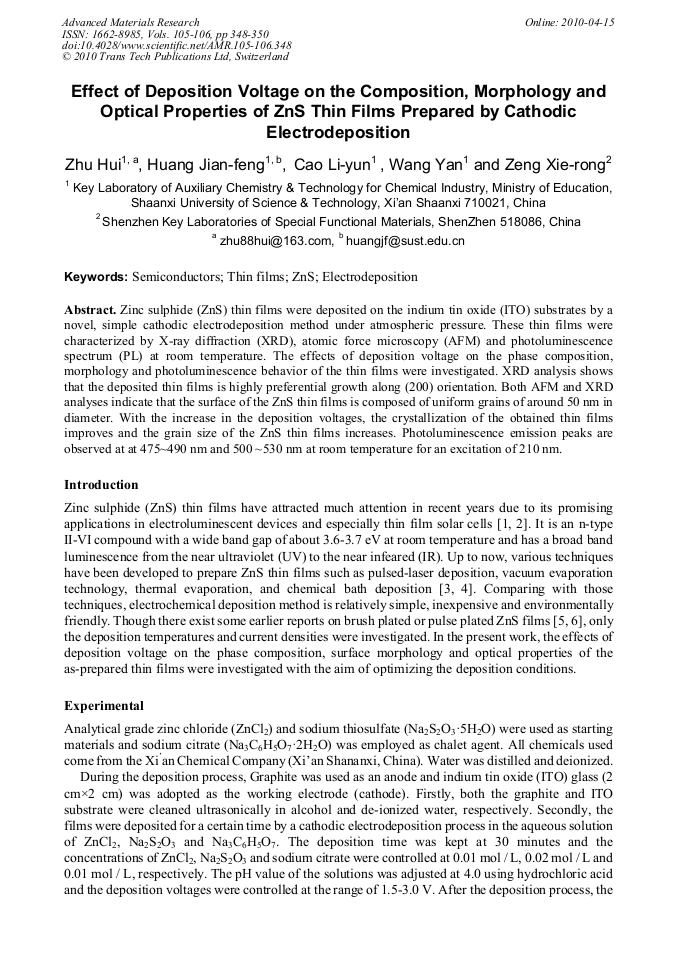

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 105-106)

Pages:

348-350

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.105-106.348

Citation:

Cite this paper

Online since:

April 2010

Authors:

Hui Zhu, Jian Feng Huang, Li Yun Cao, Yan Wang, Xie Rong Zeng

Keywords:

Electro-Deposition, Semiconductor, Thin Film, ZnS

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] E. Monroy and F. Omnes: Semicond. Sci. Technol. Vol. 18 (2003), p.33.

Google Scholar

[2] H. Katayama, S. Oda and H. Kukimoto: Appl. Phys. Lett. Vol. 27 (1975), p.657.

Google Scholar

[3] Z. J. Xin, R. J. Peaty, H. N. Rutt, et al.: Semicond. Sci. Technol. Vol. 14 (1999), p.695.

Google Scholar

[4] B. Elidrissi, M. Addou, M. Regragui, et al.: Mat. Chem. Phys. Vol. 68 (2001), p.175.

Google Scholar

[5] K. R. Murali, A. Clara Dhanemozhi and R. John: J. Alloys Compd. Vol. 464 (2008), p.383.

Google Scholar

[6] K. R. Murali, S. Vasantha and K. Rajamma: Mater. Lett. Vol. 62 (2008), pp.1832-1826.

Google Scholar

[7] T. Ben Nasr, N. Kamoun and M. Kanzari: Thin Solid Flims Vol. 500 (2006), p.4.

Google Scholar

[8] T. B. Oznuluer, I. Erdogan and U. Demir: Langmuir Vol. 22 (2006), p.4415.

Google Scholar

[9] A. N. Yazici, M. Oztas and M. Bedir: J. Lumin. Vol. 104 (2003), p.115. Fig. 3 Photoluminescence spectra of the as-prepared thin films deposited at 2. 5 V and 3. 0 V.
