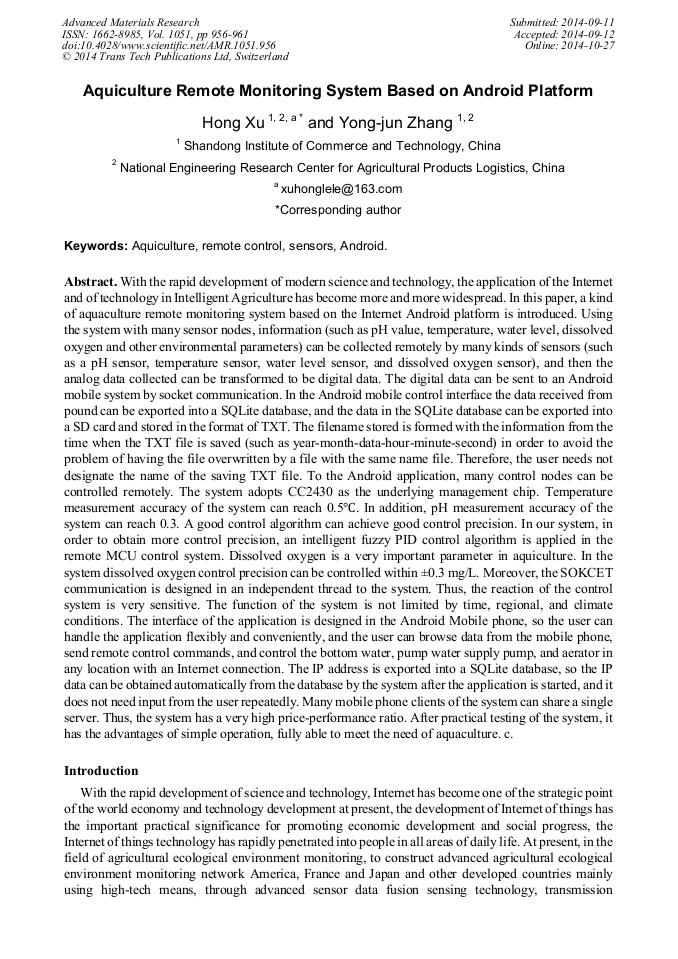

Aquiculture Remote Monitoring System Based on Android Platform

Abstract:

With the rapid development of modern science and technology, the application of the Internet and of technology in Intelligent Agriculture has become more and more widespread. In this paper, a kind of aquaculture remote monitoring system based on the Internet Android platform is introduced. Using the system with many sensor nodes, information (such as pH value, temperature, water level, dissolved oxygen and other environmental parameters) can be collected remotely by many kinds of sensors (such as a pH sensor, temperature sensor, water level sensor, and dissolved oxygen sensor), and then the analog data collected can be transformed to be digital data. The digital data can be sent to an Android mobile system by socket communication. In the Android mobile control interface the data received from pound can be exported into a SQLite database, and the data in the SQLite database can be exported into a SD card and stored in the format of TXT. The filename stored is formed with the information from the time when the TXT file is saved (such as year-month-data-hour-minute-second) in order to avoid the problem of having the file overwritten by a file with the same name file. Therefore, the user needs not designate the name of the saving TXT file. To the Android application, many control nodes can be controlled remotely. The system adopts CC2430 as the underlying management chip. Temperature measurement accuracy of the system can reach 0.5°C. In addition, pH measurement accuracy of the system can reach 0.3. A good control algorithm can achieve good control precision. In our system, in order to obtain more control precision, an intelligent fuzzy PID control algorithm is applied in the remote MCU control system. Dissolved oxygen is a very important parameter in aquiculture. In the system dissolved oxygen control precision can be controlled within ±0.3 mg/L. Moreover, the SOKCET communication is designed in an independent thread to the system. Thus, the reaction of the control system is very sensitive. The function of the system is not limited by time, regional, and climate conditions. The interface of the application is designed in the Android Mobile phone, so the user can handle the application flexibly and conveniently, and the user can browse data from the mobile phone, send remote control commands, and control the bottom water, pump water supply pump, and aerator in any location with an Internet connection. The IP address is exported into a SQLite database, so the IP data can be obtained automatically from the database by the system after the application is started, and it does not need input from the user repeatedly. Many mobile phone clients of the system can share a single server. Thus, the system has a very high price-performance ratio. After practical testing of the system, it has the advantages of simple operation, fully able to meet the need of aquaculture. c.

• Periodical: Advanced Materials Research (Volume 1051)
• Pages: 956-961
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1051.956
• Online since: October 2014
• Authors: Hong Xu*, Yong Jun Zhang
• Keywords: Android, Aquiculture, Remote Control, Sensor

References

[1] Liu Xingguo, Liu Zhaopu, Wang Pengxiang, Aquaculture security guarantee system based on water quality monitoring and its application [J]. Transactions of the Chinese Society of Agricultural Engineering (Transactions of the CSAE), 2009, 25(6): 186-191.

[2] Shi Bing, Zhao Dean, Liu Xinqiao, et al. Intelligent monitoring system for industrialized aquaculture based on wireless sensor network[j] Transactions of the Chinese Society of Agricultural Engineering (Transactions of the CSAE), 2011, 27(9): 136-140.

[3] Serfass D, Yoshigoe K. Wireless Sensor Networks using android virtual devices and Near Field Communication peer-to-peer emulation [J] southeast on, Proceedings of IEEE_2012: 1-6.

DOI: 10.1109/secon.2012.6196980

[4] Noma M, Saiwaki N, Itakura S, et al. Composition and Evaluation of the Humanlike Motions of An Android [C]/2006 6th IEEE-RAS International Conference on Humanoid Robots, 2006: 163-168.

DOI: 10.1109/ichr.2006.321379

[5] Huan Juan, Liu Xingqiao, Cheng Liqiang, et al. Design of a wireless water environment monitoring system based on Zigbee in aquaculture[J]. Fishery Modernization, 2012, 39(1): 34-39.

[6] Shi Bing, Zhao Dean, Liu Xingqiao, et al. Design of intelligent monitoring system for aquaculture [J]. Transactions of the Chinese Society for Agricultural Machinery, 2011, 42(9): 191-196.

[7] Zhan Chengguo, Zhu Wei, Xu Min. Man-machine interface design and implementation based on Android for measuring and control unit [J]. Electric Power Automation Equipment, 2012, 32(1): 119-122.
