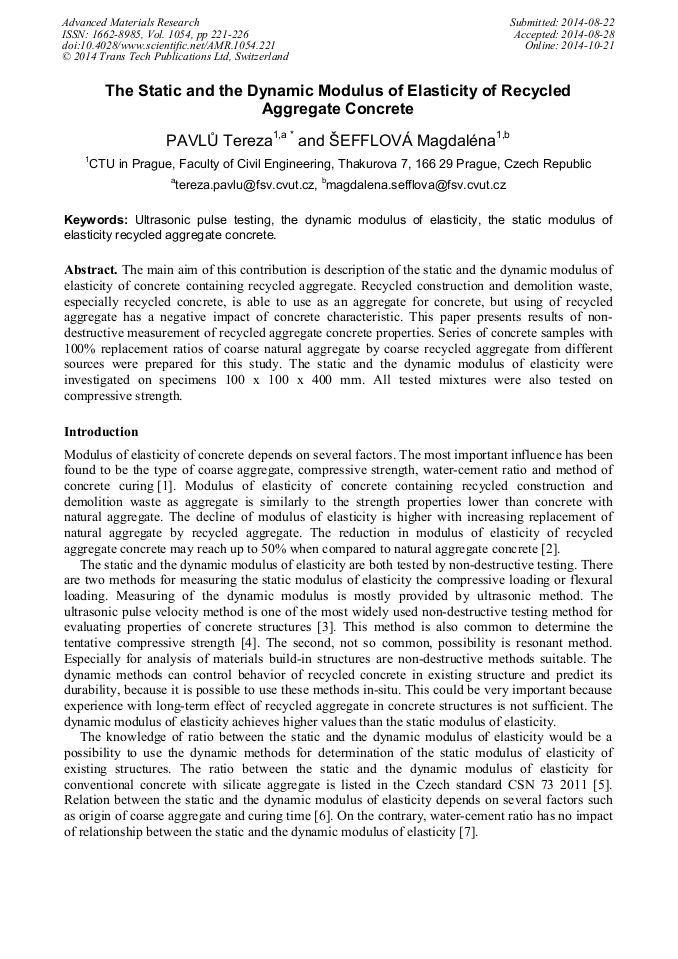

The Static and the Dynamic Modulus of Elasticity of Recycled Aggregate Concrete

Abstract:

The main aim of this contribution is description of the static and the dynamic modulus of elasticity of concrete containing recycled aggregate. Recycled construction and demolition waste, especially recycled concrete, is able to use as an aggregate for concrete, but using of recycled aggregate has a negative impact of concrete characteristic. This paper presents results of non-destructive measurement of recycled aggregate concrete properties. Series of concrete samples with 100% replacement ratios of coarse natural aggregate by coarse recycled aggregate from different sources were prepared for this study. The static and the dynamic modulus of elasticity were investigated on specimens 100 x 100 x 400 mm. All tested mixtures were also tested on compressive strength.

• Periodical: Advanced Materials Research (Volume 1054)
• Pages: 221-226
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1054.221
• Online since: October 2014
• Authors: Tereza Pavlů*, Magdaléna Šefflová
• Keywords: Dynamic Modulus of Elasticity, Static Modulus of Elasticity Recycled Aggregate Concrete, Ultrasonic Pulse Testing

References

[1] Petr Cikrle and Vlastimil Bílek, Modulus of elasticity of high strength concretes, Beton TKS, no. 5, pp.40-44, 2010. (in czech).

[2] Jorge De Brito and Nabajyoti Saikia, Recycled Aggregate in Concrete. London: Springer-Verlag, (2013).

[3] John T. Petro and Kim Jubum, Detection of delamination in concrete using ultrasonic pulse velocity test, no. 26, pp.574-582, June (2012).

[4] Holčapek, O., Reiterman, P., Jogl, M., Konvalinka, P., 2014, Destructive and non-destructive testing of high temperature influence on refractory fiber composite, Advanced Materials Research, Vol. 982, pp.145-148.

DOI: 10.4028/www.scientific.net/amr.982.145

[5] CSN 73 2011 Non-destructive testing of concrete structures, 2012. (in czech).

[6] Petr Cinkrle and Dalibor Kocab, Static and dynamic elastic moduls of concrete, (2014).

[7] Sang-Hun Han and Jin-Keun Kim, Effect of temperature and age on the relationship between dynamic and static elastic modulus of concrete, vol. 34, no. 7, pp.1219-1227, June (2004).

DOI: 10.1016/j.cemconres.2003.12.011

[8] ČSN EN 12620 + A1 Aggregate for concrete, 2008. (in czech).

[9] CSN EN 206 Concrete- Specification, performance, production and conformity, 2014. (in czech).

[10] ČSN ISO 6784 Concrete- Determination of static modulus of elasticity in compression, 1993. (in czech).

[11] CSN EN 12504-4: Testing concrete – Part 4: Determination of ultrasonic pulse velocity , 2005. (in czech).

[12] CSN 73 1371: Non-destructive testing of concrete – Method of ultrasonic pulse testing of concrete, 2011. (in czech) x x.
