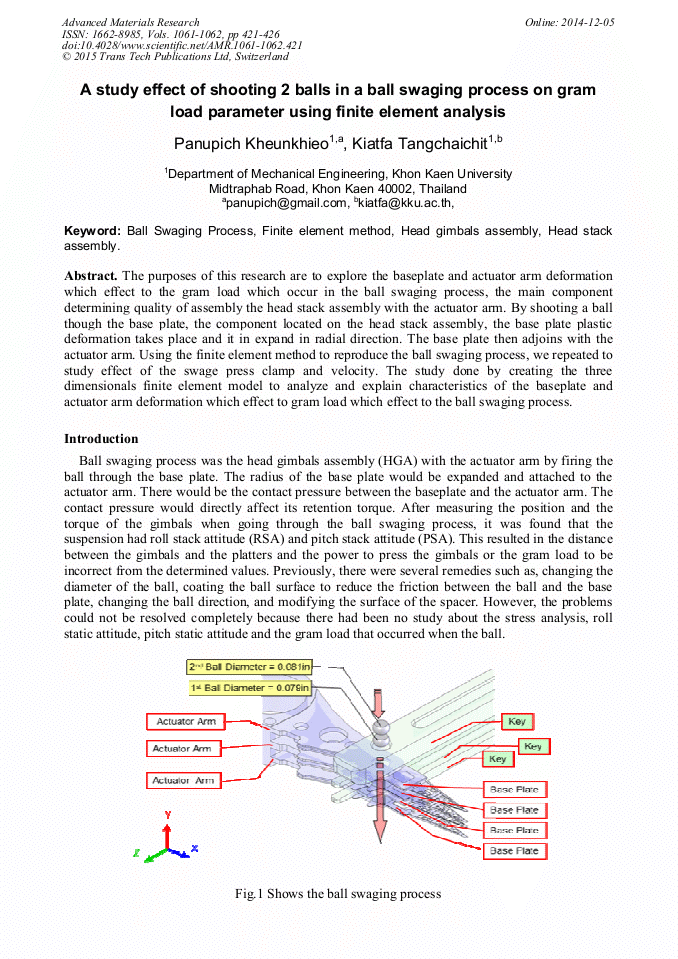

A Study Effect of Shooting 2 Balls in a Ball Swaging Process on Gram Load Parameter Using Finite Element Analysis

Abstract:

The purposes of this research are to explore the baseplate and actuator arm deformation which effect to the gram load which occur in the ball swaging process, the main component determining quality of assembly the head stack assembly with the actuator arm. By shooting a ball though the base plate, the component located on the head stack assembly, the base plate plastic deformation takes place and it in expand in radial direction. The base plate then adjoins with the actuator arm. Using the finite element method to reproduce the ball swaging process, we repeated to study effect of the swage press clamp and velocity. The study done by creating the three dimensionals finite element model to analyze and explain characteristics of the baseplate and actuator arm deformation which effect to gram load which effect to the ball swaging process.

• Periodical: Advanced Materials Research (Volumes 1061-1062)
• Pages: 421-426
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1061-1062.421
• Online since: December 2014
• Authors: Panupich Kheunkhieo*, Kiatfa Tangchaichit
• Keywords: Ball Swaging Process, Finite Element Method (FEM), Head Gimbals Assembly, Head Stack Assembly

References

[1] The PC Guide. (2004). Construction and operation of the hard disk. Retrieved February 28, 2008, from http: /www. pcguide. com/ref/hdd/op/index. htm.

[2] A. Piela. (1992). Study on the applicability of the finite element method to the analysis of swaging process. Archives of Metallurgy, 37, 425 – 443.

[3] Seagate Technology Incorporation, Scotts Valley, Calif. (1992). Apparatus for Predicting Twist out Torque in a Swage Mount. United States Patent. US 5, 142, 700.

[4] S. K. Wadhwa. (1996). Material Compatibility and Some Understanding of the Ball Swaging Process. IEEE Trans. Magn., 32 (3), 1837-1842.

DOI: 10.1109/20.492874

[5] International Business Machines Corporation. Armonk. N.Y. (1999). Etched/Lubricated Swage Ball for used in DASD Suspension-Arm Attachment. United States Patent. US 5, 879, 578.

[6] Kamnerdtong, T., Chutima, S., and Ekintumas, K. (2005). Effect of Swaging Process Parameters on Specimen Deformation. The 8th Asian Symposium on Visualization. 50. 1-50. 7.

[7] R. E. Fossum. (2006). Suspension base plate with boss tower having tapered swage ball- engaging surface. US Patent, US 7, 130, 156 B1.

[8] Aoki, K., and Aruga, K. (2007). Numerical Ball Swaging Analysis of Head Arm for Hard Disk Drives. Springer Microsyst Technol, 13, 943-949.

DOI: 10.1007/s00542-006-0299-4

[9] Pattaramon J., Rattharong R., and Chatchapol S. (2009). Optimizad baseplate geometry for ball swaging process by using finite element analysis. Songklanakarin J. Sci. Technol. 31(5), 533-540.

[10] Jian Yang, Chen-Chi Lin, & Shahab Tabrizi. (2007). Finite Element Simulation of Ball Swaging Process of Jointing HGA With Actuator Arm and Gram Load Calculation. ASME Information Storage and Processing Systems Conference, Santa Clara, CA.
