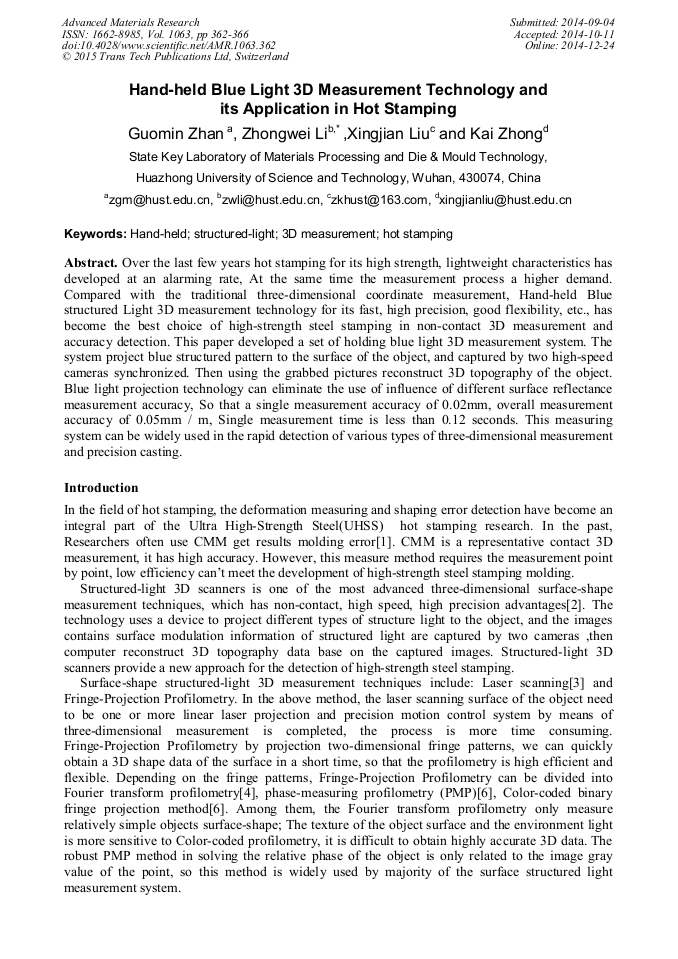

Hand-Held Blue Light 3D Measurement Technology and its Application in Hot Stamping

Abstract:

Over the last few years hot stamping for its high strength, lightweight characteristics has developed at an alarming rate, At the same time the measurement process a higher demand. Compared with the traditional three-dimensional coordinate measurement, Hand-held Blue structured Light 3D measurement technology for its fast, high precision, good flexibility, etc., has become the best choice of high-strength steel stamping in non-contact 3D measurement and accuracy detection. This paper developed a set of holding blue light 3D measurement system. The system project blue structured pattern to the surface of the object, and captured by two high-speed cameras synchronized. Then using the grabbed pictures reconstruct 3D topography of the object. Blue light projection technology can eliminate the use of influence of different surface reflectance measurement accuracy, So that a single measurement accuracy of 0.02mm, overall measurement accuracy of 0.05mm / m, Single measurement time is less than 0.12 seconds. This measuring system can be widely used in the rapid detection of various types of three-dimensional measurement and precision casting.

• Periodical: Advanced Materials Research (Volume 1063)
• Pages: 362-366
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1063.362
• Online since: December 2014
• Authors: Guo Min Zhan, Zhong Wei Li*, Xing Jian Liu, Kai Zhong
• Keywords: 3D Measurement, Hand-Held, Hot Stamping, Structured-Light

References

[1] Kim, H., Kimchi, M., & Altan, T, Control of spring back in bending and flanging advanced high strength steels (AHSS), In 2009 International automotive body congress (IABC), Troy, Michigan, USA. 2009, November.

[2] Zhong K, Li Z, Zhou X, et al. Real-time 3D shape measurement system with full temporal resolution and spatial resolution[C], IS&T/SPIE Electronic Imaging. International Society for Optics and Photonics, 2014: 901309-901309-13.

DOI: 10.1117/12.2039340

[3] Milroy, M., Weir D. J., Bradley C. et al. Reverse engineering employing a 3D laser scanner: a case study. The International Journal of Advanced Manufacturing Technology, 1996. 12(2): 111-121.

DOI: 10.1007/bf01178951

[4] Takeda, M., Mutoh K. Fourier transform profilometry for the automatic measurement of 3-D object shapes. Applied optics, 1983. 22(24): 3977-3982.

DOI: 10.1364/ao.22.003977

[5] Srinivasan, V., Liu H., M. Halioua. Automated phase-measuring profilometry of 3-D diffuse objects. Applied optics, 1984. 23(18): 3105-3108.

DOI: 10.1364/ao.23.003105

[6] Li Zhongwei. Grating structure based on digital light projection of a three-dimensional measurement technology and systems research, Wuhan: Huazhong University of Science and Technology, (2009).

[7] Pan, J., Huang P., Chiang F. Color-coded binary fringe projection technique for 3-D shape measurement. Optical Engineering, 2005. 44: 023606.

DOI: 10.1117/1.1840973

[8] http: /www. power3d. net.

[9] Li Z, Li Y. Gamma-distorted fringe image modeling and accurate gamma correction for fast phase measuring profilometry[J]. Optics letters, 2011, 36(2): 154-156.

DOI: 10.1364/ol.36.000154

[10] Li Z, Shi Y, Wang C, et al. Accurate calibration method for a structured light system[J]. Optical Engineering, 2008, 47(5): 053604-053604-9.

DOI: 10.1117/1.2931517
