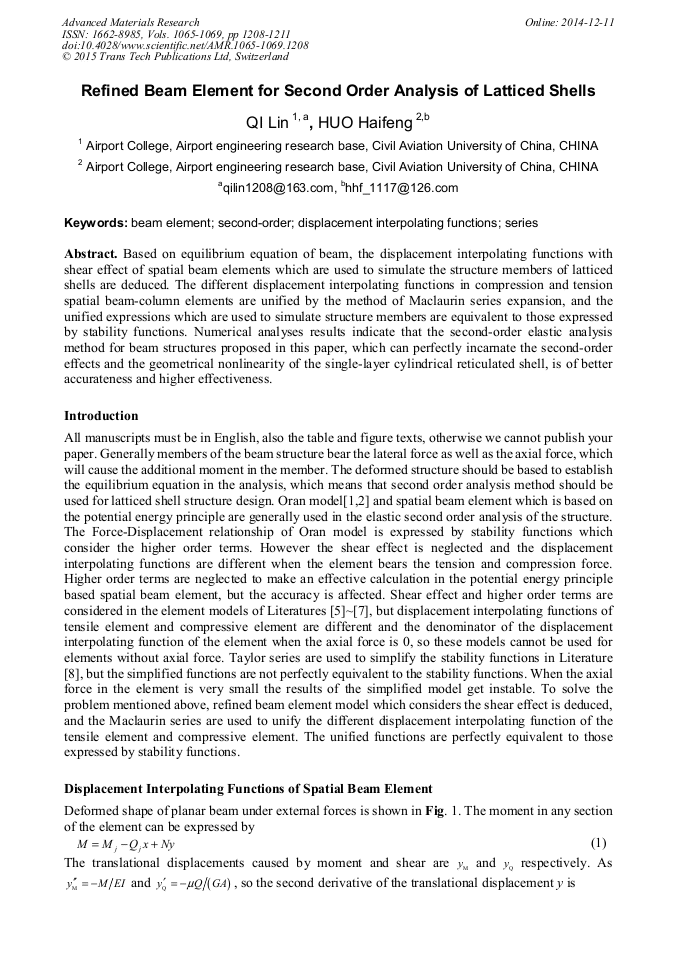

Refined Beam Element for Second Order Analysis of Latticed Shells

Abstract:

Based on equilibrium equation of beam, the displacement interpolating functions with shear effect of spatial beam elements which are used to simulate the structure members of latticed shells are deduced. The different displacement interpolating functions in compression and tension spatial beam-column elements are unified by the method of Maclaurin series expansion, and the unified expressions which are used to simulate structure members are equivalent to those expressed by stability functions. Numerical analyses results indicate that the second-order elastic analysis method for beam structures proposed in this paper, which can perfectly incarnate the second-order effects and the geometrical nonlinearity of the single-layer cylindrical reticulated shell, is of better accurateness and higher effectiveness.

• Periodical: Advanced Materials Research (Volumes 1065-1069)
• Pages: 1208-1211
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1065-1069.1208
• Online since: December 2014
• Authors: Lin Qi*, Hai Feng Huo
• Keywords: Beam Element, Displacement Interpolating Functions, Second-Order, Series

References

[1] Cenap Oran. Tangent stiffness in plane frames[J]. Journal of the Structural Division, 1973, 99(6): 973-985.

DOI: 10.1061/jsdeag.0003547

[2] Cenap Oran. Tangent stiffness in space frames[J]. Journal of the Structural Division, 1973, 99(6): 987-1001.

DOI: 10.1061/jsdeag.0003548

[3] Meek J L and Tan H S. Geometrically nonlinear analysis of space frames by an incremental iterative technique[J]. Computer Methods in Applied Mechanics and Engineering, 1984, 47(1): 261-282.

DOI: 10.1016/0045-7825(84)90079-3

[4] Chan S L and Kitiporncai S. Geometric nonlinear analysis of asymmetric thin-walled beam-columns[J]. Engineering Structures, 1987, 9(4), 243-254.

DOI: 10.1016/0141-0296(87)90023-x

[5] ZHENG Tingyin, ZHAO Huilin. Modified dual nonlinear analysis of space steel frame structures[J]. Engineering Mechanics, 2003, 20(6): 202-208. ( in Chinese).

[6] ZHENG Tingyin. Advanced analysis theory and practicable calculation for huge steel frame systems in high-rise buildings[D]. Nanjing: Southeast University, 2002. (in Chinese).

[7] J Y Richard Liew, H Chen, N E Shanmugam, et al. Improved nonlinear plastic hinge analysis of space frame structures[J]. Engineering Structures, 2000, 22(10): 1324-1338.

DOI: 10.1016/s0141-0296(99)00085-1

[8] Y. Goto and Wai-Fah Chen. Second-order elastic analysis for frame design[J]. Journal of Structural Engineering, 1987, 113(7): 1501-1519.

DOI: 10.1061/(asce)0733-9445(1987)113:7(1501)

[9] Timoshenko S P. Theory of Elastic Stability[M]. New York: Mc Graw Hill Book Company, (1936).
