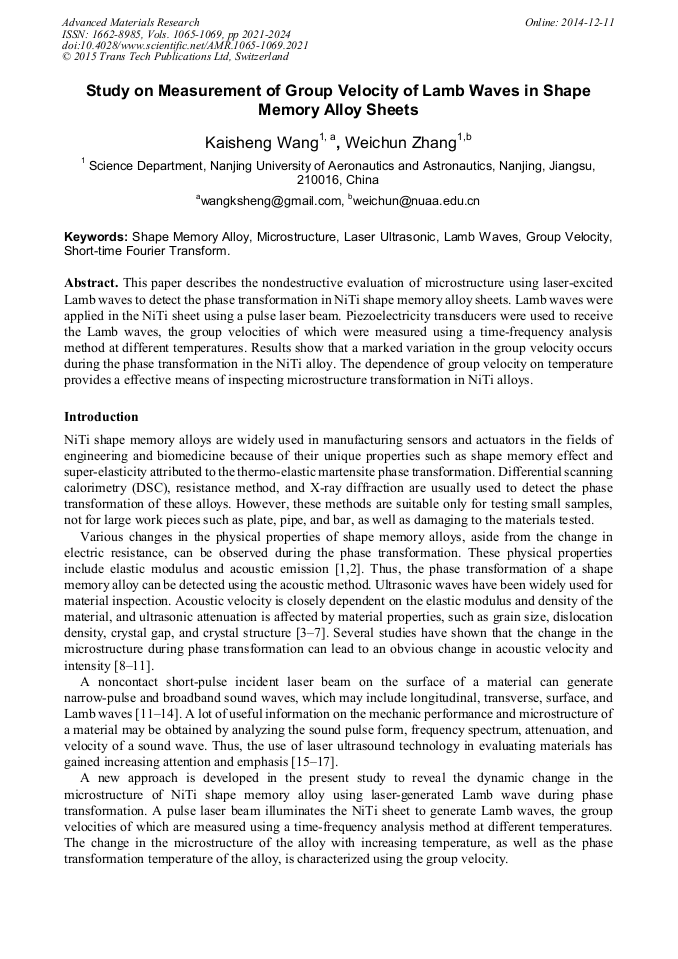

Study on Measurement of Group Velocity of Lamb Waves in Shape Memory Alloy Sheets

Abstract:

This paper describes the nondestructive evaluation of microstructure using laser-excited Lamb waves to detect the phase transformation in NiTi shape memory alloy sheets. Lamb waves were applied in the NiTi sheet using a pulse laser beam. Piezoelectricity transducers were used to receive the Lamb waves, the group velocities of which were measured using a time-frequency analysis method at different temperatures. Results show that a marked variation in the group velocity occurs during the phase transformation in the NiTi alloy. The dependence of group velocity on temperature provides a effective means of inspecting microstructure transformation in NiTi alloys.

• Periodical: Advanced Materials Research (Volumes 1065-1069)
• Pages: 2021-2024
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1065-1069.2021
• Online since: December 2014
• Authors: Kai Sheng Wang*, Wei Chun Zhang
• Keywords: Group Velocity, Lamb Waves, Laser Ultrasonic, Microstructure, Shape Memory Alloy (SMA), Short-Time Fourier Transform

References

[1] M. Carvallo, Z.J. Pu, K.H. Wu, J. Intell. Mater. Syst. And Struct., 6 (1995) 557-565.

[2] V.A. Plotnikov, D.V. Kokhanenko, Tech. Phys. Lett., 28 (2002) 82-88.

[3] R. Basri, W.K. Chiu, Compos. Struct., 66 (2004) 87-99.

[4] S. Bolognini, A. Moreau, J. Appl. Phys., 94 (2003) 3771-3780.

[5] S. Sundina, D. Artymowicz, A. Astill, Mater. Charact., 48 (2002) 71-79.

[6] Y. Ge'le'bart, H. Duflo, J. Duclos, NDT&E Int., 40 (2007) 29-34.

[7] M. Cinquin, M. Castaings and B. Hosten, NDT&E Int., 38 (2005) 37–44.

[8] W. Rehwald, Adv. Phys., 22 (1973) 721-755.

[9] A. Deepthy, H.L. Bhat, Phys. Rev. B., 62 (2000) 8752-8758.

[10] L. Yang, J.A. Turner and Z. Li, J. Acoust. Soc. Am., 121 (2007) 50–59.

[11] D. Marc, M. Andre, J. Appl. Phys. 89 (2001) 6487-6495.

[12] J.A. Rogers, A.A. Maznev and M.J. Banet, Ann. Rev. Mater. Sci., 30 (2000) 117-157.

[13] S.J. Davies, C. Edwards and G.G. Taylor, J. Phys. D Appl. Phys., 26 (1993) 329-348.

[14] D.A. Hutchins, K. Lundgren, J. Acoust. Soc. Am., 85 (1989) 1441-1448.

[15] F.F. Zhang, S. Krishnaswamy and C.M. Lilley, Ultrasonic, 45 (2006) 66-76.

[16] D.M. Profunser, J. Vollmann and J. Dual, Ultrasonic, 42 (2004) 641-646.

[17] J. Balogun, R. Huber and J. Chin, J. Acoust. Soc. Am., 125 (2009) 1437-1443.

[18] S. Renee, G. Jacques and Z. Djamel, Ultrasonic, 39 (2002) 487–494.
