Testing and Diagnosis of Extra High Voltage Power Cables Using Damped AC Voltages Combined with Distributed Partial Discharge Measurement

Abstract:

State assessment method of cables with extruded insulation and their accessories, DAC withstand test combined with a diagnostic test (such as PD measurement) has two shortcomings, the output voltage is not high enough for EHV cables, it cannot detect and locate PD effectively when defects are far away from signal acquisition point. This paper focus on DAC voltages up to 250kV and a kind of distributed measurement of PD. Defects existing in arbitrary of tested cable can be accurately measured in theory by installing sensor at intervals along the tested cable. This method has been validated on a long extra high voltage cross-linked polyethylene (XLPE) insulated underground cable circuit and the filed PD test has been completed successfully.

You might also be interested in these eBooks

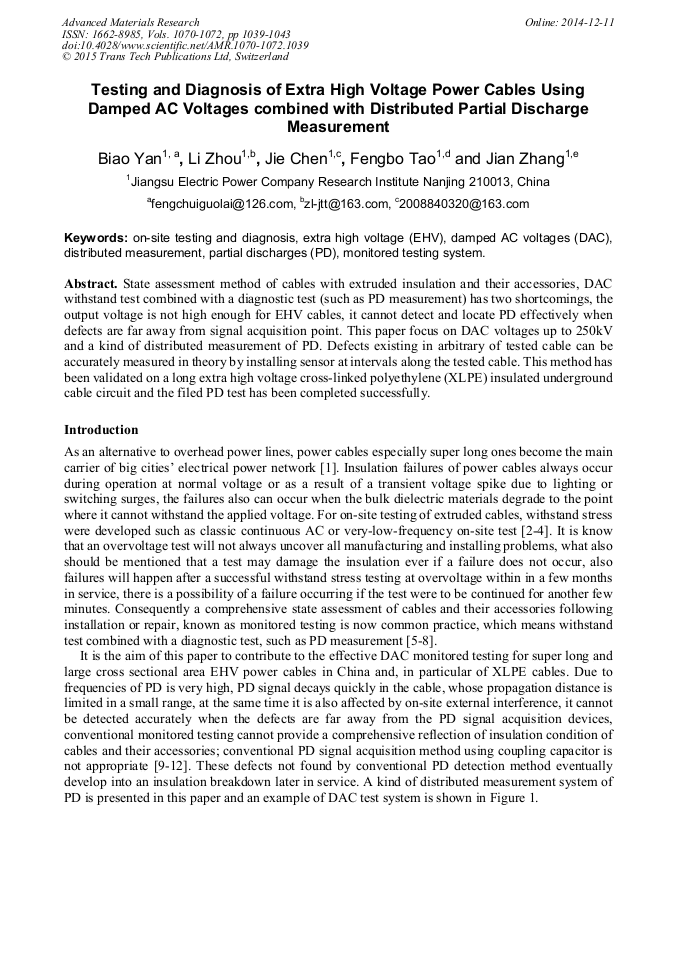

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 1070-1072)

Pages:

1039-1043

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1070-1072.1039

Citation:

Cite this paper

Online since:

December 2014

Authors:

Biao Yan, Li Zhou, Jie Chen, Feng Bo Tao, Jian Zhang

Keywords:

Damped Ac Voltages (DAC), Distributed Measurement, Extra High Voltage (EHV), Monitored Testing System, On-Site Diagnosis, On-Site Testing, Partial Discharge (PD)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] SGCC: The 2009 annual concluding report of cable profession of SGCC (PTD of SGCC Publications, China 2009).

Google Scholar

[2] P. Grönefeld, R. von Olshausen: 4th Int. Symp. High Voltage. Vol. 21 (1983).

Google Scholar

[3] W. Boone, G.C. Damstra, and W.J. Jansen: 5th Int. Symp. High Voltage. Vol. 62 (1987).

Google Scholar

[4] E. Lemke, R. Röding and W. Weißenberg: CIGRE Symp. Vol. 1020 (1987).

Google Scholar

[5] C. Aucourt, W. Boone, and W. Kalkner: CIGRE Symp. Vol. 105 (1990).

Google Scholar

[6] E. Gulski: IEEE Trans. Dielectr. Electr. Insul. Vol. 2 (1995), p.630.

Google Scholar

[7] J. Densley: IEEE Electr. Insul. Mag. Vol. 17 (2001), p.14.

Google Scholar

[8] E. Gulski, P. Cichecki, and F. J. Wester: IEEE Trans. Dielectr. Electr. Insul. Vol. 15 (2008), p.1691.

Google Scholar

[9] S. Boggs, A. Pathak, and P. Walker: IEEE Electr. Insul. Mag. Vol. 12 (1996), p.9.

Google Scholar

[10] GB/T22078. 1: 500kV rated voltage (Um=550kV) XLPE-insulated power cables and their accessories. Part 1: 500kV rated voltage (Um=550kV) XLPE-insulated power cables and their accessories-test methods and requirements (2008).

DOI: 10.3403/30393847

Google Scholar

[11] IEC62067: Power cable with extruded insulation and their accessories for rated voltages above 150kV (Um=170kV) up to 500kV (Um=525kV)-test methods and requirements (2011).

Google Scholar

[12] IEEE400: Guide for field testing and evaluation of the insulation of shielded power cable systems rated 5kV and above (2012).

DOI: 10.1109/ieeestd.2012.6213052

Google Scholar

[13] F.J. Wester, E. Gulski, and J.J. Smith: IEEE Electr. Insul. Mag. Vol. 23 (2007), p.28.

Google Scholar

[14] IEC60060-3: High-voltage test techniques-Part 3: Definitions and test requirements for on-site testing (2006).

Google Scholar

[15] IEC60840: Power cables with extruded insulation and their accessories for rated voltages above 30kV (Um=36kV) up to 150kV (Um=170kV) -Test methods and requirements (2011).

DOI: 10.3403/30290104

Google Scholar
