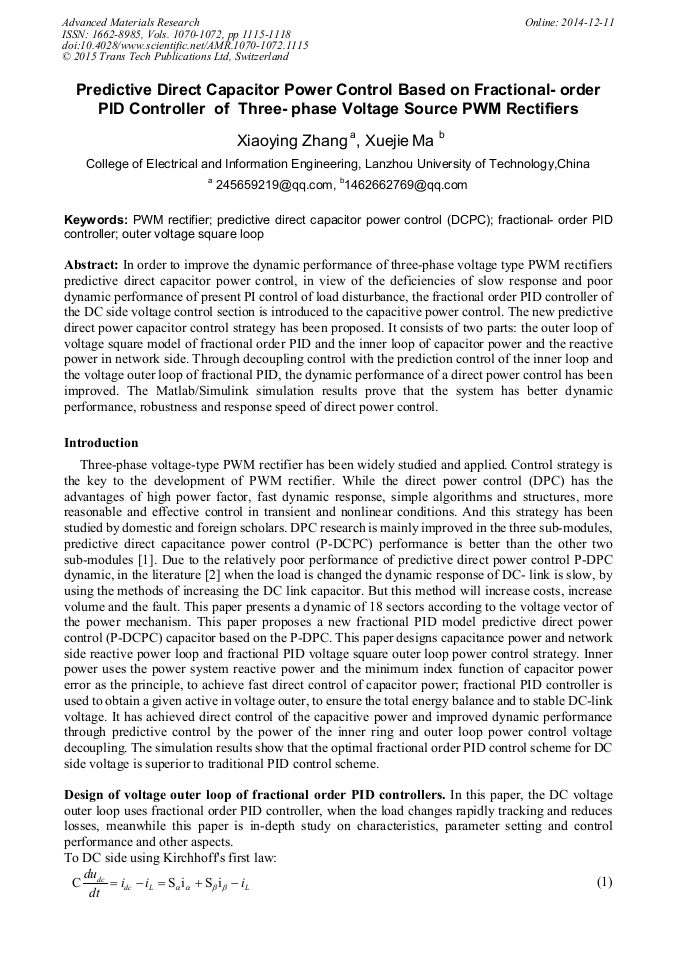

Predictive Direct Capacitor Power Control Based on Fractional-Order PID Controller of Three-Phase Voltage Source PWM Rectifiers

Abstract:

In order to improve the dynamic performance of three-phase voltage type PWM rectifiers predictive direct capacitor power control, in view of the deficiencies of slow response and poor dynamic performance of present PI control of load disturbance, the fractional order PID controller of the DC side voltage control section is introduced to the capacitive power control. The new predictive direct power capacitor control strategy has been proposed. It consists of two parts: the outer loop of voltage square model of fractional order PID and the inner loop of capacitor power and the reactive power in network side. Through decoupling control with the prediction control of the inner loop and the voltage outer loop of fractional PID, the dynamic performance of a direct power control has been improved. The Matlab/Simulink simulation results prove that the system has better dynamic performance, robustness and response speed of direct power control.

• Periodical: Advanced Materials Research (Volumes 1070-1072)
• Pages: 1115-1118
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1070-1072.1115
• Online since: December 2014
• Authors: Xiao Ying Zhang, Xue Jie Ma
• Keywords: Fractional-Order PID Controller, Outer Voltage Square Loop, Predictive Direct Capacitor Power Control (DCPC), PWM Rectifier

References

[1] WAN Jianru, GONG Cheng, LI Kun-peng. Research on predict direct capacitor power control of voltage source PWM rectifier[J]. Power System Protection and Control, 2013 , 41(3): 96-100. (in Chinese).

DOI: 10.1109/isgt-asia.2012.6303391

[2] Zhao R D, He Y K, Liu Q H. Research on improvement of anti-disturbance performance for three phase PWM rectifiers[J]. Transactions of China Electrotechnical Society, 2004, 19(8): 67-72. (in Chinese).

[3] WANG Xuan，ZHANG Xiaofeng，ZHOU Feng，ZHANG Haixia. Direct Power Control Based on Fractional- order PID Controller of Three- phase Voltage Source PWM Rectifier[J]. Electric Drive,. 2013, 43(4): 45-49. (in Chinese).

DOI: 10.1109/ccdc.2014.6852507

[4] Wang Chunyang. Study on Fractional Order PID Controller Design and Parameter Tuning Methods[D]. Jilin: Jilin University, 2013(in Chinese).

[5] Podlubny I. Fractional- order Systems and Controllers［J］. IEEE Transactions on Automatic Control，1999，44（1）: 208－214.
