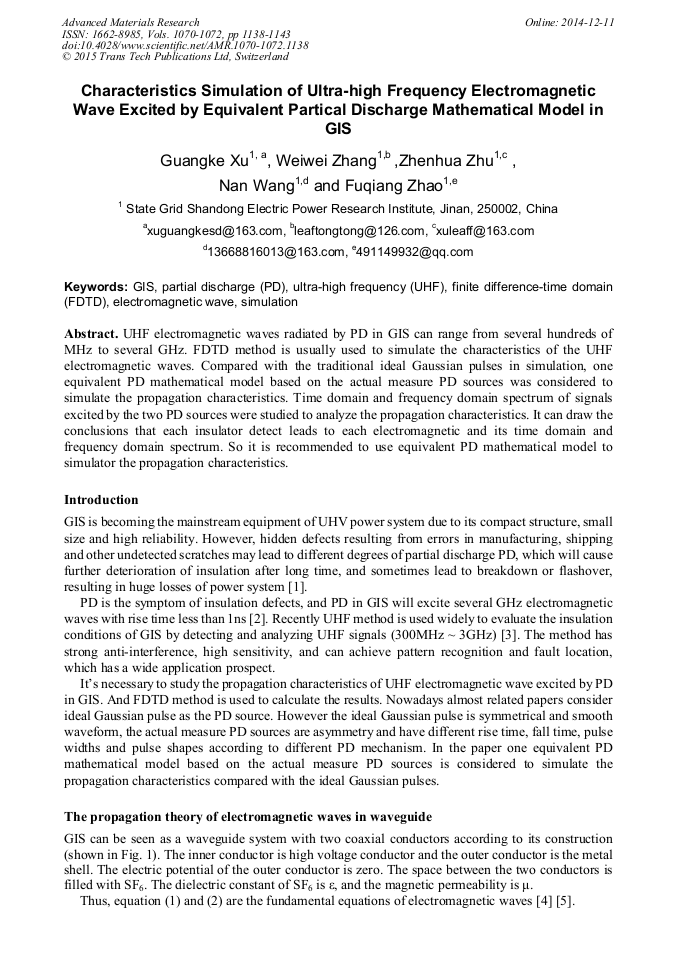

Characteristics Simulation of Ultra-High Frequency Electromagnetic Wave Excited by Equivalent Partical Discharge Mathematical Model in GIS

Abstract:

UHF electromagnetic waves radiated by PD in GIS can range from several hundreds of MHz to several GHz. FDTD method is usually used to simulate the characteristics of the UHF electromagnetic waves. Compared with the traditional ideal Gaussian pulses in simulation, one equivalent PD mathematical model based on the actual measure PD sources was considered to simulate the propagation characteristics. Time domain and frequency domain spectrum of signals excited by the two PD sources were studied to analyze the propagation characteristics. It can draw the conclusions that each insulator detect leads to each electromagnetic and its time domain and frequency domain spectrum. So it is recommended to use equivalent PD mathematical model to simulator the propagation characteristics.

• Periodical: Advanced Materials Research (Volumes 1070-1072)
• Pages: 1138-1143
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1070-1072.1138
• Online since: December 2014
• Authors: Guang Ke Xu*, Wei Wei Zhang, Zhen Hua Zhu, Nan Wang, Fu Qiang Zhao
• Keywords: Electromagnetic Waves (EMW), Finite Difference-Time Domain (FDTD), GIS, Partial Discharge (PD), Simulation, Ultra-High Frequency (UHF)

References

[1] Y. Cheng, X. Xie, Y. Chen, X. Hu and Z. Zhu, Proceedings of the CSEE, Vol. 20, pp.99-102, (2004).

[2] Y. Qiu, High Voltage Apparatus, Vol. 33, pp.36-40, (1997).

[3] B.M. Pryor. Science, Education and Technology Division Colloquium on Partial Discharges in Gas Insulated Substations, London, (1994).

[4] X. Li, C. Li, Y. Li, W. Wang and H. Li , Proceedings of the CSEE, Vol. 25, pp.150-155, (2005).

[5] C. Feng and X. Ma, Beijing: Higher Education Press, (2000).
