Application of a Ternary Zn-Based Solder Alloy for Joining of AZ31B Magnesium Alloy with Ultrasonic Support

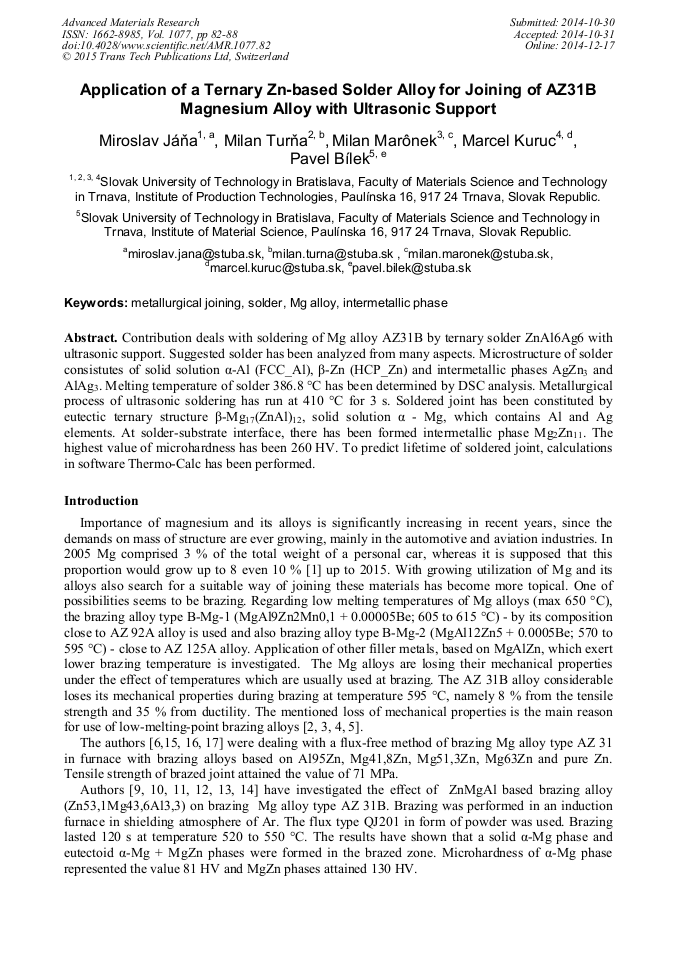

Abstract:

Contribution deals with soldering of Mg alloy AZ31B by ternary solder ZnAl6Ag6 with ultrasonic support. Suggested solder has been analyzed from many aspects. Microstructure of solder consistutes of solid solution α-Al (FCC_Al), β-Zn (HCP_Zn) and intermetallic phases AgZn₃ and AlAg₃. Melting temperature of solder 386.8 °C has been determined by DSC analysis. Metallurgical process of ultrasonic soldering has run at 410 °C for 3 s. Soldered joint has been constituted by eutectic ternary structure β-Mg₁₇(ZnAl)₁₂, solid solution α - Mg, which contains Al and Ag elements. At solder-substrate interface, there has been formed intermetallic phase Mg₂Zn₁₁. The highest value of microhardness has been 260 HV. To predict lifetime of soldered joint, calculations in software Thermo-Calc has been performed.

• Periodical: Advanced Materials Research (Volume 1077)
• Pages: 82-88
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1077.82
• Online since: December 2014
• Authors: Miroslav Jáňa*, Milan Turňa, Milan Marônek, Marcel Kuruc, Pavel Bílek
• Keywords: Intermetallic Phase, Metallurgical Joining, Mg Alloy, Solder

References

[1] HIRSCH, J., AL-SAMMAN, T., 2013. Superior light metals by texture engineering: Optimized aluminium and magnesium alloy for automotive applications. In: ELSEVIER, Acta Materialia 61, pp.818-843.

DOI: 10.1016/j.actamat.2012.10.044

[2] MORDIKE, L., WIESNER, P., 2005. Fügen von Magnesiumwerkstoffen. Hardcover DVS - Verlag für Schweißen und verwandte Verfahren, p.232, ISBN 978-3-87155-199-4.

[3] BENEKE, H., 2000. Lexikon der Korrosion und des Korrosionsschutzes. Vulkan-Verlag. p.259, ISBN 978-3-8027-2918-8.

[4] ROSIN, J., 2011. Löten von Magnesiumwerkstoffen. Verlag: Dr. Hut, p.160, ISBN-10: 3868538852.

[5] FRIEDRICH, H., MORDIKE, L. B., 2004. Magnesium technology. Springer - Verlag Berlin Heidelberg, p.500, ISBN 10: 3540205993.

[6] MATSUDA, N., ISHIKAWA, T., 2007. Hart- und Hochtemperaturlöten und Diffusionsschweißen. DVS-Verlag, p.419, ISBN 978-3-87155-799-6.

[7] KOPELIOVICH, D., 2007. Brazing magnesium alloys and magnesium matrix composites. [on-line]. [cit. 2013‐07‐04], http: /www. substech. com/dokuwiki/doku. php?id=brazing.

[8] WATANABE, T., KOMATSU, S., 2005. Development of flux and filler metal for brazing magnesium alloy AZ 31B. In: Welding Research, WELDING JOURNAL, pp.37-40.

[9] MA, L., He, D. Y., LI, X. Y., JIANG, J. M., 2010. High-frequency induction soldering of magnesium alloy AZ31B using a Zn-Al filler metal. In: Materials Letters 64, pp.596-598.

DOI: 10.1016/j.matlet.2009.12.012

[10] MA, L., HE, D., LI, X., JIANG, J., 2011. Characterization of high-frequency induction brazed magnesium alloy joint with an Al-Mg-Zn filler metal. In: Journal of Materials Engineering and Performance, Vol. 20, pp.219-222.

DOI: 10.1007/s11665-010-9674-5

[11] MA, L., QIAO, P., LONG, W., HE, D., LI, X., 2012. Interface characteristics and mechanical properties of the induction brazed joint of magnesium alloy AZ31B with an Al-based filler metal. In: Materials and Design 37, pp.465-469.

DOI: 10.1016/j.matdes.2012.01.005

[12] MA, L., LONG, W., QIAO, P., He, D., LI, X., 2013. Development of a binary Zn-Based solder alloy for joining wrought magnesium alloy AZ31B. In: Journal of Materials Engineering and Performance, Vol. 22, pp.118-122.

DOI: 10.1007/s11665-012-0241-0

[13] CZERWINSKI, F., 2011. Welding and joining of magnesium alloys. Magnesium alloys - Design, Processing and Properties, pp.470-490, ISBN: 978-953-307-520-4.

DOI: 10.5772/13947

[14] SHAPIRO, A. E., 2005. Brazing magnesium alloys and magnesium matrix composites. Welding Journal, Vol. 84 Issue 10, p.33, ISBN: 18530213.

[15] YONG, Q. CH., ZHEN, H. CH., WEI, J. X., 2007. Effect of crystal orientation on the ductility in AZ31 Mg alloy sheets produced by equal channel angular rolling. Journal of Materials Science, Vol. 42 Issue 10, p.3552.

DOI: 10.1007/s10853-007-1559-0

[16] SATO, Y. S., PARK, S. H. C., MATSUNAGA, A., HONDA, A., KOKAWA, H., 2005. Novel production for highly formable Mg alloy plate. Journal of Materials Science, Vol. 40 Issue 3, p.637.

DOI: 10.1007/s10853-005-6301-1

[17] SPIGARELLI, S., EVANGELISTA, E., El MEHTEDI, M., BALLONI, L., 2007. Mechanical and microstructural aspects of high temperature formability of AZ31 sheets. AIP Conference Proceedings, Vol. 907 Issue 1, p.1305.

DOI: 10.1063/1.2729695
