Study on the Phenolic - Epoxy Resin System

Yong Li Peng; Li Zeng

doi:10.4028/www.scientific.net/AMR.1088.439

Paper Titles

Structure and Properties of Melamine Formaldehyde/Polyvinyl Alcohol (MF-PVA) Composite Fiber by Electrospinning
p.419

Study on Melamine Formaldehyde/Polyvinyl Alcohol Blend Fiber by Electrospinning
p.424

Silicon Electrodeposition on Glassy Carbon, Silver, and Tungsten Substrates
p.429

Synthesis of Polypropylene Strong Acid Cationic Exchange Fiber
p.434

Study on the Phenolic - Epoxy Resin System
p.439

The Performance Study of Waterborne Damping Coating
p.444

Preparation and Characterization of Modified Polylactic Acid-co-Polyethylene Glycol-co-Polylactic Acid Microcapsules Enclosing Cypermethrin
p.449

Study on Environmental-Friendly Waterborne Polyurethane Flame-Retardant Coating Polyester Fabric
p.455

Study on the Modification of Waterborne Polyurethane by Tung Oil Anhydride-Ester Polyol
p.460

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 1088Study on the Phenolic - Epoxy Resin System

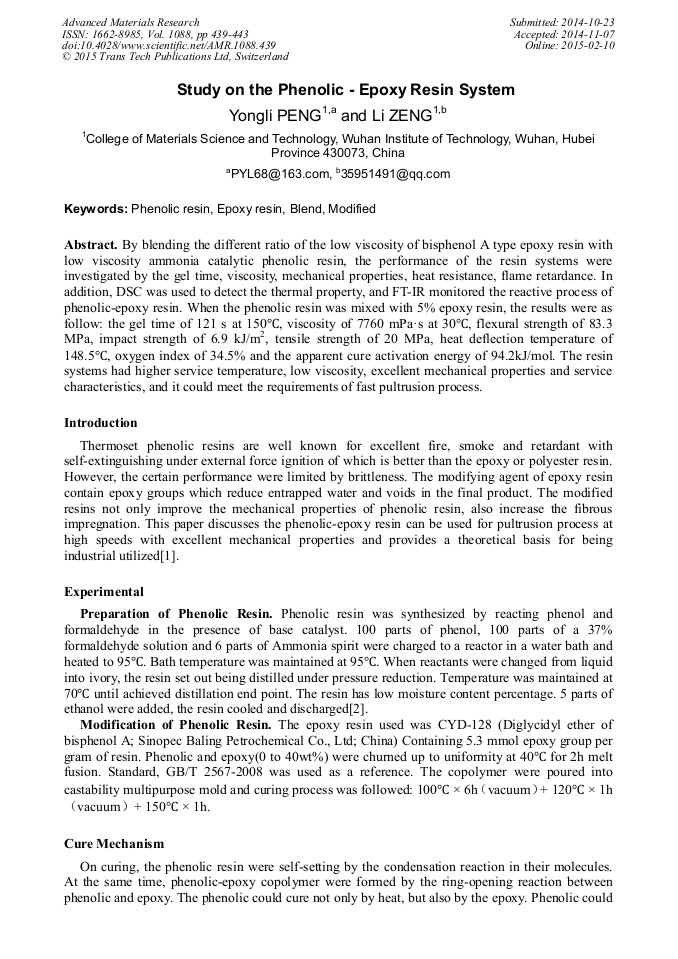

Study on the Phenolic - Epoxy Resin System

Abstract:

By blending the different ratio of the low viscosity of bisphenol A type epoxy resin with low viscosity ammonia catalytic phenolic resin, the performance of the resin systems were investigated by the gel time, viscosity, mechanical properties, heat resistance, flame retardance. In addition, DSC was used to detect the thermal property, and FT-IR monitored the reactive process of phenolic-epoxy resin. When the phenolic resin was mixed with 5% epoxy resin, the results were as follow: the gel time of 121 s at 150°C, viscosity of 7760 mPa·s at 30°C, flexural strength of 83.3 MPa, impact strength of 6.9 kJ/m², tensile strength of 20 MPa, heat deflection temperature of 148.5°C, oxygen index of 34.5% and the apparent cure activation energy of 94.2kJ/mol. The resin systems had higher service temperature, low viscosity, excellent mechanical properties and service characteristics, and it could meet the requirements of fast pultrusion process.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1088)

Pages:

439-443

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1088.439

Citation:

Cite this paper

Online since:

February 2015

Authors:

Yong Li Peng, Li Zeng*

Keywords:

Blend, Epoxy Resin, Modified, Phenolic Resin

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] J.G. Vaughan, E. Lackey and D. Green: American Composites Manufacturers Association Conference (Tampa, Florida USA, October 6-8, 2004), pp.1-6.

Google Scholar

[2] John G. Taylor, Louisville and Ky: U.S. Patent 6, 159, 405. (2000).

Google Scholar

[3] Xiao Yan Zhang: 2012 International Conference on Materials Science and Nanotechnology (Guangzhou, China, November 16-18, 2012). Vol. 531-532(2013), pp.73-78.

Google Scholar

[4] K. P. Unnikrishnan, Eby Thomas Thachil: International Journal Of Polymeric Materials, Vol. 55 (2006) No. 7-9, pp.563-576.

Google Scholar

[5] Rémi Auvergne, Sylvain Caillol and Ghislain David: Chemical Reviews, Vol. 114 (2014) No. 2, p.1082–1115.

Google Scholar

[6] Ha Q. Pham, Maurice J. Marks: Ullmann's Encyclopedia of Industrial Chemistry (Wiley - VCH Verlag GmbH & Co. KGaA, 2005).

Google Scholar

[7] Jungang Gao, Dejuan Kong, Shurong Li, Polymer Composites, Vol. 31 (2010) No. 1, pp.60-67.

Google Scholar
