Effect of MgO and Ag2O Mix-Additions on the Formation and Superconducting Properties of Bi-2223 Phase

X.Y. Lu; D. Yi; H. Chen

doi:10.4028/www.scientific.net/AMR.1096.251

Paper Titles

The Structure and Stability of C₂₀Dimer
p.228

Heat Transfer Model of Larch Bark Particles Pyrolysis
p.232

The Research on Adsorption of MB by SPES Microspheres and SPES Microspheres Wrapping Titanium Dioxide
p.237

Study of Errors on Larch Wood Pyrolysis Kinetic Analysis
p.243

Effect of MgO and Ag₂O Mix-Additions on the Formation and Superconducting Properties of Bi-2223 Phase
p.251

Mechanism of the Indium by Carbothermic Reduction Reaction from Indium Ore in Vacuum
p.256

In Depth Analysis on the Excitation Spectrum of SrS: Eu²⁺, Dy³⁺
p.262

Numerical Analysis of Semi-Solid Die-Casting Automobile Part Based on the Thermo-Visco-Plastic Constitutive Relation
p.268

Research on the Dark Fiber Causes and Variety of the Acidic Fiber Imaging Bundle
p.275

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 1096Effect of MgO and Ag2O Mix-Additions on the...

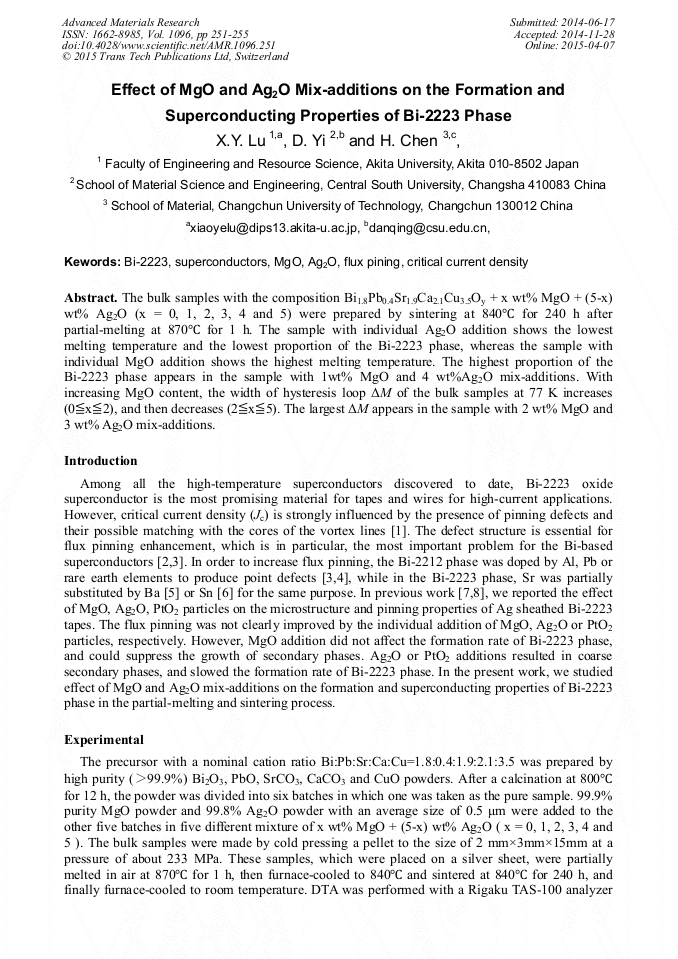

Effect of MgO and Ag₂O Mix-Additions on the Formation and Superconducting Properties of Bi-2223 Phase

Abstract:

The bulk samples with the composition Bi_1.8Pb_0.4Sr_1.9Ca_2.1Cu_3.5O_y + x wt% MgO + (5-x) wt% Ag₂O (x = 0, 1, 2, 3, 4 and 5) were prepared by sintering at 840°C for 240 h after partialmelting at 870°C for 1 h. The sample with individual Ag₂O addition shows the lowest melting temperature and the lowest proportion of the Bi-2223 phase, whereas the sample with individual MgO addition shows the highest melting temperature. The highest proportion of the Bi-2223 phase appears in the sample with 1wt% MgO and 4 wt%Ag₂O mix-additions. With increasing MgO content, the width of hysteresis loop ΔM of the bulk samples at 77 K increases (0≦x≦2), and then decreases (2≦x≦5). The largest ΔM appears in the sample with 2 wt% MgO and 3 wt% Ag₂O mix-additions.
