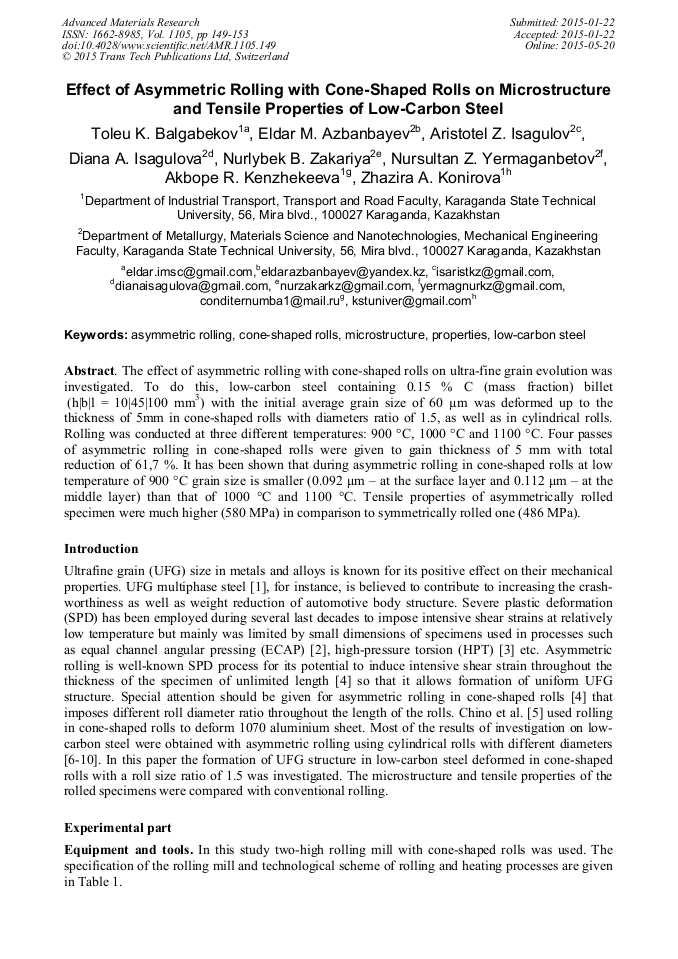

Effect of Asymmetric Rolling with Cone-Shaped Rolls on Microstructure and Tensile Properties of Low-Carbon Steel

Abstract:

The effect of asymmetric rolling with cone-shaped rolls on ultra-fine grain evolution was investigated. To do this, low-carbon steel containing 0.15 % C (mass fraction) billet (h|b|l = 10|45|100 mm³) with the initial average grain size of 60 μm was deformed up to the thickness of 5mm in cone-shaped rolls with diameters ratio of 1.5, as well as in cylindrical rolls. Rolling was conducted at three different temperatures: 900 °C, 1000 °C and 1100 °C. Four passes of asymmetric rolling in cone-shaped rolls were given to gain thickness of 5 mm with total reduction of 61,7 %. It has been shown that during asymmetric rolling in cone-shaped rolls at low temperature of 900 °C grain size is smaller (0.092 μm – at the surface layer and 0.112 μm – at the middle layer) than that of 1000 °C and 1100 °C. Tensile properties of asymmetrically rolled specimen were much higher (580 MPa) in comparison to symmetrically rolled one (486 MPa).

• Periodical: Advanced Materials Research (Volume 1105)
• Pages: 149-153
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1105.149
• Online since: May 2015
• Authors: Toleu K. Balgabekov, Eldar M. Azbanbayev, Aristotel Z. Isagulov, Diana A. Isagulova, Nurlybek B. Zakariya, Nursultan Z. Yermaganbetov, Akbope R. Kenzhekeeva, Zhazira A. Konirova
• Keywords: Asymmetric Rolling, Cone-Shaped Rolls, Low-Carbon Steel, Microstructure, Properties

References

[1] S.H. Whang in: Nanostructured metals and alloys - Processing, microstructure, mechanical properties and applications, chapter 4, Woodhead publishing Limited (2011).

[2] G. Krallics et al.: Proc. Conf. Nanomaterials by Severe Plastic Deformation – NANOSPD2, Vienna, WILEY-VCH Verlag GmbH & Co. KGaA, Weinheim (2004), p.183.

[3] G. Sakai, Z. Horitaa, T.G. Langdon: Mater. Sci. Eng A Vol. 393 (2005), p.344–351.

[4] H. Dyja et al.: J. Mater. Process. Technol. Vol 45 (1994), pp.167-172.

[5] Y. Chino, X. Huang, K. Suzuki, M. Mabuchi: J. Mater. Sci. Technol. Vol. 29 (2013), p.175–179.

[6] K.M. Lee, H.C. Lee: J. Mater. Process. Technol. Vol. 210 (2010), p.1574–1579.

[7] M.H. Cai et al.: Mater. Sci. Eng. A Vol. 583 (2013), p.205–209.

[8] J.J. Gracio et al.: AIP Conf. Proc. Vol. 1252 (2010), pp.181-184.

[9] S. Wroński et al.: Journal of Central South University Vol. 20 (2013), pp.1443-1455.

[10] S. Wroński: Mater. Sci. Forum Vol. 638-642 (2010), pp.2811-2816.

[11] H. Nakajima: Tetsu-to-Hagane Vol. 89 (2003), pp.71-78.
