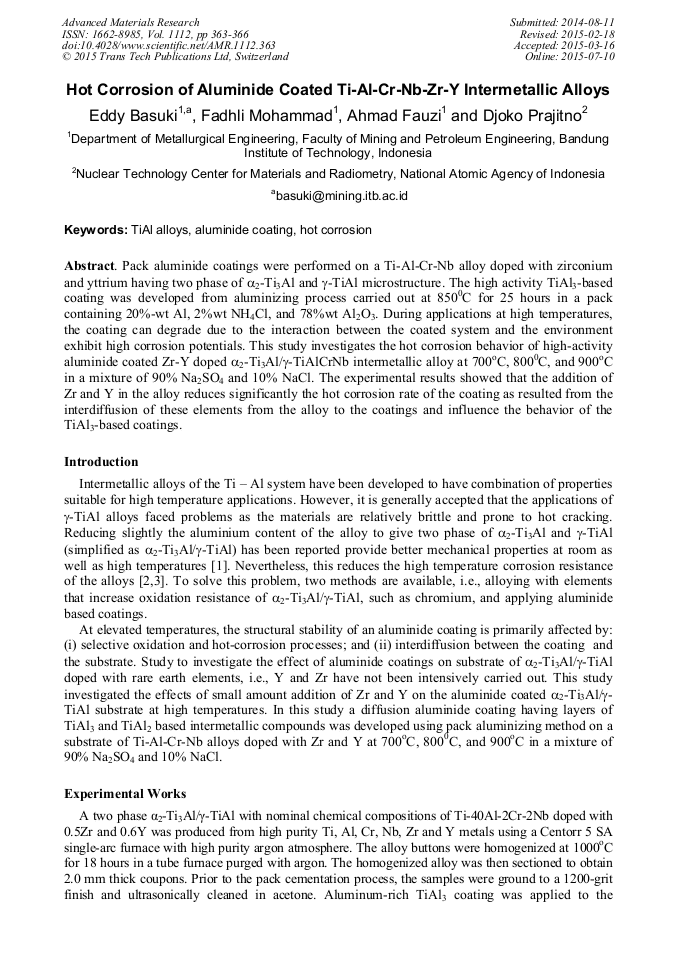

Hot Corrosion of Aluminide Coated Ti-Al-Cr-Nb-Zr-Y Intermetallic Alloys

Abstract:

Pack aluminide coatings were performed on a Ti-Al-Cr-Nb alloy doped with zirconium and yttrium having two phase of a₂-Ti₃Al and g-TiAl microstructure. The high activity TiAl₃-based coating was developed from aluminizing process carried out at 850°C for 25 hours in a pack containing 20%-wt Al, 2%wt NH₄Cl, and 78%wt Al₂O₃. During applications at high temperatures, the coating can degrade due to the interaction between the coated system and the environment exhibit high corrosion potentials. This study investigates the hot corrosion behavior of high-activity aluminide coated Zr-Y doped a₂-Ti₃Al/g-TiAlCrNb intermetallic alloy at 700°C, 800°C, and 900°C in a mixture of 90% Na₂SO₄ and 10% NaCl. The experimental results showed that the addition of Zr and Y in the alloy reduces significantly the hot corrosion rate of the coating as resulted from the interdiffusion of these elements from the alloy to the coatings and influence the behavior of the TiAl₃-based coatings.

• Periodical: Advanced Materials Research (Volume 1112)
• Pages: 363-366
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1112.363
• Online since: July 2015
• Authors: Eddy Basuki*, Fadhli Mohammad, Ahmad Fauzi, Djoko Prajitno
• Keywords: Aluminide Coating, Hot Corrosion, TiAl Alloys

References

[1] M. Thomas and M.P. Bacos, Processing and Characterization of TiAl-based Alloys: Towards an Industrial Scale, The Onera Journal Aerospace Lab, 3 (2011) 1-11.

[2] Z. Tang, F. Wang and W. Wu, Hot Corrosion Behavior of TiAl-Base Intermetallics in Molten Salt, Oxidation of Metals, 51 (314) (1999) 235-250.

[3] W. Zhao, B. Xu, Y. Ma, and S. Gong, Inter-phase Selective Corrosion of γ-TiAl Alloy in Molten Salt Environment at High Temperature, Progress in Natural Science: Materials Internationals. 21 (4) (2011) 322-329.

DOI: 10.1016/s1002-0071(12)60064-1

[4] V.A.C. Haanappel, J.D. Sunderkotter and M.F. Stroosnijder, The Isothermal And Cyclic High Temperature Oxidation Behavior of Ti-48Al-2Mn-2Nb Compared With Ti-48Al-2Cr-2Nb And Ti-48Al-2Cr, Intermetallics. 1999, 529−541.

DOI: 10.1016/s0966-9795(98)00076-4

[5] Y. Xiong, X. Xiong, S. Zhu and F. Wang, Hot Corrosion of Ti-Based Intermetallics With Coatings in NaCl + (Na, K)2SO4 Melts at 750oC, The Open Corrosion Journal, 2 (2009) 157 – 163.

DOI: 10.2174/1876503300902010157

[6] D.C. Alvardo and P.A. Sundaram, A Study of The Corrosion Behavior Of Gamma Titanium Aluminide In 3. 5wt% NaCl Solution and Seawater, Corrosion Science, 49 (2007) 3732−3741.

DOI: 10.1016/j.corsci.2007.04.001

[7] K. Zhang, L.W. Zheng and G. Wei, Hot Corrosion Behavior of Ti-Al Based Intermetallics, Materials Letter, 57 (2002) 834−843.

DOI: 10.1016/s0167-577x(02)00882-0

[8] K. Zhang, G. Wei and L. Jing, Molten Salt Vapor Corrosion of Ti-Al-Ag Intermetallics, Intermetallics, 12 (2004) 539−544.

DOI: 10.1016/j.intermet.2004.01.007

[9] H.L. Du, P.K. Datta and D. Hu, Hot Corrosion Mechanisms of Certain New TiAl-Based Intermetallics, Corrosion Science, 49 (2007) 2406−2420.

DOI: 10.1016/j.corsci.2006.10.037
