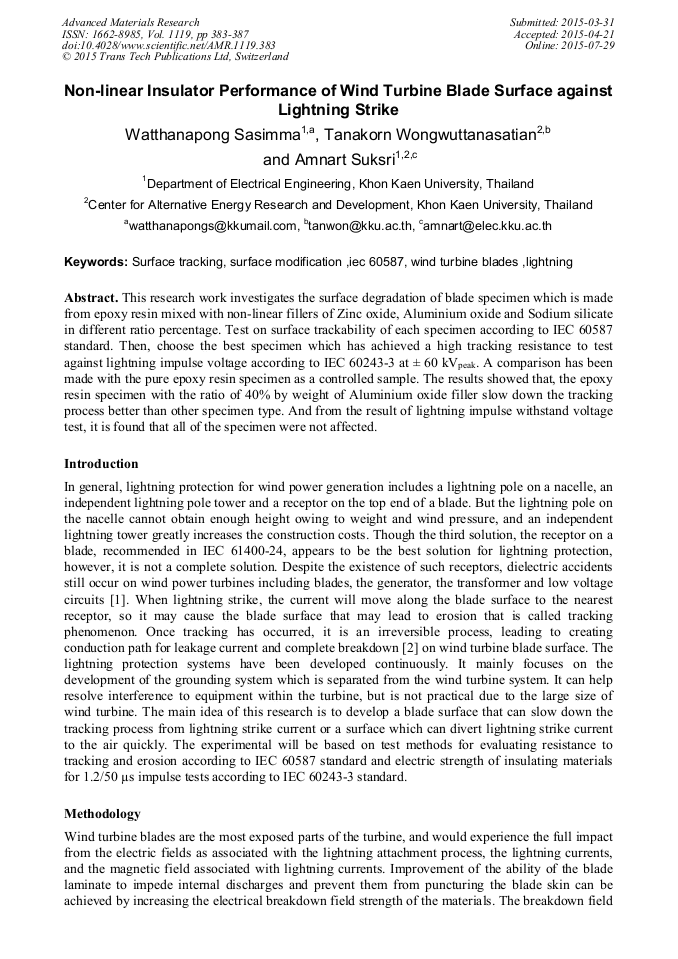

Non-Linear Insulator Performance of Wind Turbine Blade Surface against Lightning Strike

Abstract:

This research work investigates the surface degradation of blade specimen which is made from epoxy resin mixed with non-linear fillers of Zinc oxide, Aluminium oxide and Sodium silicate in different ratio percentage. Test on surface trackability of each specimen according to IEC 60587 standard. Then, choose the best specimen which has achieved a high tracking resistance to test against lightning impulse voltage according to IEC 60243-3 at ± 60 kV_peak. A comparison has been made with the pure epoxy resin specimen as a controlled sample. The results showed that, the epoxy resin specimen with the ratio of 40% by weight of Aluminium oxide filler slow down the tracking process better than other specimen type. And from the result of lightning impulse withstand voltage test, it is found that all of the specimen were not affected.

• Periodical: Advanced Materials Research (Volume 1119)
• Pages: 383-387
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1119.383
• Online since: July 2015
• Authors: Watthanapong Sasimma*, Tanakorn Wongwuttanasatian, Amnart Suksri
• Keywords: Iec 60587, Lightning, Surface Modification, Surface Tracking, Wind Turbine Blades

References

[1] Y. Yoh, in: A new lightning protection system for wind turbines using two ring-shaped electrodes, IEEJ Transactions on Electrical and Electronic Engineering, (2006), pp.314-319.

DOI: 10.1002/tee.20055

[2] A. Suksri and K. Tanmitra, in: Investigation on Surface Degradation of Modified Polymeric Electrical InsulationTested via Inclined Plane Tracking Method, Proc. Electrical/Electronics, Computer, Telecommunicationsand Information Technology (ECTI) International Conference, May 12-13, Pattaya, Thailand, (2005).

[3] International Electrotechnical Commission, IEC 61400-24 Wind turbine– Part 24: Lightning protection, IEC publications, Switzerland, (2010), pp.29-32.

[4] W. Tillar Shugg: Handbook of Electrical and Electronic Insulating Materials, Second Edition, The institute of Electrical and Electronics Engineering, Inc., New York, (1995), pp.126-127.

[5] International Electrotechnical Commission, IEC 60587 Electrical insulating materials used under severe ambient conditions – Test methods for evaluating resistance to tracking and erosion, IEC publications, Switzerland, (2007), p.11.

DOI: 10.3403/30366448

[6] R. B. Abernethy, The New Weibull Handbook, fifth edition, Published and distributed by Robert B. Abernethy, Florida, (2010), pp.2-2.

[7] ReliaSoft Corporation, Information on: http: /weibull. reliasoft. com.
