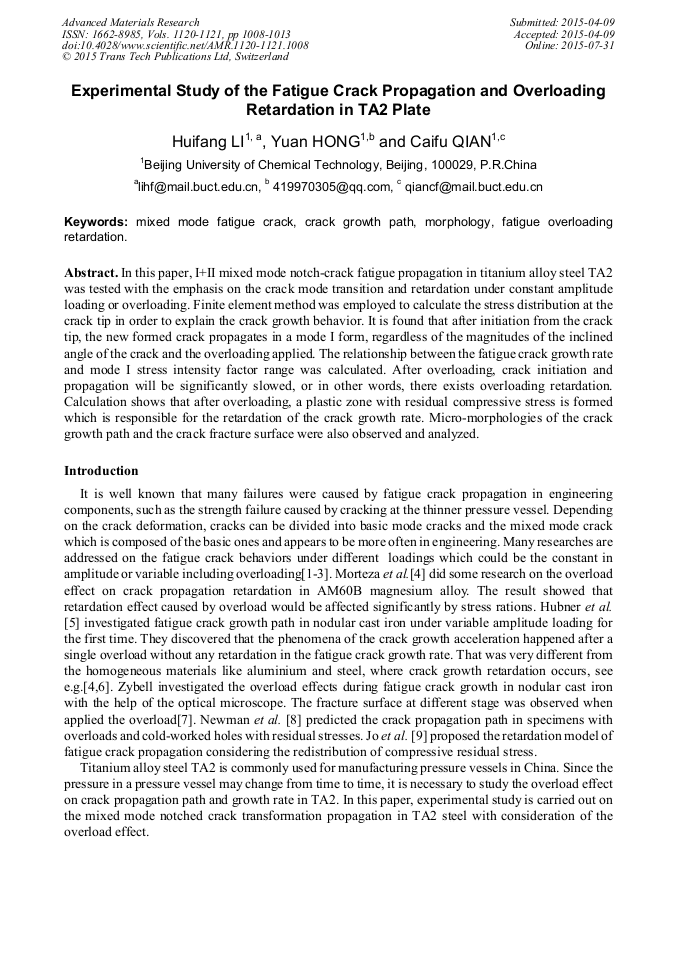

Experimental Study of the Fatigue Crack Propagation and Overloading Retardation in TA2 Plate

Abstract:

In this paper, I+II mixed mode notch-crack fatigue propagation in titanium alloy steel TA2 was tested with the emphasis on the crack mode transition and retardation under constant amplitude loading or overloading. Finite element method was employed to calculate the stress distribution at the crack tip in order to explain the crack growth behavior. It is found that after initiation from the crack tip, the new formed crack propagates in a mode I form, regardless of the magnitudes of the inclined angle of the crack and the overloading applied. The relationship between the fatigue crack growth rate and mode I stress intensity factor range was calculated. After overloading, crack initiation and propagation will be significantly slowed, or in other words, there exists overloading retardation. Calculation shows that after overloading, a plastic zone with residual compressive stress is formed which is responsible for the retardation of the crack growth rate. Micro-morphologies of the crack growth path and the crack fracture surface were also observed and analyzed.

• Periodical: Advanced Materials Research (Volumes 1120-1121)
• Pages: 1008-1013
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1120-1121.1008
• Online since: July 2015
• Authors: Hui Fang Li, Yuan Hong, Cai Fu Qian
• Keywords: Crack Growth Path, Fatigue Overloading Retardation, Mixed Mode Fatigue Crack, Morphology

References

[1] J.R. Yates, M. Zhangneh , R.A.,R.A. Tomlinson , M. W Brown., F.A. Diaz Garrindo, Crack paths under mixed mode loading, Eng Fract Mech 75(2008): 319–330.

DOI: 10.1016/j.engfracmech.2007.05.014

[2] M. Skorupa Load interaction effects during fatigue crack growth under variable amplitude loading, Fatigue Fract Eng Mater Struct 22(1998) 905–926.

DOI: 10.1046/j.1460-2695.1999.00158.x

[3] J.M. Lee , B.H. Choi. Experimental observation and modeling of the retardation of fatigue crack propagation under the combination of mixed-mode single overload and constant amplitude loads, Int J Fatigue 31 (2009) 1848–1857.

DOI: 10.1016/j.ijfatigue.2009.01.022

[4] Morteza Mehrzadi, Farid Taheri. Influence of an overload applied within compressive base-line loading on crack propagation retardation in AM60B magnesium alloy, Mater Sci & Eng A, 595 (2014) 213–223.

DOI: 10.1016/j.msea.2013.12.009

[5] P. Hubner, H. Schlosser, G. Pusch, H. Biermann , Load history effects in ductile cast iron for wind turbine components, Int J Fatigue 29(2007) 1788–96.

DOI: 10.1016/j.ijfatigue.2007.01.012

[6] M. Sander, H. Richard, Fatigue crack growth under variable amplitude loading Part I: Experimental investigations, Fatigue Fract Eng Mater Struct 29 (2006) 291–301.

DOI: 10.1111/j.1460-2695.2006.00992.x

[7] L. Zybell, H. Chaves, M. Kuna, T. Mottitschka, G. Pusch, H. Biermann, Optical in situ investigations of overload effects during fatigue crack growth in nodular cast iron. Eng Fract Mech 95 (2012) 45–56.

DOI: 10.1016/j.engfracmech.2012.01.006

[8] J.C. Newman Jr., S.R. Daniewicz. Predicting crack growth in specimens with overloads and cold-worked holes with residual stresses. Eng Fract Mech 127 (2014) 252–266.

DOI: 10.1016/j.engfracmech.2014.06.012

[9] Y. C. Jo, J.K. Bang, , H.C. Song, C.D. Jang, Analysis of the retardation in fatigue crack propagation considering the redistribution of residual stress induced by overload. Proceedings of the International Offshore and Polar Engineering Conference, pp.3452-3455, (2007).
