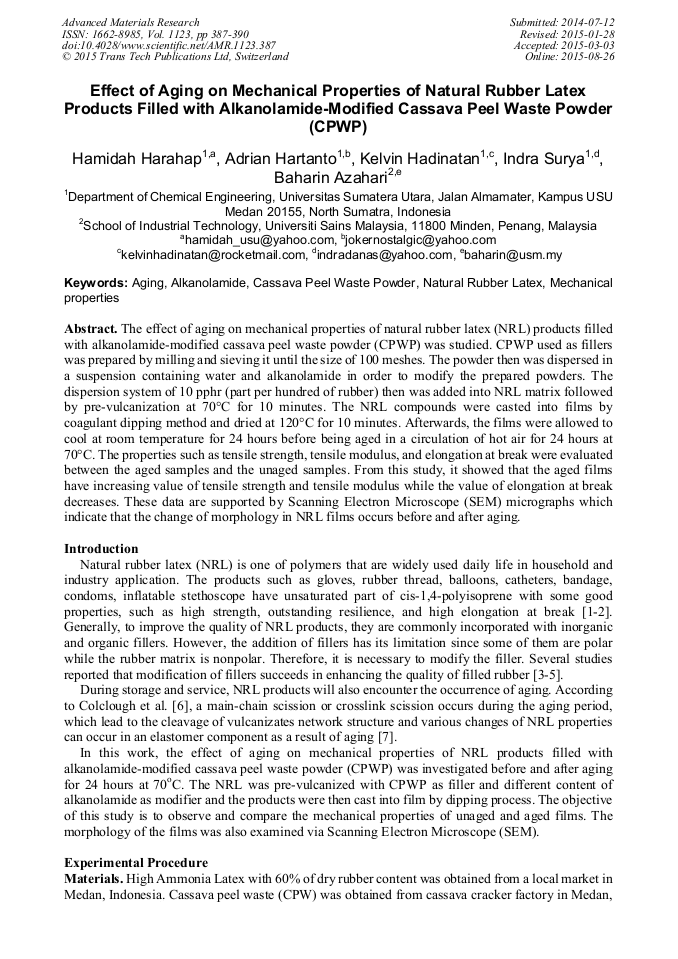

Effect of Aging on Mechanical Properties of Natural Rubber Latex Products Filled with Alkanolamide-Modified Cassava Peel Waste Powder (CPWP)

Abstract:

The effect of aging on mechanical properties of natural rubber latex (NRL) products filled with alkanolamide-modified cassava peel waste powder (CPWP) was studied. CPWP used as fillers was prepared by milling and sieving it until the size of 100 mesh. The powder then was dispersed in a suspension containing water and alkanolamide in order to modify the prepared powders. The dispersion system of 10 pphr (part per hundred rubber) then was added into NRL matrix followed by pre-vulcanization at 70°C for 10 minutes. The NRL compound then were casted into films by coagulant dipping method then dried at 120°C for 10 minutes. Afterwards, the films were allowed to cool at room temperature for 24 hours before being aged in a circulation of hot air for 24 hours at 70°C. The properties such as tensile strength, tensile modulus, and elongation at break were evaluated between the aged samples and the unaged samples. From this study, it showed that the aged films have increasing value of tensile strength and tensile modulus while the value of elongation at break decreases. These datas are supported by Scanning Electron Microscope (SEM) micrographs which indicate that the change of morphology in NRL films occurs before and after aging.

• Periodical: Advanced Materials Research (Volume 1123)
• Pages: 387-390
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1123.387
• Online since: August 2015
• Authors: Hamidah Harahap*, Adrian Hartanto, Kelvin Hadinatan, Indra Surya, Baharin Azahari
• Keywords: Aging, Alkanolamide, Cassava Peel Waste Powder, Mechanical Property, Natural Rubber Latex

References

[1] C. Nakason, A. Kaesaman, K. Eardrod, Cure and mechanical properties of natural rubber-g-poly(methyl methacrylate)-cassava starch compounds, Mat. Lett. 59(29) (2005) 4020-4025.

DOI: 10.1016/j.matlet.2005.07.057

[2] A. Temel, R. Schaller, M. Hochtl, W. Kern, Determination of residual vulcanization accelerators in natural rubber latex films using ftir spectroscopy, Rub. Chem. Technol. 78(1) (2005) 28-41.

DOI: 10.5254/1.3547871

[3] S. Varghese, J. Karger-Kocsis, Melt-compounded natural rubber nanocomposites with piristine and organophilic layered silicates of natural and synthetic origin, J. Appl. Polym. Sci. 91 (2004) 813-819.

DOI: 10.1002/app.13173

[4] W.S. Kim, S.H. Jang, Y.G. Kang, M.H. Han, K. Hyun, W. Kim, Morphology and dynamic mechanical properties of styrene-butadiene rubber/silica/organoclay nanocomposites manufactured by a latex method, J. Appl. Polym. Sci. 128 (2012) 2344-2349.

DOI: 10.1002/app.38253

[5] A. Saritha, K. Joseph, S. Thomas, R. Muraleekrishnan, The role of surfactant type and modifier concentration in tailoring the properties of chlorobutyl rubber/ organo clay nanocomposites, J. Appl. Polym. Sci. 124 (2011) 4590-4597.

DOI: 10.1002/app.35491

[6] T. Colclough, J.I. Cunneen, G.M.C. Higgins, Oxidative aging of natural rubber vulcanizates, part III. crosslink scission in monosulfidic networks, J. Appl. Polym. Sci. 12 (1968) 295-307.

DOI: 10.1002/app.1968.070120205

[7] A.R. Azura, S. Ghazali, M. Mariatti, Effects of the filler loading and aging-time on the mechanical and electrical conductivity properties of carbon black filled natural rubber, J. Appl. Polym. Sci. 110 (2008) 747-752.

DOI: 10.1002/app.28517

[8] I. Surya, H. Ismail, A.R. Azura, Alkanolamide as an accelerator, filler-dispersant and a plasticizer in silica-filled natural rubber compounds, Polym. Test 32 (2013) 1313-1321.

DOI: 10.1016/j.polymertesting.2013.07.015

[9] C. Mei, W. Yong-Zhou, L. Guang, W. Xiao-Ping, Effects of different drying methods on the microstructure and thermal oxidative aging resistance of natural rubber, J. Appl. Polym. Sci. 126 (2012) 1808-1813.

DOI: 10.1002/app.34300

[10] H. Ismail, K. Muniandy, N. Othman, Fatigue lige, morhological studies, and thermal aging of rattan powder-filled natural rubber composites as a function of filler loading and a silane coupling agent, BioResources 7(1) (2012) 841-858.

DOI: 10.15376/biores.7.1.841-858

[11] V.S. Vinod, S. Varghese, B. Kuriakose, Degradation behaviour of natural rubber-aluminium powder composites: effect of heat, ozone, and high energy radiation, Polym. Degrad. Stabil. 75 (2002) 405-412.

DOI: 10.1016/s0141-3910(01)00228-2

[12] A.S. Deuri, A.K. Bhomwick, Aging of EPDM rubber, J. Appl. Polym. Sci. 34 (1987) 2205-2222.

DOI: 10.1002/app.1987.070340613
