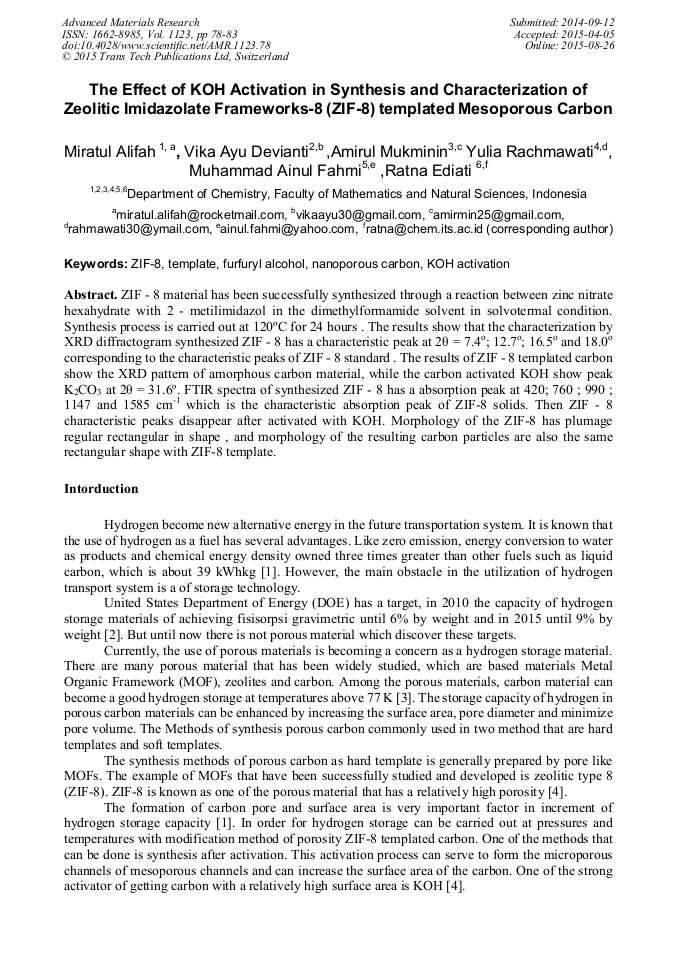

The Effect of KOH Activation in Synthesis and Characterization of Zeolitic Imidazolate Frameworks-8 (ZIF-8) Templated Mesoporous Carbon

Abstract:

ZIF - 8 material has been successfully synthesized through a reaction between zinc nitrate hexahydrate with 2 - metilimidazol in the dimethylformamide solvent in solvotermal condition. Synthesis process is carried out at 120oC for 24 hours . The results show that the characterization by XRD diffractogram synthesized ZIF - 8 has a characteristic peak at 2θ = 7.4^o; 12.7^o; 16.5^o and 18.0^o corresponding to the characteristic peaks of ZIF - 8 standard . The results of ZIF - 8 templated carbon show the XRD pattern of amorphous carbon material, while the carbon activated KOH show peak K₂CO₃ at 2θ = 31.6o. FTIR spectra of synthesized ZIF - 8 has a absorption peak at 420; 760 ; 990 ; 1147 and 1585 cm^-1 which is the characteristic absorption peak of ZIF-8 solids. Then ZIF - 8 characteristic peaks disappear after activated with KOH. Morphology of the ZIF-8 has plumage regular rectangular in shape , and morphology of the resulting carbon particles are also the same rectangular shape with ZIF-8 template.

You might also be interested in these eBooks

Advanced Materials Science and Technology II

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1123)

Pages:

78-83

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1123.78

Citation:

Cite this paper

Online since:

August 2015

Authors:

Miratul Alifah, Vika Ayu Devianti, Amirul Mukminin, Yulia Rachmawati, Muhammad Ainul Fahmi, Ratna Ediati*

Keywords:

Furfuryl Alcohol, KOH Activation, Nanoporous Carbon, Template, ZIF-8

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] A. C. Dillon, K. M. Jones, T. A. Bekkedahl, C. H. Kiang and M. J. Haben, Storage of Hydrogen in Single-Walled Carbon Nanotubes, Nature 386 (1997) 377-379.

DOI: 10.1038/386377a0

Google Scholar

[2] K.M. Thomas, Hydrogen Adsorption and Storage on Porous Materials, Catalysis Today 120 (2007) 389-398.

DOI: 10.1016/j.cattod.2006.09.015

Google Scholar

[3] K. -H. Chung, High-pressure hydrogen storage on microporous zeolites with varying pore properties, Energy 35 (2010) 2235-2241.

DOI: 10.1016/j.energy.2010.02.010

Google Scholar

[4] A. Almasoudi and R. Mokaya, Preparation and hydrogen storage capacity of templated and activated carbons nanocast from commercially available zeolitic imidazolate framework, Journal of Materials Chemistry 56 (2011) 120-129.

DOI: 10.1039/c1jm13314d

Google Scholar

[5] Y. M. Pak, P. Cubillias, M. W. Anderson and M. P. Attfiel, Revelation of the Molecular Assembly of the Nanoporous Metal Organic Framework ZIF-8, Journal of the American Chemical Society 133 (2011) 13304-13307.

DOI: 10.1021/ja205900f

Google Scholar

[6] Y. A. Sulistiyo, R. Ediati dan M. Nadjib, Sintesis dan Karakterisasi Zeolitic Imidazolate Frameworks Tipe 8 (ZIF-8) dengan Metode Solvotermal, in Prosiding Seminar Nasional Kimia XIII, Jurusan Kimia FMIPA ITS, Surabaya, 2013, pp. C35-39.

DOI: 10.24817/jkk.v35i1.1871

Google Scholar

[7] H. Jiang, B. Liu, Y. Lan, K. Kuratani, T. Akita, H. Shioyama, F. Zong and Q. Xu, From Metal-Organic Framework to Nanoporous Carbon: Toward a Very High Surface Area and Hydrogen Uptake, Journal of the American Chemical Society 133 (2011).

DOI: 10.1021/ja203184k

Google Scholar

[8] N. Liu, L. Yin, L. Kang, X. Zhao, C. Wang, L. Zhang, D. Xiang, R. Gao., Y. Qi and N. Lun, Enhanced electrochemical hydrogen storage capacity of activated mesoporous carbon materials containing nickel inclusions, International Journal of Hydrogen Energy 35 (2010).

DOI: 10.1016/j.ijhydene.2010.08.099

Google Scholar

[9] Y. A. Sulistiyo, Sintesis dan Karakterisasi Zeolitic Imidazolate Framework 8 (ZIF-8) dan Karbon Nanopori dengan Templat ZIF-8, Magister Tesis, Institut Teknologi Sepuluh Nopember, (2013).

Google Scholar

[10] J. Dııaz-Teraan, D. M. Nevskaya, A. Lopez-Peinado and A. Jerez, Porosity and adsorption properties of an activated charcoal, Colloids and Surfaces A 187-188 (2001) 167–175.

DOI: 10.1016/s0927-7757(01)00622-7

Google Scholar

[11] M. J. C. Ordoñez, K. J. Balkus, J. P. Ferraris, and I. H. Musselman, Molecular sieving realized with ZIF-8/Matrimid mixed-matrix membranes, Journal of Membrane Science 361 (2010) 28–37.

DOI: 10.1016/j.memsci.2010.06.017

Google Scholar
