Influence of Ion Irradiated Recycled Polyethylene on Physical Properties of Bituminous Binder

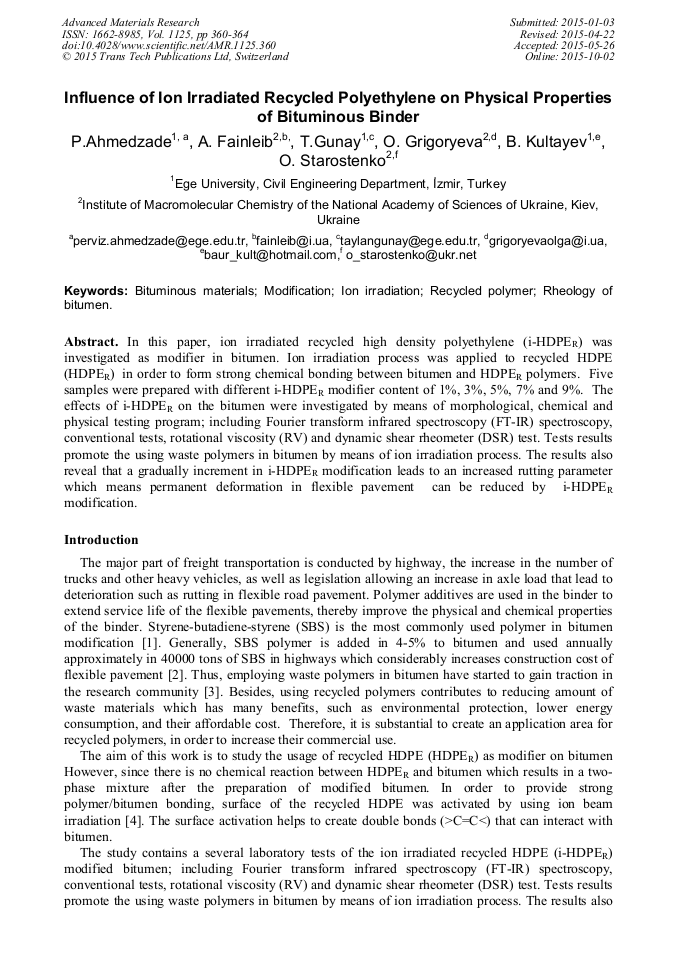

Article Preview

Abstract:

In this paper, ion irradiated recycled high density polyethylene (i-HDPER) was investigated as modifier in bitumen. Ion irradiation process was applied to recycled HDPE (HDPER) in order to form strong chemical bonding between bitumen and HDPER polymers. Five samples were prepared with different i-HDPER modifier content of 1%, 3%, 5%, 7% and 9%. The effects of i-HDPER on the bitumen were investigated by means of morphological, chemical and physical testing program; including Fourier transform infrared spectroscopy (FT-IR) spectroscopy, conventional tests, rotational viscosity (RV) and dynamic shear rheometer (DSR) test. Tests results promote the using waste polymers in bitumen by means of ion irradiation process. The results also reveal that a gradually increment in i-HDPER modification leads to an increased rutting parameter which means permanent deformation in flexible pavement can be reduced by i-HDPER modification.

You might also be interested in these eBooks
Materials, Industrial, and Manufacturing Engineering Research Advances 2 View Preview

Info:

Periodical:

Advanced Materials Research (Volume 1125)

Pages:

360-364

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.1125.360

Citation:

Cite this paper

Online since:

October 2015

Authors:

Perviz Ahmedzade*, Alexander Fainleib, Taylan Günay, Olga Grigoryeva, Baurzhan Kultayev, Olga Starostenko

Keywords:

Bituminous Materials, Ion Irradiation, Modification, Recycled Polymer, Rheology of Bitumen

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2015 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] X.H. Lu, U. Isacsson, Modification of road bitumens with thermoplastic polymers, Polym Test. 20(1) (2001) 77-86.

DOI: 10.1016/s0142-9418(00)00004-0

Google Scholar

[2] D. Whiteoak, The Shell bitumen handbook, Shell Bitumen, London, (1991).

Google Scholar

[3] M. Garcia-Morales , P. Partal, F.J. Navarro, C. Gallegos, Effect of waste polymer addition on the rheology of modified bitumen, Fuel,; 85(7-8) (2006) 936-943.

DOI: 10.1016/j.fuel.2005.09.015

Google Scholar

[4] Y.H. Gad, M.M. Magida, H.H. El-Nahas, Effect of ionizing irradiation on the thermal blend of waste low density polyethylene/ethylene vinyl acetate/bitumen for some industrial applications. J Ind Eng Chem. 16(6) (2010) 1019-1024.

DOI: 10.1016/j.jiec.2010.09.006

Google Scholar

[5] G. D. Airey, B. Rahimzadeh, A.C. Collop linear viscoelastic limits of bituminous binders (with discussion), J. of the Ass. of Asp. Paving Tech. 71 (2002) 89-115.

Google Scholar

[6] H.S. Mansur, C.M. Sadahira, A.N. Souza, A.A. P Mansur, FTIR spectroscopy characterization of poly (vinyl alcohol) hydrogel with different hydrolysis degree and chemically crosslinked with glutaraldehyde. Mat. Sci. and Eng. 28(4) (2008) 539-48.

DOI: 10.1016/j.msec.2007.10.088

Google Scholar

[7] B. Sengoz, A. Topal , G. Isikyakar, Morphology and image analysis of polymer modified bitumens. Const. and Buil. Mat. 23(5) (2009)1986-92.

DOI: 10.1016/j.conbuildmat.2008.08.020

Google Scholar

[8] G.D. Airey, Rheological evaluation of ethylene vinyl acetate polymer modified bitumens. Cons. and Buil. Mat. 16(8) (2002) 473-87.

DOI: 10.1016/s0950-0618(02)00103-4

Google Scholar
