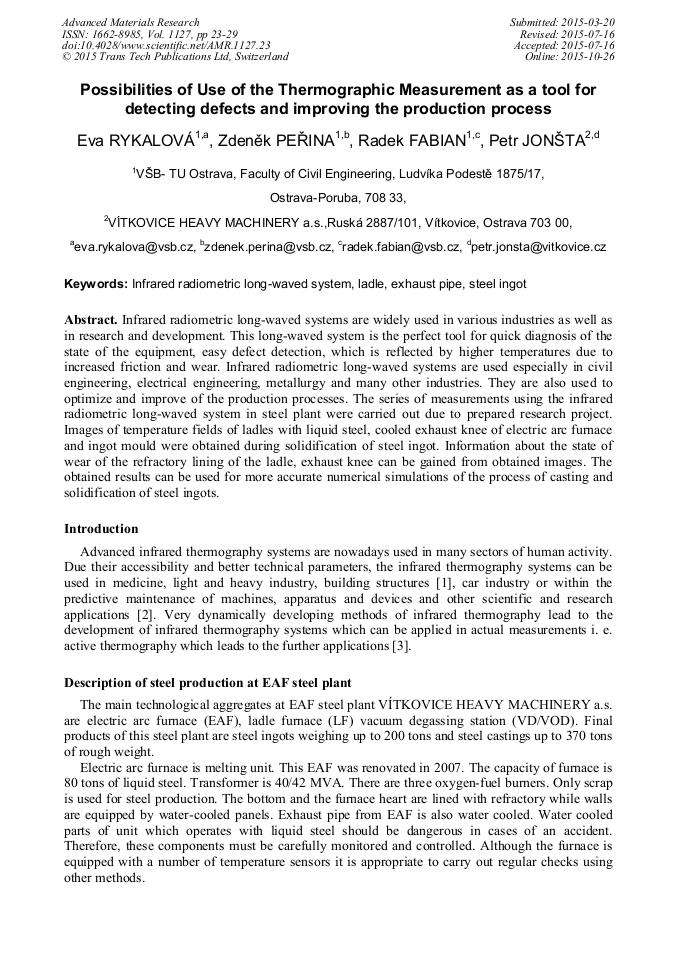

Possibilities of Use of the Thermographic Measurement as a Tool for Detecting Defects and Improving the Production Process

Abstract:

Infrared radiometric long-waved systems are widely used in various industries as well as in research and development. This long-waved system is the perfect tool for quick diagnosis of the state of the equipment, easy defect detection, which is reflected by higher temperatures due to increased friction and wear. Infrared radiometric long-waved systems are used especially in civil engineering, electrical engineering, metallurgy and many other industries. They are also used to optimize and improve of the production processes. The series of measurements using the infrared radiometric long-waved system in steel plant were carried out due to prepared research project. Images of temperature fields of ladles with liquid steel, cooled exhaust knee of electric arc furnace and ingot mould were obtained during solidification of steel ingot. Information about the state of wear of the refractory lining of the ladle, exhaust knee can be gained from obtained images. The obtained results can be used for more accurate numerical simulations of the process of casting and solidification of steel ingots.

• Periodical: Advanced Materials Research (Volume 1127)
• Pages: 23-29
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.1127.23
• Online since: October 2015
• Authors: Eva Rykalová*, Zdeněk Peřina, Radek Fabian, Petr Jonšta
• Keywords: Exhaust Pipe, Infrared Radiometric Long-Waved System, Ladle, Steel Ingot

References

[1] FABIAN, R., PEŘINA, Z., ČMIEL, F., RYKALOVÁ, E. The Evaluation of Different Variants of the Implemented Measures to Eliminate the Influence of the Selected Thermal Bridge by Means of Diagnostic Measurements. International Journal of Civil and Environmental Engineering, 2013, roč. 35, č. 2, s. 1181-1191.

[2] PEŘINA, Z., SOLAŘ, J., ČMIEL, F., FABIAN, R. The Elimination of Reflected Radiation in an Infrared Thermographic Measurement in the Exterior. In Proceedings of the Conference on the Rehabilitation and Reconstruction of Buildings CRRB 2013: selected, peer reviewed papers from the conference CRRB 2013: November 14-15, 2013, Prague, Czech Republic. Uetikon-Zuerich: Trans Tech Publications, 2014, pp.187-190.

DOI: 10.4028/www.scientific.net/amr.923.187

[3] PEŘINA, Z., PLŠEK, B., WOLFOVÁ, M.: Verification of Range of Chemical Grouting of Masonry by Non-Destructive Method Using Infrared Thermography. Proceedings of the Conference on the Rehabilitation and Reconstruction of Buildings CRRB 2013: selected, peer reviewed papers from the conference ..: November 14-15, 2013, Prague, Czech Republic, Trans Tech Publications, 2014, s. 191-194. 978-3-03835-083-5.

DOI: 10.4028/www.scientific.net/amr.923.191

[4] TKADLEČKOVÁ M., MACHOVČÁK P., GRYC K., KLUS P., MICHALEK K., SOCHA L., KOVÁČ M.: Setting a Numerical Simulation of Filling and Solidification of Heavy Steel Ingots based on Real Casting Conditions. In Materiali in tehnologie, 2012, Volume 46, No. 4, pp.399-402.

DOI: 10.2478/v10172-012-0169-2

[5] MACHOVČÁK P., OPLER A., CARBOL Z., TREFIL A., MERTA K., ZAORAL J., TKADLEČKOVÁ M., MICHALEK K.: Evaluation of chemical heterogeneity of a 90-ton forging ingot. In Archives of Materials Science and Engineering, 2012, Volume 58, Issue 1, pp.22-27.

[6] SMETANA B., ŽALUDOVÁ M., TKADLEČKOVÁ M., DOBROVSKÁ J., ZLÁ S., GRYC K., KLUS P., MICHALEK K., MACHOVČÁK P., ŘEHÁČKOVÁ L.: Experimental verification of hematite ingot mould heat capacity and its direct utilisation in simulation of casting proces. In Journal of Thermal Analysis and Calorimetry, 2013, Vol. 111, ISSN: 1388-6150 (Print), ISSN: 1572-8943 (online). DOI 10. 1007/s10973-013-2964-z.

DOI: 10.1007/s10973-013-2964-z
