Effects of Thermal Exposure on Low Cycle Fatigue Behavior of Ti600 Titanium Alloy

Teng Yu; Lei Wang; Yong Qing Zhao; Yang Liu

doi:10.4028/www.scientific.net/AMR.118-120.611

Paper Titles

The Determine Method of Maintenance Strategy for Multi-State System
p.591

Research on Spurious Trip of 1oo2 Safety Instruments of Petrochemical Installation with Repair Considered
p.596

Estimation of Failure Probability and its Applications in Reliability Data Analysis
p.601

Step-Stress Accelerated Random Vibration Life Testing
p.606

Effects of Thermal Exposure on Low Cycle Fatigue Behavior of Ti600 Titanium Alloy
p.611

Life Prediction of Constant-Stress Accelerated Degradation Testing Using Time Series Method and Grey Theory
p.616

Modeling for Time-Variant Reliability of Mechanism
p.621

The Current Status of Process Planning for Multi-Material Rapid Prototyping Fabrication
p.625

Fatigue Life Evaluation of Unstiffined Aluminum Panels with Multiple Site Damage
p.630

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 118-120Effects of Thermal Exposure on Low Cycle Fatigue...

Effects of Thermal Exposure on Low Cycle Fatigue Behavior of Ti600 Titanium Alloy

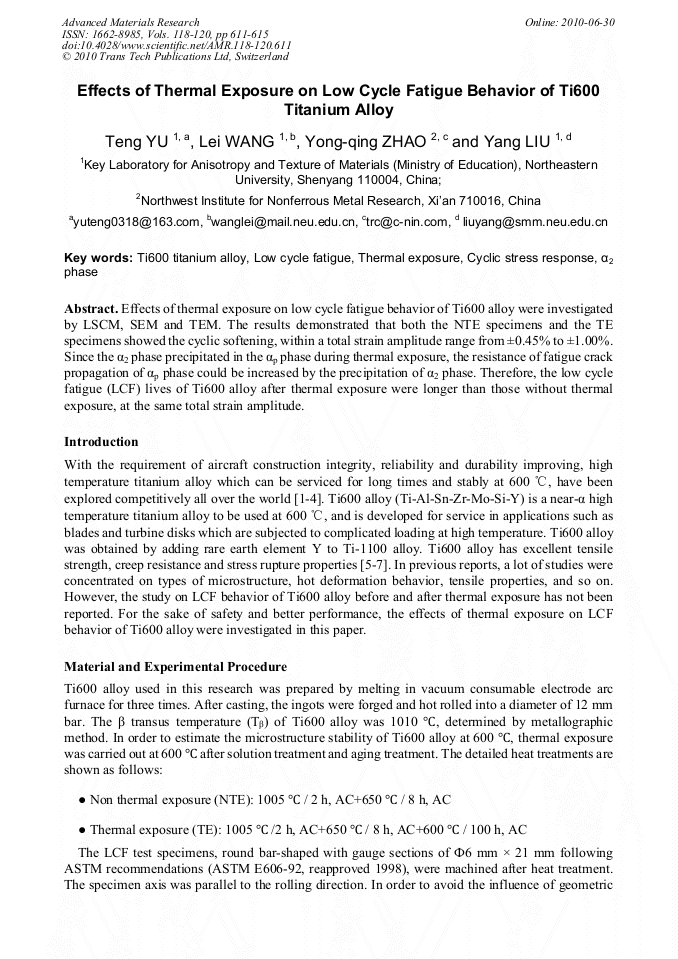

Abstract:

Effects of thermal exposure on low cycle fatigue behavior of Ti600 alloy were investigated by LSCM, SEM and TEM. The results demonstrated that both the NTE specimens and the TE specimens showed the cyclic softening, within a total strain amplitude range from ±0.45% to ±1.00%. Since the α2 phase precipitated in the αp phase during thermal exposure, the resistance of fatigue crack propagation of αp phase could be increased by the precipitation of α2 phase. Therefore, the low cycle fatigue (LCF) lives of Ti600 alloy after thermal exposure were longer than those without thermal exposure, at the same total strain amplitude.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 118-120)

Pages:

611-615

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.118-120.611

Citation:

Cite this paper

Online since:

June 2010

Authors:

Teng Yu, Lei Wang, Yong Qing Zhao, Yang Liu

Keywords:

Cyclic Stress Response, Low Cycle Fatigue, Thermal Exposure, Ti600 Titanium Alloy, α₂ Phase

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S. J. Savage, F. H, Froes: J. Met., Vol. 36, No. 4 (1984), p.20.

Google Scholar

[2] X. Wang, M. Jahazi and S. Yue: Mater. Sci. Eng. A, Vol. 434 (2006), p.188.

Google Scholar

[3] P. J. Bania: J. Met., Vol. 40, No. 3 (1988), p.20.

Google Scholar

[4] J. M. Cai, Z. X. Li and J. M. Ma, et al: Mater. Review, Vol. 19, No. 1 (2005), p.50.

Google Scholar

[5] Z. Q. Zhang, G. Z. Luo and Q. Hong, et al: J. Aeronautical Mater., Vol. 19, No. 4 (1999), p.6.

Google Scholar

[6] P. Guo, Q. Hong and L. Y. Zeng, et al: Mater. Heat Treatment, Vol. 35, No. 14 (2006), p.50.

Google Scholar

[7] Q. Hong, Z. Q. Zhang and G. J. Yang, et al: Acta Metall. Sinica, Vol. 38, No. 9 (2002), p.135.

Google Scholar

[8] T. J. Zhang: Rare Met. Mater. Eng., No. 2 (1992), p.74 Crack propagation direction 30 µµµµm 30 µµµµm Crack propagation direction Fig. 9 LCF crack propagation behavior, specimens test at � tε /2 = ±0. 50% (a) NTE; (b) TE (a) (b).

Google Scholar
