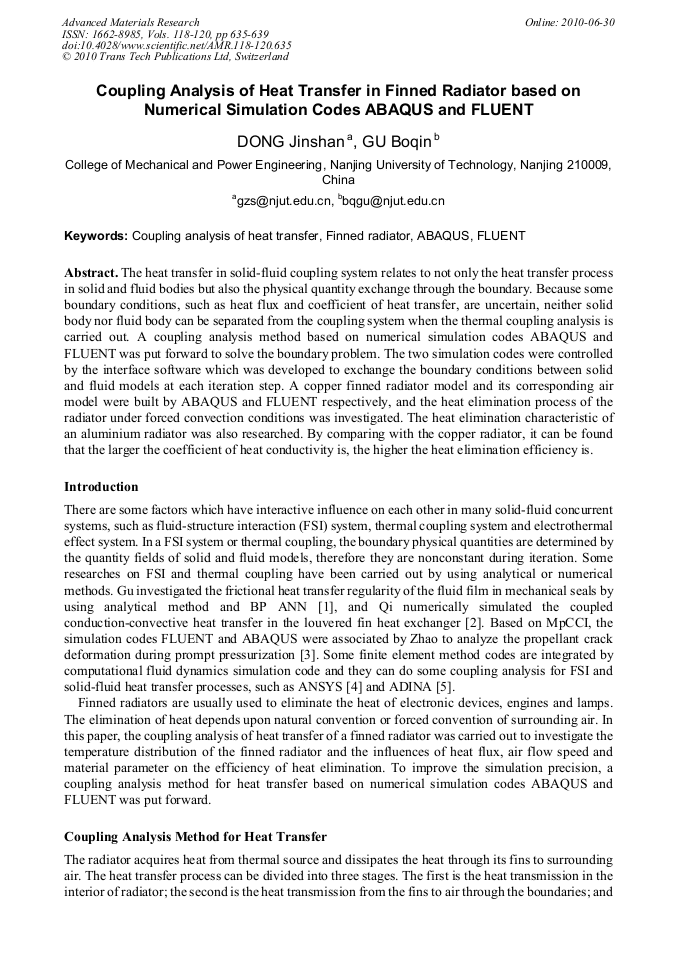

Coupling Analysis of Heat Transfer in Finned Radiator Based on Numerical Simulation Codes ABAQUS and FLUENT

Abstract:

The heat transfer in solid-fluid coupling system relates to not only the heat transfer process in solid and fluid bodies but also the physical quantity exchange through the boundary. Because some boundary conditions, such as heat flux and coefficient of heat transfer, are uncertain, neither solid body nor fluid body can be separated from the coupling system when the thermal coupling analysis is carried out. A coupling analysis method based on numerical simulation codes ABAQUS and FLUENT was put forward to solve the boundary problem. The two simulation codes were controlled by the interface software which was developed to exchange the boundary conditions between solid and fluid models at each iteration step. A copper finned radiator model and its corresponding air model were built by ABAQUS and FLUENT respectively, and the heat elimination process of the radiator under forced convection conditions was investigated. The heat elimination characteristic of an aluminium radiator was also researched. By comparing with the copper radiator, it can be found that the larger the coefficient of heat conductivity is, the higher the heat elimination efficiency is.

• Periodical: Advanced Materials Research (Volumes 118-120)
• Pages: 635-639
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.118-120.635
• Online since: June 2010
• Authors: Jin Shan Dong, Bo Qin Gu
• Keywords: ABAQUS, Coupling Analysis of Heat Transfer, Finned Radiator, Fluent

References

[1] B.Q. Gu, J.F. Zhou and Y. Chen, etc. Frictional Heat Transfer Regularity of the Fluid Film in Mechanical Seals. China SCI Science in China Series E-Technological Sciences, Vol. 51(5)(2008), pp.611-623.

DOI: 10.1007/s11431-008-0045-5

[2] B. Qi, L.J. Li and W.Z. Cui, etc. Coupled Conduction-convective Heat Transfer in the Louvered Fin Heat Exchanger. Journal of Chongqing University (Natural Science Edition). Vol. 28(10)(2005), pp.38-42.

DOI: 10.1115/ht2005-72840

[3] R.Y. Zhao, S.C. Yu and H. Li, W etc. Analysis on propellant crack deformation during prompt pressurization. Journal of Solid Rocket Technology, Vol. 32(1)(2009), pp.43-47.

[4] H.Y. Chen, Y. Li and X. L Yu. Numerical Simulation Study on Steady Heat Transfer of Fluid-solid Coupled System in Diesel Engines. Transactions of the Chinese Society for Agricultural Machinery, Vol. 38(2)(2007), pp.56-60.

[5] Z.H. Lu and C. Qi. Finite Element Simulation of Thermo-elastic Coupling Characteristics of Automotive Drum Brake. Journal of Mechanical Strength, Vol. 25(4)(2003), pp.401-407.

[6] Information on http: /www. mpcci. de/mpcci_manuals. html.

[7] Z.X. Chen, C. H Sun and Z.P. Zhou. Simulation of Heat Transfer in the CPU Ribbed Radiator and Selection for Material for the Radiator. Journal of Hebei University of Technology, Vol. 37(1)(2008), pp.86-89.
