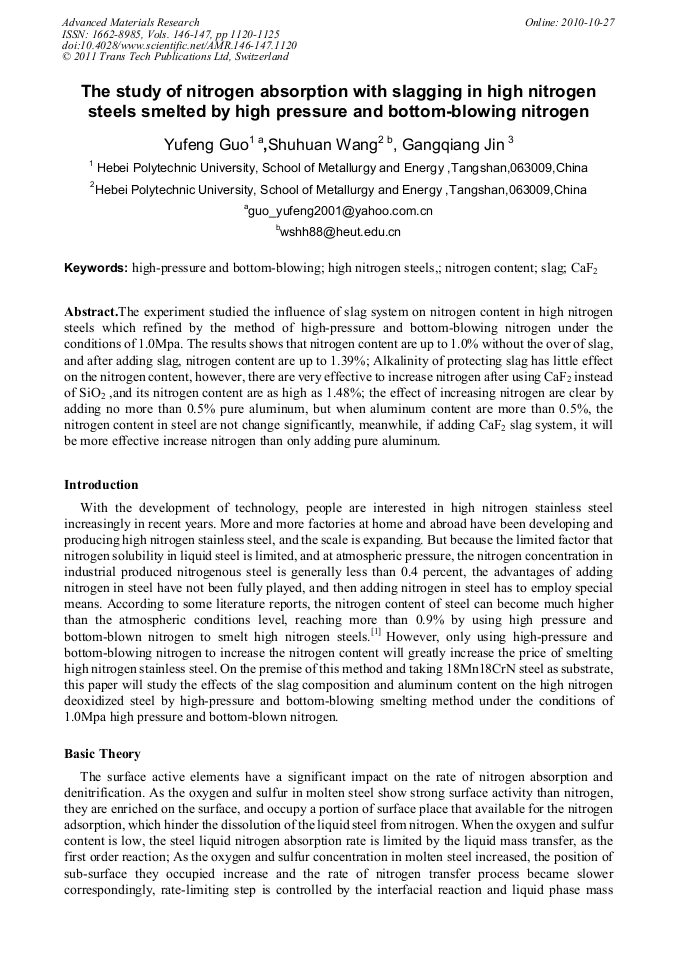

The Study of Nitrogen Absorption with Slagging in High Nitrogen Steels Smelted by High Pressure and Bottom-Blowing Nitrogen

Abstract:

The experiment studied the influence of slag system on nitrogen content in high nitrogen steels which refined by the method of high-pressure and bottom-blowing nitrogen under the conditions of 1.0Mpa. The results shows that nitrogen content are up to 1.0% without the over of slag, and after adding slag, nitrogen content are up to 1.39%; Alkalinity of protecting slag has little effect on the nitrogen content, however, there are very effective to increase nitrogen after using CaF2 instead of SiO2 ,and its nitrogen content are as high as 1.48%; the effect of increasing nitrogen are clear by adding no more than 0.5% pure aluminum, but when aluminum content are more than 0.5%, the nitrogen content in steel are not change significantly, meanwhile, if adding CaF2 slag system, it will be more effective increase nitrogen than only adding pure aluminum.

• Periodical: Advanced Materials Research (Volumes 146-147)
• Pages: 1120-1125
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.146-147.1120
• Online since: October 2010
• Authors: Yu Feng Guo, Shu Huan Wang, Gang Qiang Jin
• Keywords: Bottom-Blowing, CaF₂, High Nitrogen Steel (HNS), High-Pressure, Nitrogen Content, Slag

References

[1] Aimin Gao, Dingguo Zhao, yanjiang Bai, etc. The refining thermodynamic analysis and experimental research of high nitrogen steels by using high pressure and bottom-blown [J], The Chinese Journal of Process Engineering, 2008, 8(1): 243-246.

[2] Guochang Jiang. Clean steel and secondary refining [M]. Shanghai Scientific and Technical Publishers， 1996: 268-269.

[3] KATSUTOMO T, HIDEAKI S. Nitride capacity of CaO-Al2O3 melts[J], 1991, 31(1): 1316-1321.

[4] Xihu Huang ( eds. ) [M]. Beijing：Metallurgy Industry Press，2002. 1.

[5] MARTINEZ E, SANO N. Nitrogen solubilities in CaO-CaF2 melts[J]. Steel Res, 1987, 58(11): 485.

DOI: 10.1002/srin.198700253
