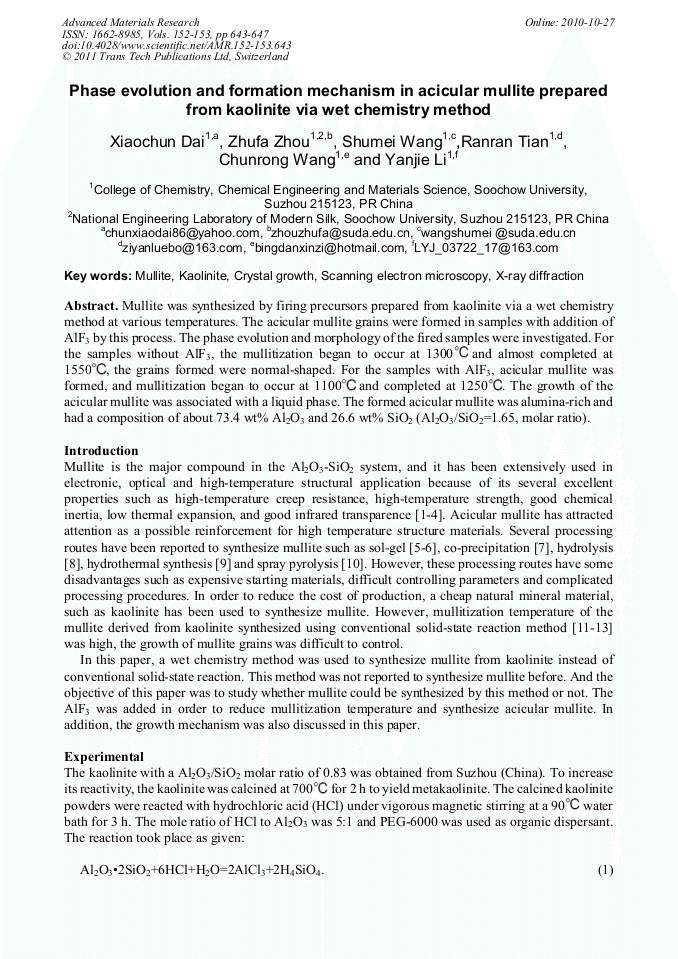

Phase Evolution and Formation Mechanism in Acicular Mullite Prepared from Kaolinite via Wet Chemistry Method

Abstract:

Mullite was synthesized by firing precursors prepared from kaolinite via a wet chemistry method at various temperatures. The acicular mullite grains were formed in samples with addition of AlF3 by this process. The phase evolution and morphology of the fired samples were investigated. For the samples without AlF3, the mullitization began to occur at 1300 and almost completed at 1550 , the grains formed were normal-shaped. For the samples with AlF3, acicular mullite was formed, and mullitization began to occur at 1100 and completed at 1250 . The growth of the acicular mullite was associated with a liquid phase. The formed acicular mullite was alumina-rich and had a composition of about 73.4 wt% Al2O3 and 26.6 wt% SiO2 (Al2O3/SiO2=1.65, molar ratio).

• Periodical: Advanced Materials Research (Volumes 152-153)
• Pages: 643-647
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.152-153.643
• Online since: October 2010
• Authors: Xiao Chun Dai, Zhu Fa Zhou, Shu Mei Wang, Ran Ran Tian, Chun Rong Wang, Yan Jie Li
• Keywords: Crystal Growth, Kaolinite, Mullite, Scanning Electron Microscope (SEM), X-Ray Diffraction (XRD)

References

[1] H. Schneider, J. Schreuer and B. Hildmann: J. Eur. Ceram. Soc. Vol. 28 (2008), p.329.

[2] K.S. Mazdiyasni and L.M. Brown: J. Am. Ceram. Soc. Vol. 55 (1972), p.548.

[3] S. Kanzaki, H. Tabata, T. Kumazawa and S. Ohta: J. Am. Ceram. Soc. Vol. 68 (1985), p. C6.

[4] T.I. Mah and K.S. Mazdiyasni: J. Am. Ceram. Soc. Vol. 66 (1983), p.699.

[5] J. Parmentier and S. Vilminot, J: Alloys Compd. Vol. 264 (1998), p.136.

[6] H. Tan, Y. Ding and J. Yang: J. Alloys Compd. Vol. 492 (2010), p.369.

[7] M.H. Zhou, J.M.F. Ferreira, A.T. Fonseca and J.L. Baptista: J. Am. Ceram. Soc. Vol. 79 (1996), p.1756.

[8] Y.X. Huang, A.M.R. Senos and J.L. Baptista: Ceram. Int. Vol. 24 (1998), p.223.

[9] T.R.N. Kutty and M. Nayak: Mater. Chem. Phys. Vol. 65 (2000), p.158.

[10] D. Janackovic, V. Jokanovic, L.K. Gvozdenovic and D. Uskokovic: Nanostruct. Mater. Vol. 10 (1998), p.341.

[11] C.Y. Chen, G.S. Lan and W.H. Tuan: J. Eur. Ceram. Soc. Vol. 20 (2000), p.2519.

[12] M.A. Sainz, F.J. Serrano, J.M. Amigo, J. Bastida and A. Caballero: J. Eur. Ceram. Soc. Vol. 20 (2000), p.403.

[13] J.H. Bai: Ceram. Int. Vol. 36 (2009), p.673.

[14] M. Schmucker, W. Albers and H. Schneider: J. Eur. Ceram. Soc. Vol. 14 (1994), p.511.

[15] A.M.A. Rehim: Thermochim. Acta. Vol. 13 (1975), p.231.

[16] J.R. Moyer and P.R. Rudolf: J. Am. Ceram. Soc. Vol. 77 (1994), p.1087.

[17] J.R. Moyer and N.N. Hughes: J. Am. Ceram. Soc. Vol. 77 (1994), p.1083.

[18] P. Peng and C. Sorrell: Mater. Lett. Vol. 58 (2004), p.1288.

[19] K. Okada and N. Otsuka: J. Mater. Sci. Lett. Vol. 8 (1989), p.1052.

[20] X. Miao: Mater. Lett. Vol. 38 (1999), p.167.

[21] A.J. Pyzik, C.S. Todd and C. Han: J. Eur. Ceram. Soc. Vol. 28 (2008), p.383.

[22] I.A. Aksay and J.A. Pask: J. Am. Ceram. Soc. Vol. 58 (1975), p.507.

[23] I.A. Aksay, D.M. Dabbs and M. Sarikaya: J. Am. Ceram. Soc. Vol. 74 (1991), p.2343.

[24] K. Okada and N. Otuska: J. Am. Cerm. Soc. Vol. 74 (1991), p.2414.
