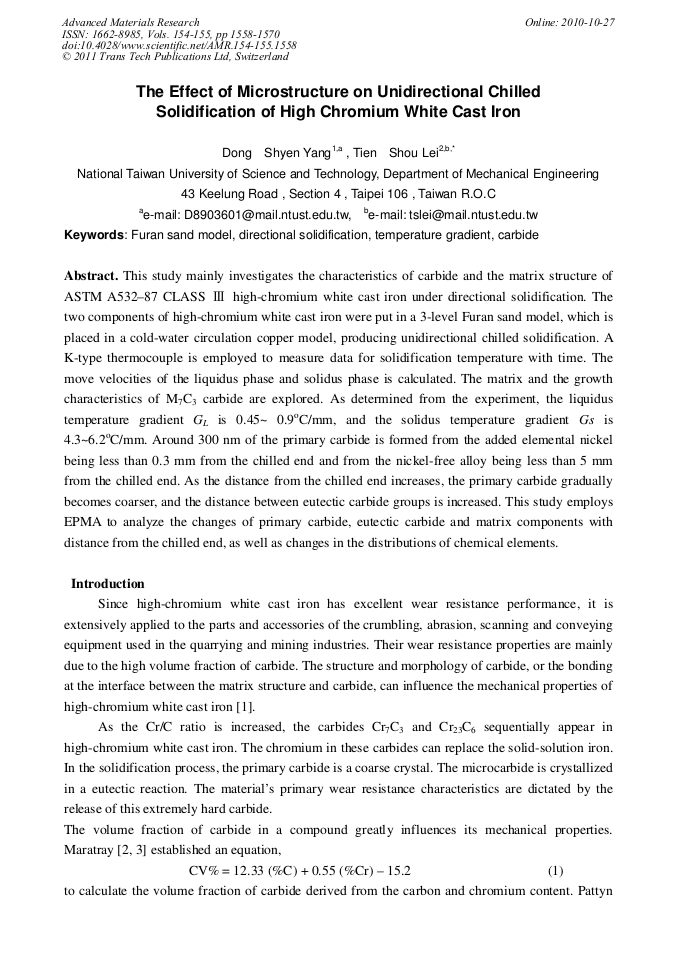

The Effect of Microstructure on Unidirectional Chilled Solidification of High Chromium White Cast Iron

Abstract:

This study mainly investigates the characteristics of carbide and the matrix structure of ASTM A532–87 CLASS Ⅲ high-chromium white cast iron under directional solidification. The two components of high-chromium white cast iron were put in a 3-level Furan sand model, which is placed in a cold-water circulation copper model, producing unidirectional chilled solidification. A K-type thermocouple is employed to measure data for solidification temperature with time. The move velocities of the liquidus phase and solidus phase is calculated. The matrix and the growth characteristics of M7C3 carbide are explored. As determined from the experiment, the liquidus temperature gradient GL is 0.45~ 0.9oC/mm, and the solidus temperature gradient Gs is 4.3~6.2oC/mm. Around 300 nm of the primary carbide is formed from the added elemental nickel being less than 0.3 mm from the chilled end and from the nickel-free alloy being less than 5 mm from the chilled end. As the distance from the chilled end increases, the primary carbide gradually becomes coarser, and the distance between eutectic carbide groups is increased. This study employs EPMA to analyze the changes of primary carbide, eutectic carbide and matrix components with distance from the chilled end, as well as changes in the distributions of chemical elements.

• Periodical: Advanced Materials Research (Volumes 154-155)
• Pages: 1558-1570
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.154-155.1558
• Online since: October 2010
• Authors: Shyen Yang Dong, Shou Lei Tien
• Keywords: Carbide, Directional Solidification, Furan Sand Model, Temperature Gradient

References

[1] Tiancheng Zhang, D. Y. Li, Effect of alloy yttrium on corrosion–erosion behavior of 27Cr Cast White iron in different corrosive slurries, Materials Science and Engineering A325, 2002, p.87–97.

DOI: 10.1016/s0921-5093(01)01405-8

[2] C. P. Tabrett, I. R. Sare and M.R. Ghomashohi, Microstructure property relationships in high chromium white iron alloys , International materials reviews, 1996, vol. 41, No2, p.59.

DOI: 10.1179/imr.1996.41.2.59

[3] F. Maratray, Climax Molybdenum, Choice of appropriate compositions for chromium – molybdenum white irons, AFS transactioins, 1971, Vol. 25, p.121– 124.

[4] R. L. Pattyn, Heat treatment of high Cr white irons, AFS transactions, 1993, p.161–167.

[5] Liming Lu, Hiroshi Soda, Alexander McLean, Microstructure and mechanical properties of Fe–Cr–C eutectic composites, Materials Science and Engineering A347(2003)p.214–222.

DOI: 10.1016/s0921-5093(02)00588-9

[6] J.A. Hawk, Effect of carbide orientation on abrasion of high Cr white cast iron, Wear189 (1995), p.136–142.

DOI: 10.1016/0043-1648(95)06682-9

[7] S.B. Biner, The role of eutectic carbide morphology on the fracture behavior of high chromium cast irons – Austenitic alloys, Canandian Metallurgical Quarterly, Vol. 24, 1985, p.155–162.

DOI: 10.1179/cmq.1985.24.2.155

[8] George Laird, et al., Abrasion-Resistant Cast Iron Handbook, American Foundry Society, 2000, pp.63-103.

[9] George Laird, et al., Abrasion-Resistant Cast Iron Handbook, American Foundry Society, 2000, pp.13-35.
