Synthesis and Characterization of a Self-Lubricating Film on Bearing Balls

Le Gu; Guo Jian Cao; Li Qin Wang; Xin Xin Ma

doi:10.4028/www.scientific.net/AMR.154-155.367

Paper Titles

Defect Analysis of Cup-Shaped Aluminum Alloy Forgings with Flange
p.349

Strain Analysis on Weld Zone of Tailor Welded Blanks in the Case of Welded Seam Cracking
p.355

Study on the Flow Behavior in a Tubular Cavity during Water-Assisted Injection Molding
p.359

Joule Energy Deposition in Segmented Metal Wire Electrical Explosion
p.363

Synthesis and Characterization of a Self-Lubricating Film on Bearing Balls
p.367

Low-Temperature Property of New Type Lead-Free Solder Sn-X-Cu-Ni
p.371

Simulation of the Dendritic Growth of Aluminum Casting during Solidification Based on CA Method
p.376

Synthesis of Nanoscale Pd/Fe Bimetallic Particles on PVDF Membrane Matrix for Dechlorination of Monochloroacetic Acid
p.381

Modal Analysis and Testing of Large-Span Space Steel Structure
p.386

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 154-155Synthesis and Characterization of a...

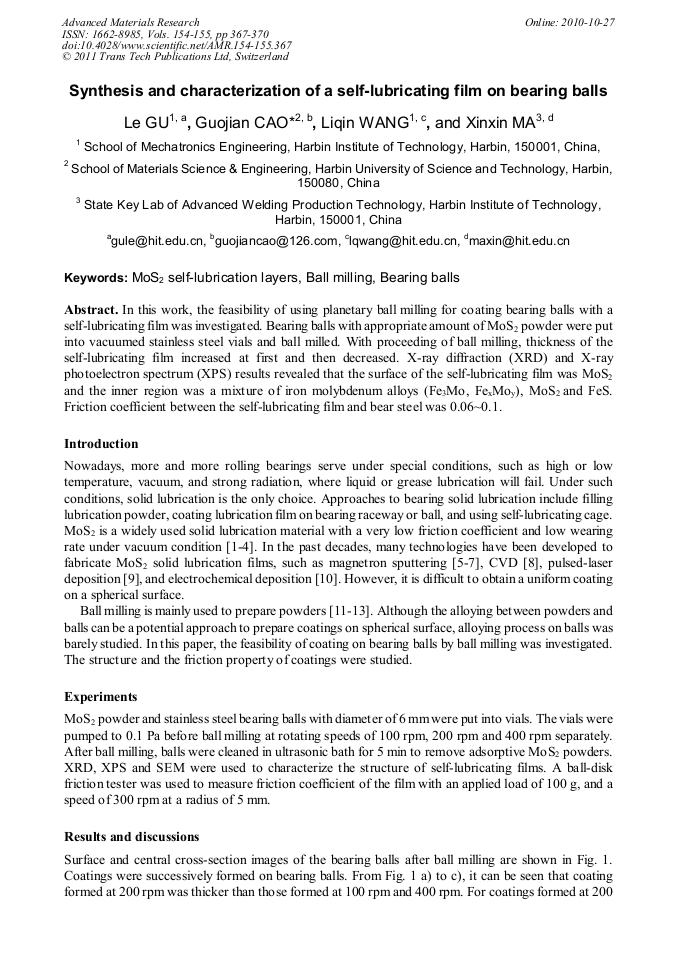

Synthesis and Characterization of a Self-Lubricating Film on Bearing Balls

Abstract:

In this work, the feasibility of using planetary ball milling for coating bearing balls with a self-lubricating film was investigated. Bearing balls with appropriate amount of MoS2 powder were put into vacuumed stainless steel vials and ball milled. With proceeding of ball milling, thickness of the self-lubricating film increased at first and then decreased. X-ray diffraction (XRD) and X-ray photoelectron spectrum (XPS) results revealed that the surface of the self-lubricating film was MoS2 and the inner region was a mixture of iron molybdenum alloys (Fe3Mo, FexMoy), MoS2 and FeS. Friction coefficient between the self-lubricating film and bear steel was 0.06~0.1.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 154-155)

Pages:

367-370

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.154-155.367

Citation:

Cite this paper

Online since:

October 2010

Authors:

Le Gu, Guo Jian Cao, Li Qin Wang, Xin Xin Ma

Keywords:

Ball Milling, Bearing Balls, MoS₂ Self-Lubrication Layers

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] T. Endo, T. Iijima, Y. Kaneko, Y. Miyakawa and M. Nishimura: wear Vol. 190 (1995), p.219.

Google Scholar

[2] S.E. Franklin and J. Baranowska: Wear Vol. 263 (2007), p.1300.

Google Scholar

[3] K. Tanaka, Y. Uchiyama, T. Nakagawa and M. Matsunaga: Wear Vol. 74 (1981), p.165.

Google Scholar

[4] E. W. Roberts: Thin Solid Films Vol. 181 (1989), p.461.

Google Scholar

[5] W. Lauwerens, J. H. Wang, J. Navratil, E. Wieërs, J. D'haen, L. M. Stals, JP Celis and Y. Bruynseraede: Surf. Coat. Technol. Vol. 131 (2000), p.216.

DOI: 10.1016/s0257-8972(00)00796-9

Google Scholar

[6] M. Simmonds, A. Savan, E. Pflüger and H. Swygenhoven: Surf. Coat. Technol. Vol. 126 (2000), p.15.

Google Scholar

[7] G. Weise, N. Mattern, H. Hermann, A. Teresiak, I. Bächer, W. Brücher, HD Bauer, H. Vinzelberg, G. Reiss, U. Kreissig, M. Mäder andP. Markschläger: Thin Solid Films Vol. 298 (1997), p.98.

DOI: 10.1016/s0040-6090(96)09165-1

Google Scholar

[8] Endler, A. Leonhardt, U. König, H. van den Berg, W. Pitschke and V. Sottke: Surf. Coat. Technol. Vol. 120-121 (1999), p.482.

DOI: 10.1016/s0257-8972(99)00413-2

Google Scholar

[9] TS Lee, B. Esposito, MS Donley, JS Zabinski, BJ Tatarchuk: Thin Solid Films Vol. 286 (1996), p.282.

DOI: 10.1016/s0040-6090(95)08219-0

Google Scholar

[10] Albu-Yaron, C. Lévy-Clément, A. Katty, S. Bastide and R. Tenne: Thin Solid Films Vol. 361-362 (2000), p.223.

DOI: 10.1016/s0040-6090(99)00838-x

Google Scholar

[11] MN Avettand-Fènoël, R. Taillard, J. Dhers and J. Foct: Int. J Refract. Met. Hard Mater. Vol. 21 (2003), p.205.

Google Scholar

[12] J. Alkebro, S. Bégin-Colin, A. Mocellin and R. Warren: J Solid state Chem. Vol. 164 (2002), p.88.

DOI: 10.1006/jssc.2001.9451

Google Scholar

[13] C. Yang, SZ Jin, BY Liang, GJ Liu and SS Jin: J. Mater. Process. Technol. Vol. 209 (2009), p.871.

Google Scholar

[14] C. Suryanarayana: Prog. Mater Sci. Vol. 46 (2001), p.1.

Google Scholar
