Simulation of Nine-Spacer Nozzle’s Flow Field of Al Roll-Casting Using Coupled Fluid-Thermal Finite Element Analysis

Abstract:

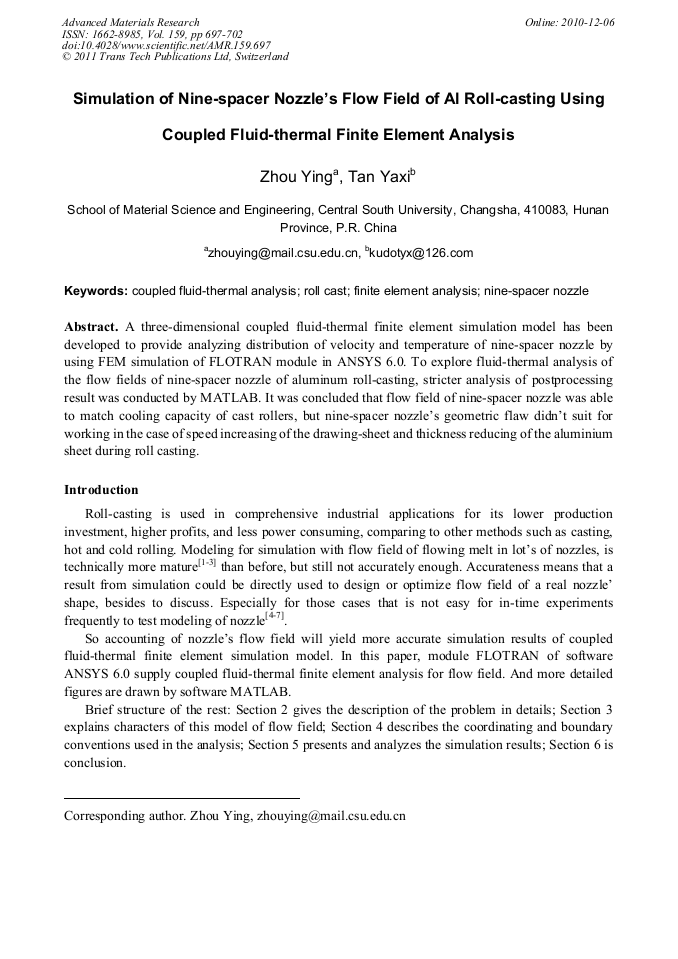

Article Preview

A three-dimensional coupled fluid-thermal finite element simulation model has been developed to provide analyzing distribution of velocity and temperature of nine-spacer nozzle by using FEM simulation of FLOTRAN module in ANSYS 6.0. To explore fluid-thermal analysis of the flow fields of nine-spacer nozzle of aluminum roll-casting, stricter analysis of postprocessing result was conducted by MATLAB. It was concluded that flow field of nine-spacer nozzle was able to match cooling capacity of cast rollers, but nine-spacer nozzle’s geometric flaw didn’t suit for working in the case of speed increasing of the drawing-sheet and thickness reducing of the aluminium sheet during roll casting.

Info:

Periodical:

Edited by:

Dehuai Zeng

Pages:

697-702

DOI:

10.4028/www.scientific.net/AMR.159.697

Citation:

Y. Zhou and Y. X. Tan, "Simulation of Nine-Spacer Nozzle’s Flow Field of Al Roll-Casting Using Coupled Fluid-Thermal Finite Element Analysis", Advanced Materials Research, Vol. 159, pp. 697-702, 2011
