Experimental Research on Concrete-Filled GFRP Tubes and GFRP-Steel Composite Tubes under Axial Compressive Load

Abstract:

Axial compression experiments of eighteen concrete-filled GFRP tube (CFFT) and concrete-filled GFRP reinforced steel tube (CFFST) specimens in total have been carried out to study their mechanical behaviors. Experimental results show that, GFRP tubes with different filament-wound angles could enhance the strength and ductility of core concrete at different levels. Fibers with hoop directions provide the best confinement and enhance the ultimate strength up to 266% comparing with unconfined concrete columns. Fibers with ±45° winding angles have minor effects on bearing capacity, but greatly improve the ductility of concrete columns. Compared with CFST columns, GFRP reinforced CFST columns with hoop direction fibers increase the bearing capacity of 35.0%, and the fibers along 45° winding angles could enhance by 17.5%. The mechanical behavior and the failure modes of the six experimental group specimens are also discussed in this paper.

You might also be interested in these eBooks

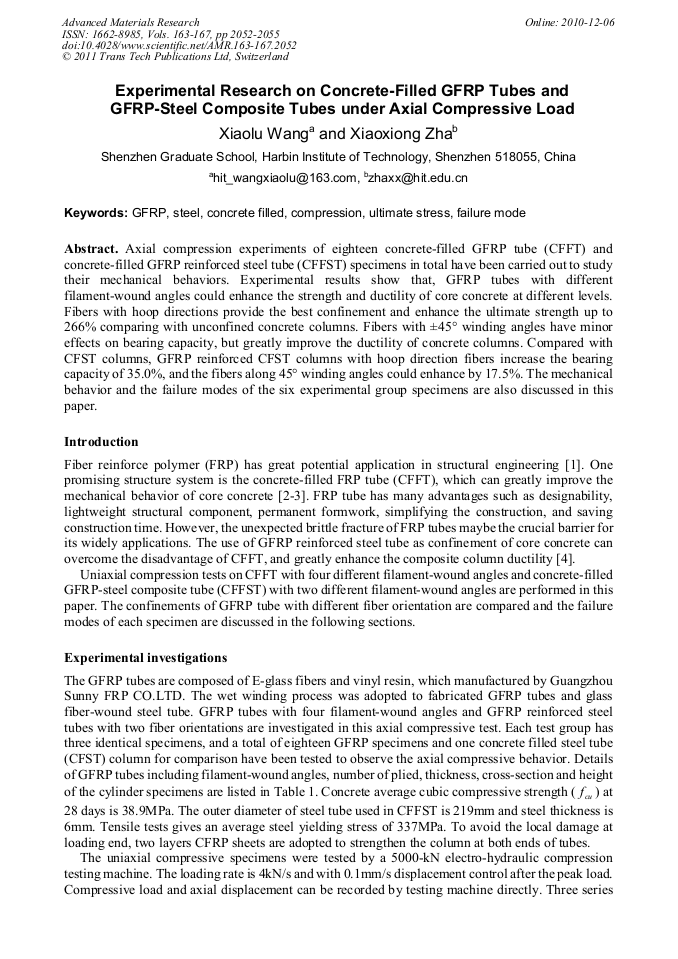

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 163-167)

Pages:

2052-2055

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.163-167.2052

Citation:

Cite this paper

Online since:

December 2010

Authors:

Xiao Lu Wang, Xiao Xiong Zha

Keywords:

Compression, Concrete-Filled, Failure Mode, Glass Fiber Reinforced Polymer (GFRP), Steel, Ultimate Stress

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Bank, Lawrence C. Composties for Construction: Structure Design with FRP Materals. John Wiley& Sons, (2006).

Google Scholar

[2] Amir. Z. Fam, Sami. H. Rizkalla. Behavior of axially loaded concrete-filled circular fiber-reinforced polymer tubes. ACI Strctural Journal, 2001, 98: 280-289.

DOI: 10.14359/10217

Google Scholar

[3] Je-Kuk. Son, Amir. Fam. Finite element modeling of hollow and concrete-filled fiber composite tubes in flexure: Model development, verification and investigation of tube parameters. Engineering Structures, 2008, 30(10): 2656-2666.

DOI: 10.1016/j.engstruct.2008.02.014

Google Scholar

[4] J. G. Teng, T. Yu, Y. L. Wong, S. L. Dong. Hybrid FRP-concrete-steel tubular columns: Concept and behavior. Construction and Building Materials, 2007, 21(4): 846-854.

DOI: 10.1016/j.conbuildmat.2006.06.017

Google Scholar
