Dynamic Test Signal Analysis and Modal Parameters Identification of High-Pier Long-Span Rail Bridge Based on HHT

Abstract:

Dynamic loading test is exerted on a railway continuous beam bridge with a main span of 100m and a pier of 99m high, and dynamic responses are tested under natural excitation. Chebyshev digital filter is used to signal for low-pass filter according to the frequency distribution in FFT spectrum. A series of IMFs are obtained from the Hilbert-Huang Transform of a measured lateral displacement response, which shows: EMD is a self-adaptive signal analysis method that can effectively process non-stationary signal; IMFs can clearly show local features of complicated signal. Modal parameters of the bridge are identified based on HHT and Random Decrement Technique (RDT), the comparison of the identified results obtained from FFT, HHT-RDT and Finite Element Method is made, which show that HHT-RDT is an effective method to identify modal parameters of large bridge structures.

You might also be interested in these eBooks

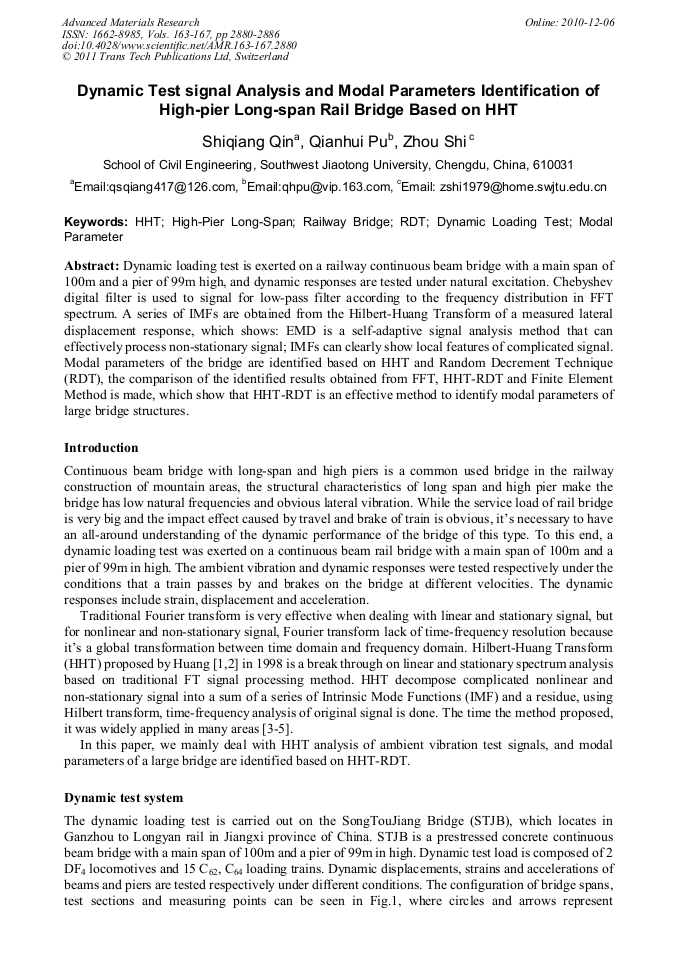

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 163-167)

Pages:

2880-2886

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.163-167.2880

Citation:

Cite this paper

Online since:

December 2010

Authors:

Shi Qiang Qin, Qian Hui Pu, Zhou Shi

Keywords:

Dynamic Loading Test, HHT, High-Pier Long-Span, Modal Parameter, Railway Bridge, RDT

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] N.E. Huang, Z. Shen, S.R. Long, et al. Proc.R. Soc. Lond. A 454(1998). pp.903-995.

Google Scholar

[2] N.E. Huang, Z. Shen, S.R. Long. Annu. Rev. Fluid Mech, 31(1999), pp.417-457.

Google Scholar

[3] C.X. Shi, Q.F. Luo. Acta Seismologica Sinica, Vol. 25-4(2003), pp.398-405. (in Chinese).

Google Scholar

[4] H.T. Vincent, S.L.J. Hu, Z. Hou. Proc. of the 2nd Int. Workshop on Structural Health Monitoring, Stanford University, Stanford(1999), pp.891-900.

Google Scholar

[5] X.M. Wang, F.L. Fang, G. Ma. Proceedings of the Fifth International Symposium on Safety Science and Technology. Science press, Beijing(2006), p.2284~2289.

Google Scholar

[6] Z. Shi, Z.G. Xia, Y.M. Ge. Journal of Southwest Jiaotong University, Vol. 41-3(2006), p.349. 354. (in Chinese).

Google Scholar

[7] Y.C. Liu, X.E. Sun, in: Digital signal process. Publishing house of electronics industry, Beijing(2009).

Google Scholar

[8] J.N. Yang, Y. Lei, Proceedings of the International Conference on Intelligent Systems and Control, IASTED/Acta Press, Anaheim, CA(1999), pp.310-315.

Google Scholar

[9] J. Chen, Y.L. Xu. Struct. Eng. Mech. 14 (2002), pp.417-434.

Google Scholar

[10] G.Q. Li, J. Li, in: Theory and application of dynamic tests in engineering. Science Press, Beijing(2001).

Google Scholar
