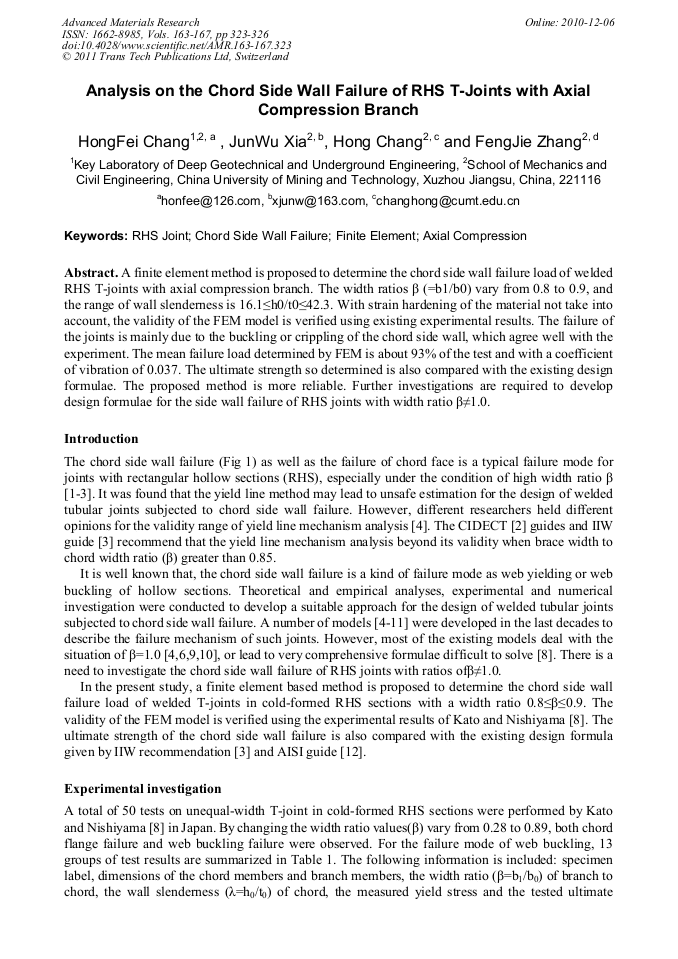

Analysis on the Chord Side Wall Failure of RHS T-Joints with Axial Compression Branch

Abstract:

A finite element method is proposed to determine the chord side wall failure load of welded RHS T-joints with axial compression branch. The width ratios β (=b1/b0) vary from 0.8 to 0.9, and the range of wall slenderness is 16.1≤h0/t0≤42.3. With strain hardening of the material not take into account, the validity of the FEM model is verified using existing experimental results. The failure of the joints is mainly due to the buckling or crippling of the chord side wall, which agree well with the experiment. The mean failure load determined by FEM is about 93% of the test and with a coefficient of vibration of 0.037. The ultimate strength so determined is also compared with the existing design formulae. The proposed method is more reliable. Further investigations are required to develop design formulae for the side wall failure of RHS joints with width ratio β≠1.0.

• Periodical: Advanced Materials Research (Volumes 163-167)
• Pages: 323-326
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.163-167.323
• Online since: December 2010
• Authors: Hong Fei Chang, Jun Wu Xia, Hong Chang, Feng Jie Zhang
• Keywords: Axial Compression, Chord Side Wall Failure, Finite Element, RHS Joint

References

[1] Wardenier, J. HOLLOW SECTIONS IN STRUCTURAL APPLICATIONS. (Delft Press, The Netherlands 2001).

[2] CIDECT. Design guide for rectangular hollow section (RHS) joints under predominantly static loading, 2nd edition. (2009).

[3] IIW. Static design procedure for welded hollow section joints recommendations, International Institute of Welding, IIW Doc. XV-E-09-398. (2009).

[4] Packer, J.A. Journal of Structural Engineering, ASCE, Vol. 110 (1984), p.2357.

[5] Wardenier, J. Hollow Section Joints. (Delft Press, The Netherlands 1982).

[6] Czechowski, A., and Brodka, J. Construction Métallique, Vol. 14 (1977), p.17.

[7] Yura, J. A, Birkemoe, P.C., and Ricles, J.M. Journal of Structural Division, ASCE, Vol. 108(1982), p.311.

[8] Kato et al. The static strength of RR-joints with large b/B ratio. IIW Doc. XV-459-80 (1981).

[9] Zhang, Z. L, Shen, Z.Y., and Chen, X.C. Proceedings of the 3rd International Symposium on Tubular Structures, Lappeenranta, Finland (1989).

[10] Yu, Y, and Wardenier, J. Proceedings of the 7th International Symposium on Tubular Structures, Miskolc, Hungary (1996).

[11] Zhao, X.L. Journal of Constructional Steel Research, Vol. 53(2000), p.149.

[12] AISI. Specifications for the design of cold-formed steel structural members, American Iron and Steel Institute, Washington, D.C., USA. (1986).
