Position Determination in Three Dimensional Structural Testing System

Abstract:

A three dimensional structural testing system for static and pseudo dynamic test is developed, in which a coordinate system has been used in the measurement. The center of the ball joint hinge in an almost neutral position for the displacements of three actuators was the origin. However n process since the initial error cannot be controlled. This makes it difficult to exactly compare the results for different coordinate systems though the error is small. In this paper, to eliminate this difference, we set up a new coordinate system with the origin being the point of absolute zero of the actuator displacements. Since the origin usually cannot be measured directly, the new coordinate system is determined by appending three unknowns and a set of equations at the origin. The transformation between the new coordinate system and the previous one is obtained using a shift and Eulerian angles.

You might also be interested in these eBooks

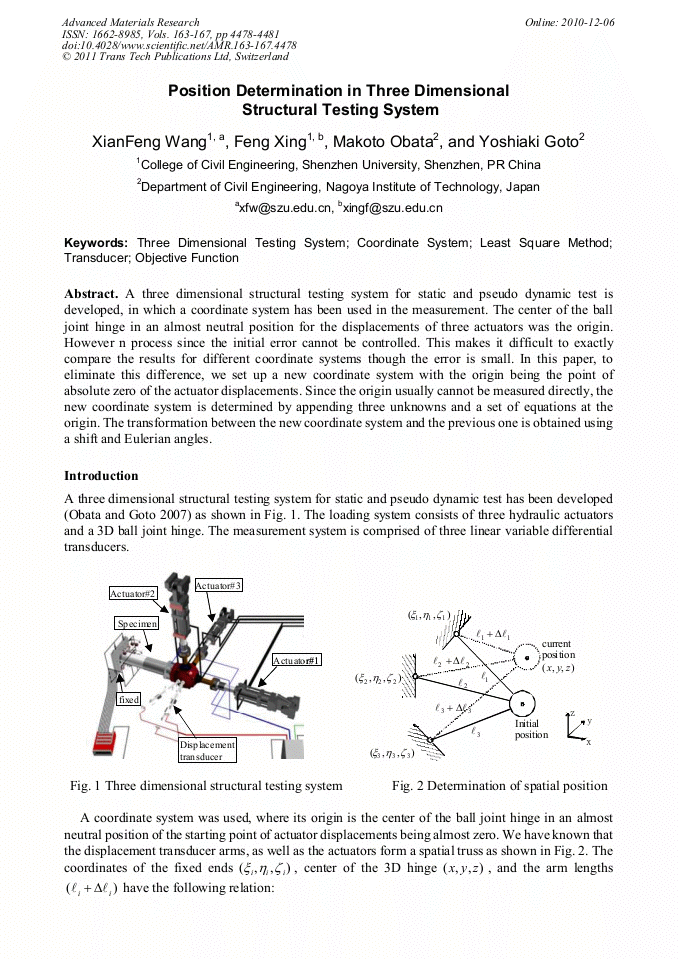

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 163-167)

Pages:

4478-4481

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.163-167.4478

Citation:

Cite this paper

Online since:

December 2010

Authors:

Xian Feng Wang, Feng Xing, Makoto Obata, Yoshiaki Goto

Keywords:

Coordinate System, Least-Square Method (LSM), Objective Function, Three Dimensional Testing System, Transducer

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] M. Obata, and Y. Goto: Development of multidirectional structural testing system applicable to pseudodynamic test, Journal of Structural Engineering, ASCE, vol. 133 (2007), p.638.

DOI: 10.1061/(asce)0733-9445(2007)133:5(638)

Google Scholar

[2] F.L. Litvin and A. Fuentes: Gear Geometry and Applied Theory, Second Edition, Cambridge University Press, (2004).

Google Scholar
