For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
Mechanochemical Synthesis and Characteristics of Pb(Mg1/3Nb2/3)O3
p.29
ZnFe2O4 Modified by Fe(NO3)3 for the Synthesis of Ionic Ferrofluids
p.32
XRD Study on D-Values of Modified PbTiO3 Ceramics during Poling Process
p.37
Application of X-Ray Diffraction at the Study on the Preparation and Structure of α-Al2O3 Nanocrystal
p.41
Effect of the Acidity on the Morphology and Composition of Nano-TiO2/ Cu Particles
p.45
Effect of Severe Plastic Deformation on Microstructures and Properties of AgCuO Composites
p.49
Sol-Gel Preparation, Characterization and Photocatalytic Activity of Co Doped Nano-TiO2
p.54
Nanostructure of a Glass-Like Carbon Characterized by X-Ray Diffraction and Electron Energy Loss Spectroscopy
p.58
Novel Phase Transformation Phenomenon of Potassium Teteratitanate Nanofibres Synthesized from H2TiO3
p.62

Effect of the Acidity on the Morphology and Composition of Nano-TiO2/ Cu Particles

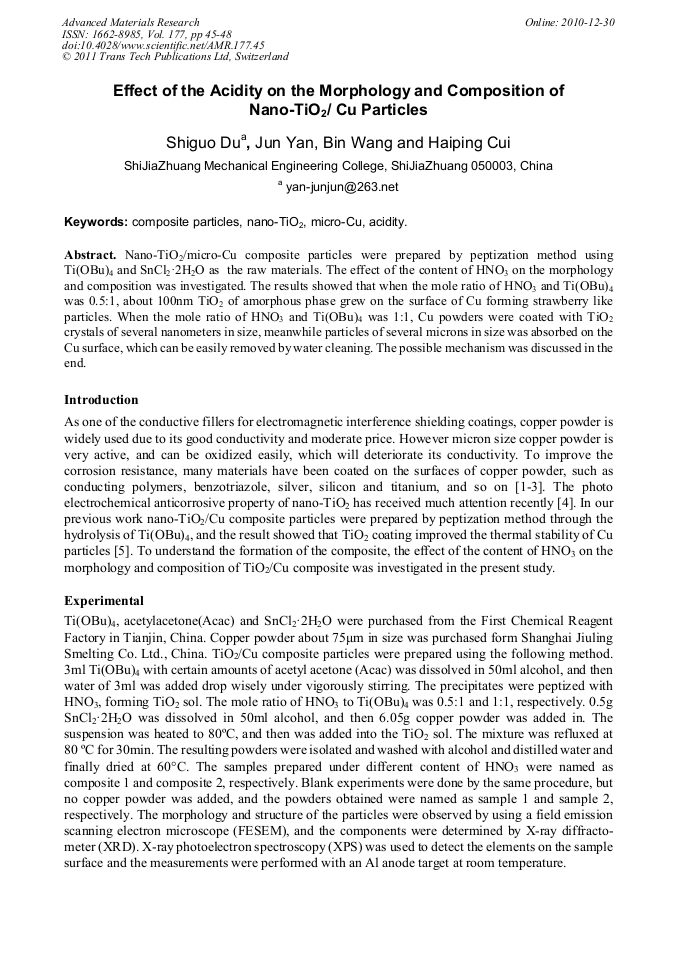

Article Preview

Abstract:

Nano-TiO2/micro-Cu composite particles were prepared by peptization method using Ti(OBu)4 and SnCl2•2H2O as the raw materials. The effect of the content of HNO3 on the morphology and composition was investigated. The results showed that when the mole ratio of HNO3 and Ti(OBu)4 was 0.5:1, about 100nm TiO2 of amorphous phase grew on the surface of Cu forming strawberry like particles. When the mole ratio of HNO3 and Ti(OBu)4 was 1:1, Cu powders were coated with TiO2 crystals of several nanometers in size, meanwhile particles of several microns in size was absorbed on the Cu surface, which can be easily removed by water cleaning. The possible mechanism was discussed in the end.

You might also be interested in these eBooks
Testing and Evaluation of Inorganic Materials I View Preview

Info:

Periodical:

Advanced Materials Research (Volume 177)

Pages:

45-48

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.177.45

Citation:

Cite this paper

Online since:

December 2010

Authors:

Shi Guo Du, Jun Yan, Bin Wang, Hai Ping Cui

Keywords:

Acidity, Composite Particle, Micro-Cu, Nano-TiO2

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2011 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] Y. Guo, M. Zheng and J. Chen: Journal of Composite Materials Vol. 42 (2008), p.1431.

Google Scholar

[2] G.K. Jennings and P.E. Laibinis: Colloid and Surfaces A Vol. 116 (1996), p.105.

Google Scholar

[3] J. Yan, S.G. Du, H.P. Cui, etal.: China Acta Metallurgica Sinica Vol. 43 (2007), p.388.

Google Scholar

[4] R. Subasri and T. Shinohara: Electrochemistry Communications Vol. 5 (2003), p.897.

Google Scholar

[5] J. Yan, H.P. Cui, S.G. Du, etal.: Key Engineering Materials Vol. 368-372 (2008), p.1480.

Google Scholar

[6] H. S Jung, H. Shin, J.R. Kim, etal.: Langmuir Vol. 20 (2003), p.11732.

Google Scholar

[7] B. Xu, D.D. Ding, Y. Gao, etal.: Applied Surface Science Vol. 225 (2009), p.5896.

Google Scholar

[8] Z.L. Xu, J. Shang, C.M. Liu: Materials Science and Engineering B Vol. 63 (1999), p.211.

Google Scholar

[9] L.E. Brus: J. Chem. Phy. Vol. 80 (1984), p.4403.

Google Scholar

[10] Q.H. Zhang, L. Gao, J.K. Guo: Appl. Catal. B Vol. 26 (2000), p.207.

Google Scholar

[11] Y. Hu. C.W. Yuan: J. Cryst. Growth Vol. 274 (2005), p.563.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
