Simulation for Sinusoidal Spindle Speed Variation Cutting in Time Domain Based on Simulink

Abstract:

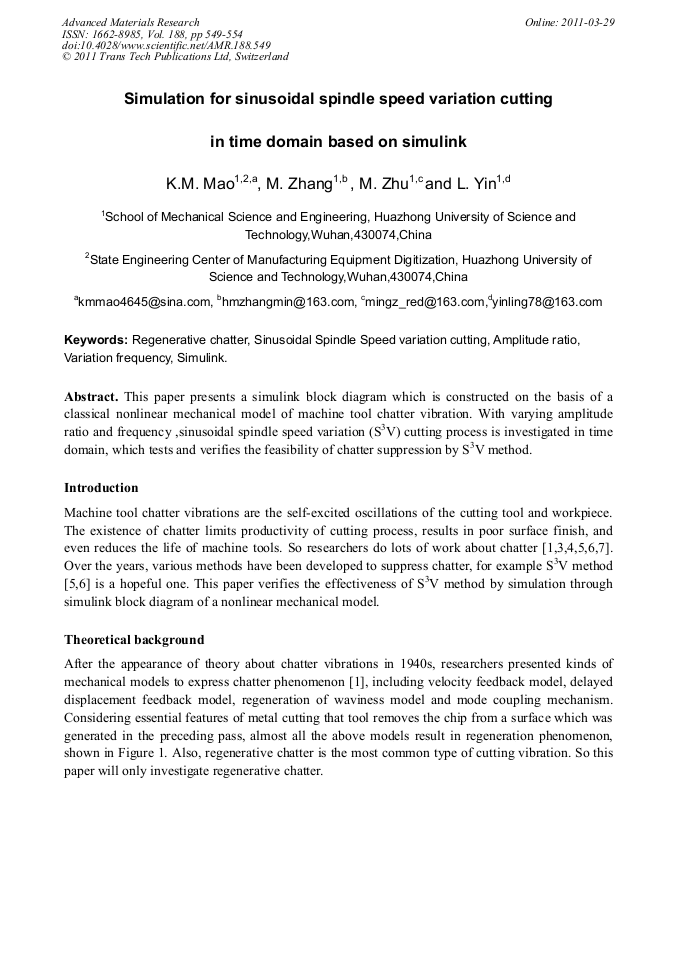

This paper presents a simulink block diagram which is constructed on the basis of a classical nonlinear mechanical model of machine tool chatter vibration. With varying amplitude ratio and frequency ,sinusoidal spindle speed variation (S3V) cutting process is investigated in time domain, which tests and verifies the feasibility of chatter suppression by S3V method.
