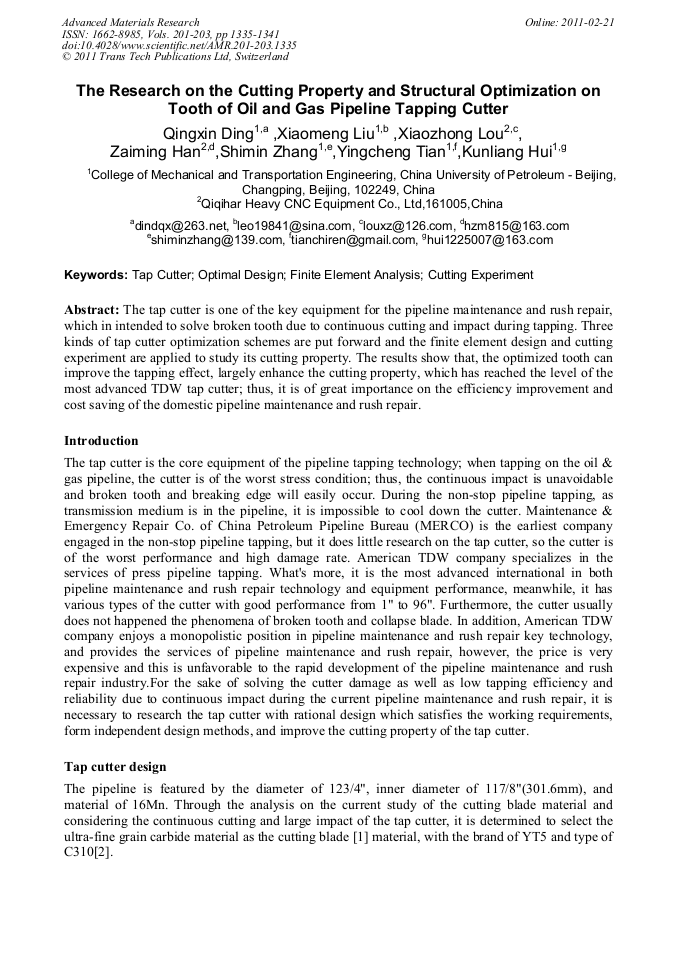

The Research on the Cutting Property and Structural Optimization on Tooth of Oil and Gas Pipeline Tapping Cutter

Abstract:

The tap cutter is one of the key equipment for the pipeline maintenance and rush repair, which in intended to solve broken tooth due to continuous cutting and impact during tapping. Three kinds of tap cutter optimization schemes are put forward and the finite element design and cutting experiment are applied to study its cutting property. The results show that, the optimized tooth can improve the tapping effect, largely enhance the cutting property, which has reached the level of the most advanced TDW tap cutter; thus, it is of great importance on the efficiency improvement and cost saving of the domestic pipeline maintenance and rush repair.

• Periodical: Advanced Materials Research (Volumes 201-203)
• Pages: 1335-1341
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.201-203.1335
• Online since: February 2011
• Authors: Qing Xin Ding, Xiao Meng Liu, Xiao Zhong Lou, Zai Ming Han, Shi Min Zhang, Ying Cheng Tian, Kun Liang Hui
• Keywords: Cutting Experiment, Finite Element Analysis (FEA), Optimal Design, Tap Cutter

References

[1] Z.Q. Liu: Aeronautical Manufacturing Technology Vol. 7(2006), pp.38-42. (in Chinese).

[2] Technical Manual of the Hard Alloy Mechanically Clamped Tool and Welding Cutting Blade of Zhuzhou Diamond Cutting Tool Co., Ltd.

[3] KLOCKE F, BECK T, HOPPE S, et al. Journal of Materials Processing Technology, Vol. 120(2002), pp.450-457.

[4] MACKERL E J. Journal of Materials Processing Technology, Vol. 43(2003), pp.103-114.
