Trim Optimizations of an Adaptive Tailless Aircraft with Composite Wing

Abstract:

This paper investigates aeroelastic tailoring and optimal trailing edge control surface deflection to minimize induced drag for a HALE UAV flying wing configuration. The analysis process is conducted on the Finite Element(FE) model of a composite slender wing. Genetic Algorithm(GA) is employed to aeroelastically tailor the wing by setting the composite ply orientation. The study examined conformal and traditional flaps and explored two optimization formulations to minimize drag. The impacts of the conformal control surface are recognized as required deflection saving which can be translated to drag reduction. The results also show that the control demands for the optimal trim can be further reduced if the wing is properly tailored.

You might also be interested in these eBooks

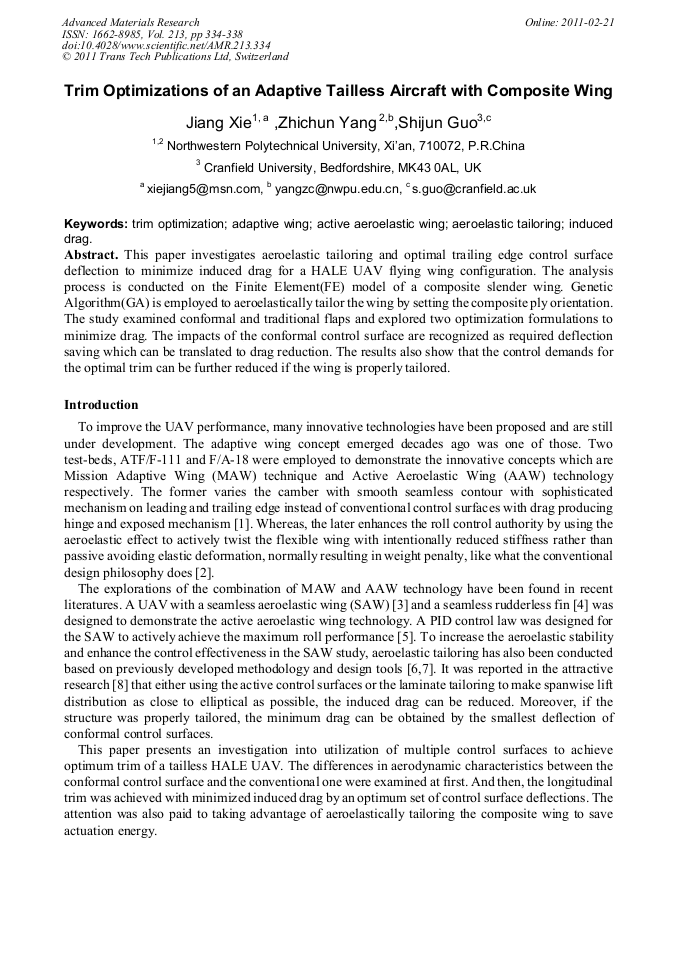

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 213)

Pages:

334-338

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.213.334

Citation:

Cite this paper

Online since:

February 2011

Authors:

Jiang Xie, Zhi Chun Yang, Shi Jun Guo

Keywords:

Active Aeroelastic Wing, Adaptive Wing, Aeroelastic Tailoring, Induced Drag, Trim Optimization

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Gilbert, W., Mission Adaptive Wing System for Tactical Aircraft, Journal of Aircraft, Vol. 18, No. 7, 1981, pp.597-602.

DOI: 10.2514/3.57533

Google Scholar

[2] Pendelton, E., et. al., The-53 A Summary of the Active Aeroelastic Wing Flight Research Program, AIAA Paper No. 2007-1855, April (2007).

Google Scholar

[3] Perera, M., Guo, S., Optimal Design of a Seamless Aeroelastic Wing Structure, AIAA paper 2009-2195, May (2009).

DOI: 10.2514/6.2009-2195

Google Scholar

[4] Trapani, M., Guo, S., Design and analysis of a rudderless aeroelastic fin, Journal of Aerospace Engineering, Vol. 223, No. 6, 2009, pp.701-710.

DOI: 10.1243/09544100jaero492

Google Scholar

[5] Yang, D., Guo, S., Rolling Active control for an Aircraft of Seamless Aeroelastic Wing, AIAA paper 2009-2197, May (2009).

DOI: 10.2514/6.2009-2197

Google Scholar

[6] Guo, S., Aeroelastic Optimisation of an aerobatic aircraft Wing Structure, Aerospace Science and Technology, No. 11, 2007, pp.396-404.

DOI: 10.1016/j.ast.2007.01.003

Google Scholar

[7] Guo, S., Chen, W., and Cui, D., Aeroelastic Tailoring of Composite Wing Structures by Laminate Layup Optimisation, AIAA Journal, Vol. 44, 2006, pp.3146-3149.

DOI: 10.2514/1.20166

Google Scholar

[8] Weisshaar, T., Duke, K., Induced Drag Reduction Using Aeroelastic Tailoring with Adaptive Control Surfaces, Journal of Aircraft, Vol. 43, No. 1, 2006, pp.157-164.

DOI: 10.2514/1.12040

Google Scholar

[9] Monner, H., Realization of an optimized wing camber by using form variable flap structures, Aerospace Science Technology, Vol. 5, No. 7, 2001, pp.445-455.

DOI: 10.1016/s1270-9638(01)01118-x

Google Scholar
