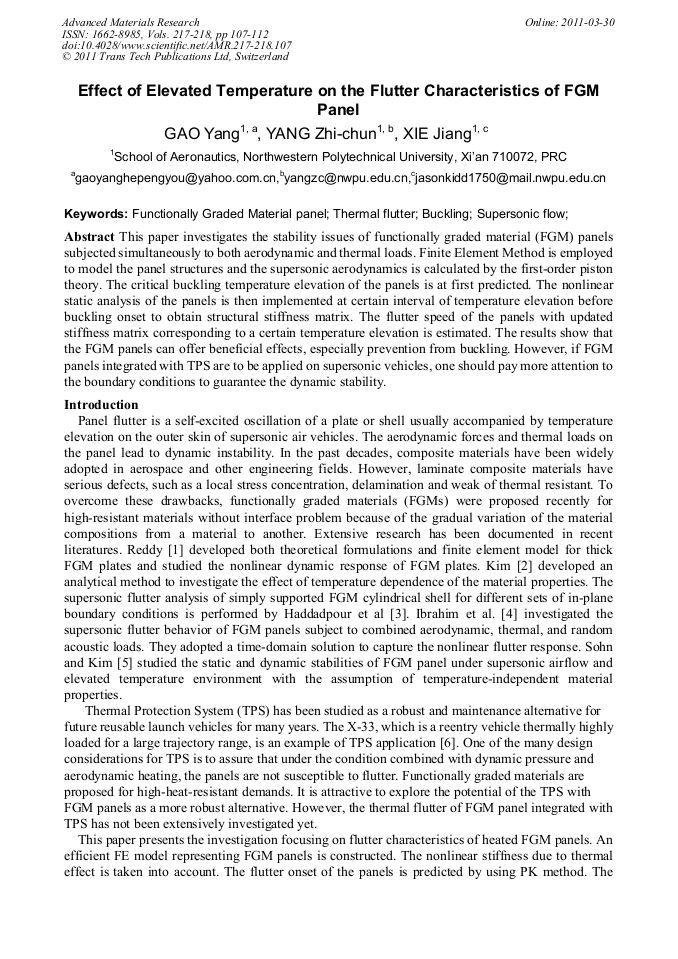

Effect of Elevated Temperature on the Flutter Characteristics of FGM Panel

Abstract:

This paper investigates the stability issues of functionally graded material (FGM) panels subjected simultaneously to both aerodynamic and thermal loads. Finite Element Method is employed to model the panel structures and the supersonic aerodynamics is calculated by the first-order piston theory. The critical buckling temperature elevation of the panels is at first predicted. The nonlinear static analysis of the panels is then implemented at certain interval of temperature elevation before buckling onset to obtain structural stiffness matrix. The flutter speed of the panels with updated stiffness matrix corresponding to a certain temperature elevation is estimated. The results show that the FGM panels can offer beneficial effects, especially prevention from buckling. However, if FGM panels integrated with TPS are to be applied on supersonic vehicles, one should pay more attention to the boundary conditions to guarantee the dynamic stability.

You might also be interested in these eBooks

High Performance Structures and Materials Engineering

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 217-218)

Pages:

107-112

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.217-218.107

Citation:

Cite this paper

Online since:

March 2011

Authors:

Yang Gao, Zhi Chun Yang, Jiang Xie

Keywords:

Buckling, Functionally Graded Material Panel, Supersonic Flow, Thermal Flutter

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] J. N. Reddy, Analysis of Functionally Graded Plates, International Journal for Numerical Methods in Engineering, Vol. 47, 2000, p.663–684.

Google Scholar

[2] Y. W. Kim, Temperature Dependent Vibration Analysis of Functionally Graded Rectangular Plates, Journal of Sound and Vibration, Vol. 284, 2005, p.531–549.

DOI: 10.1016/j.jsv.2004.06.043

Google Scholar

[3] H. Haddadpour, H.M. Navazi, and F. Shadmehri, Nonlinear oscillations of a fluttering functionally graded plate, Composite Structures, Vol. 79, 2007, p.242–250.

DOI: 10.1016/j.compstruct.2006.01.006

Google Scholar

[4] H. H. Ibrahim, H. H. Yoo, and K-S. Lee, Supersonic Flutter of Functionally Graded Panels Subject to Acoustic and Thermal Loads, , Journal of Aircraft, Vol. 46, No. 2, 2009, p.593–600.

DOI: 10.2514/1.39085

Google Scholar

[5] K. -J. Sohn, and J. -H. Kim, Structural Stability of Functionally Graded Panels Subject to Aerothermal Loads, Composite Structures, Vol. 82, 2008, p.317–325.

DOI: 10.1016/j.compstruct.2007.07.010

Google Scholar

[6] R. Chen and M. Blosser, Metallic Thermal Protection System Panel Flutter Study, 40th Aerospace Sciences Meeting & Exhibit, Reno, NV, AIAA Paper 2002-0501, Jan. (2002).

DOI: 10.2514/6.2002-501

Google Scholar
