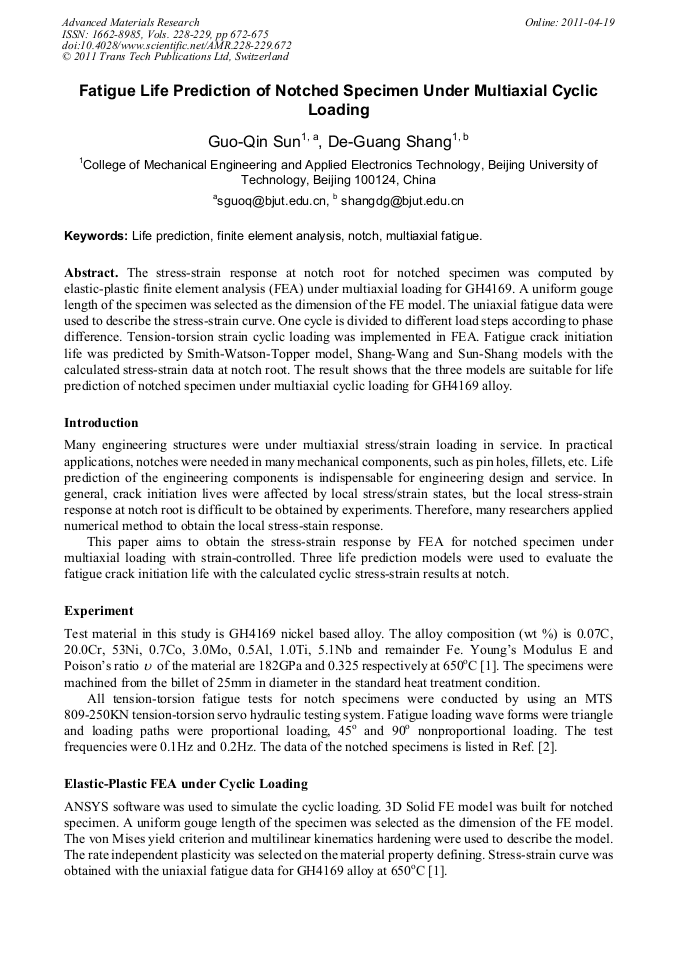

Fatigue Life Prediction of Notched Specimen under Multiaxial Cyclic Loading

Abstract:

The stress-strain response at notch root for notched specimen was computed by elastic-plastic finite element analysis (FEA) under multiaxial loading for GH4169. A uniform gouge length of the specimen was selected as the dimension of the FE model. The uniaxial fatigue data were used to describe the stress-strain curve. One cycle is divided to different load steps according to phase difference. Tension-torsion strain cyclic loading was implemented in FEA. Fatigue crack initiation life was predicted by Smith-Watson-Topper model, Shang-Wang and Sun-Shang models with the calculated stress-strain data at notch root. The result shows that the three models are suitable for life prediction of notched specimen under multiaxial cyclic loading for GH4169 alloy.

• Periodical: Advanced Materials Research (Volumes 228-229)
• Pages: 672-675
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.228-229.672
• Online since: April 2011
• Authors: Guo Qin Sun, De Guang Shang
• Keywords: Finite Element Analysis (FEA), Life Prediction, Multiaxial Fatigue, Notch

References

[1] Chinese Aeronautic Material Handbook, Vol. 2(Standard Press of China, Beijing 2002. In Chinese).

[2] G.Q. Sun and D.G. Shang: Mater & Design. Vol. 31 (2010), p.126.

[3] K.N. Simth, P. Watson and T.H. Topper: J Mater. Vol. 5 (1970), p.767.

[4] D.G. Shang and D.J. Wang: Int J Fatigue. Vol. 20 (1998), p.241.

[5] M.C. Yip and Y.M. Jen: J Eng Mater Tech. Vol. 119 (1997), p.104.
