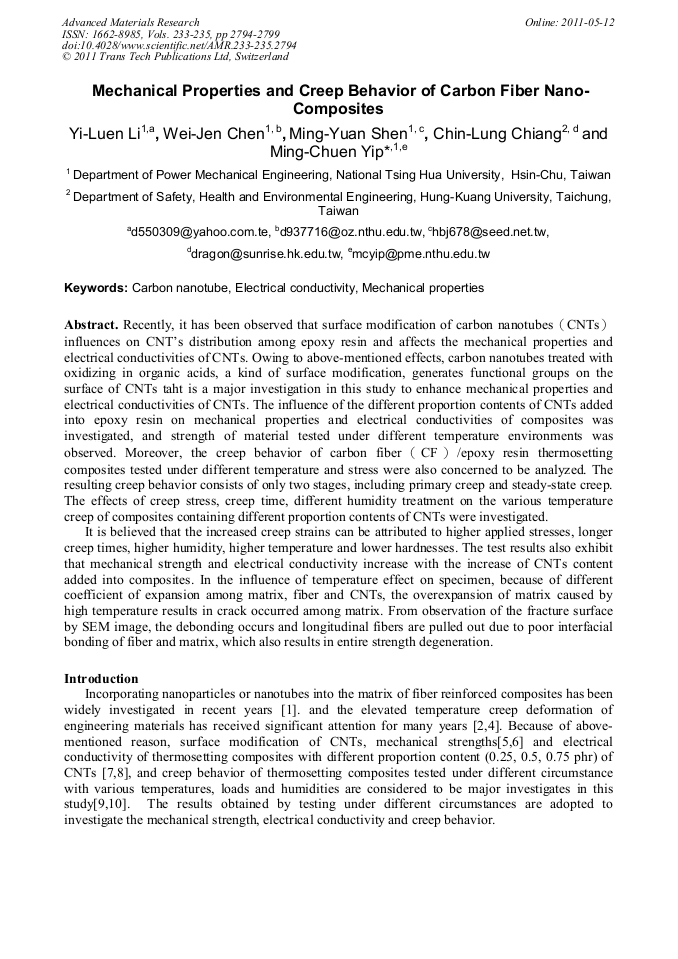

Mechanical Properties and Creep Behavior of Carbon Fiber Nano-Composites

Abstract:

Recently, it has been observed that surface modification of carbon nanotubes（CNTs）influences on CNT’s distribution among epoxy resin and affects the mechanical properties and electrical conductivities of CNTs. Owing to above-mentioned effects, carbon nanotubes treated with oxidizing in organic acids, a kind of surface modification, generates functional groups on the surface of CNTs taht is a major investigation in this study to enhance mechanical properties and electrical conductivities of CNTs. The influence of the different proportion contents of CNTs added into epoxy resin on mechanical properties and electrical conductivities of composites was investigated, and strength of material tested under different temperature environments was observed. Moreover, the creep behavior of carbon fiber（CF）/epoxy resin thermosetting composites tested under different temperature and stress were also concerned to be analyzed. The resulting creep behavior consists of only two stages, including primary creep and steady-state creep. The effects of creep stress, creep time, different humidity treatment on the various temperature creep of composites containing different proportion contents of CNTs were investigated. It is believed that the increased creep strains can be attributed to higher applied stresses, longer creep times, higher humidity, higher temperature and lower hardnesses. The test results also exhibit that mechanical strength and electrical conductivity increase with the increase of CNTs content added into composites. In the influence of temperature effect on specimen, because of different coefficient of expansion among matrix, fiber and CNTs, the overexpansion of matrix caused by high temperature results in crack occurred among matrix. From observation of the fracture surface by SEM image, the debonding occurs and longitudinal fibers are pulled out due to poor interfacial bonding of fiber and matrix, which also results in entire strength degeneration.

• Periodical: Advanced Materials Research (Volumes 233-235)
• Pages: 2794-2799
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.233-235.2794
• Online since: May 2011
• Authors: Yi Luen Li, Wei Jen Chen, Ming Yuan Shen, Chin Lung Chiang, Ming Chuen Yip
• Keywords: Carbon Nanotube (CN), Electrical Conductivity, Mechanical Property

References

[1] M. Cochet, W. K. Maser, A. M. Benito, M. A. Callejas, M. T. Martinez and J. M. Benoit, "Synthesis of a new polyaniline/nanotube composite: "in-situ" polymerization and charge transfer through siteselective interaction," Chem. Comm. 16 (2001) 1450–1451.

DOI: 10.1039/b104009j

[2] Hayhurst DR. J. Mech. Phys. Solids 1972;20:381.

[3] Finnie L, Heller WR. Creep of engineering materials. London: McGraw－Hill Book Company, 1959.

[4] Bendersky L, Rosen A, Mukherjee AK. Int. Metal. Rev.1985;130:1]15.

[5] S. Kumar, H. Doshi, M. Srinivasarao, J. O. Park and D. A. Schiraldi, "Fibers from polypropylene/nano carbon fiber composites," Polymer 43 (2002) 1701–1703.

DOI: 10.1016/s0032-3861(01)00744-3

[6] D. Qian, E. C. Dickey, R. Andrews and T. Rantell, "Load transfer and deformation mechanisms in carbon nanotube-polystyrene composites," Applied Physics Letters 76(20) (2000) 2868–2870.

DOI: 10.1063/1.126500

[8] M. T. Kortschot and R. T. Woodhams, Computer Simulation of the Electrical Conductivity of Polymer composite Containing Matallic Fillers, Polymer Composite, Vol. 9, No.1, February, (1988), pp.60-71.

DOI: 10.1002/pc.750090109

[9] I. Novak., I. Chodak., Investigation of the correlateion between electrical conductiveity and elongateion at break in polyurethane-based adhesives, Synthesis Metal, Vol. 131, (2002), pp.93-98.

[10] Chen, C. H. and Chen, Y. C., "The Creep Behavior of Solid filled Rubber Composites", J. Polymer Research, 1(1), 75-83, 1994.

[11] Zhang, S. Y. and Xiang, X. Y., "Creep Characterization of a Fiber Reinforced Plastic Material", J. Reinforced Plastic and Composites , 11,1187-1195,1992.

DOI: 10.1177/073168449201101009
