Flow Behavior and Microstructural Evolution of a 7039 Aluminum Alloy during Hot Deformation

Hui Zhong Li; Xiao Peng Liang; Min Song; Min Zeng

doi:10.4028/www.scientific.net/AMR.239-242.2395

Paper Titles

Blank Shape Optimization of Square Cup Deep-Drawing under the Unilateral Constrained Condition
p.2365

The Numerical Simulation on Welding Stress Field of High Strength Steel for Axle Case Steel 390Q
p.2370

Non-Linear Methods Could More Accurately Measure Chlorophyll Content in Grape Foliar Non-Destructively with Visible/Red-Infrared Hyperspectral
p.2376

Preparation and its Application Performance of Backfilling Cementation Material Based on Blast Furnace Slag
p.2389

Flow Behavior and Microstructural Evolution of a 7039 Aluminum Alloy during Hot Deformation
p.2395

Research and Progress on CA Mortar Emulsifying Asphalt of Ballast-Less Slab Track
p.2399

Visible-Light Photocatalytic Property of Titanate Nanotubes Sensitized by Several Porphyrins
p.2403

Study on Technology of Manufacturing Veneer—Rice Straw Composite Board
p.2407

The Effect of Impregnation Process on the Performance of Veneer Composite Plank
p.2411

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 239-242Flow Behavior and Microstructural Evolution of a...

Flow Behavior and Microstructural Evolution of a 7039 Aluminum Alloy during Hot Deformation

Abstract:

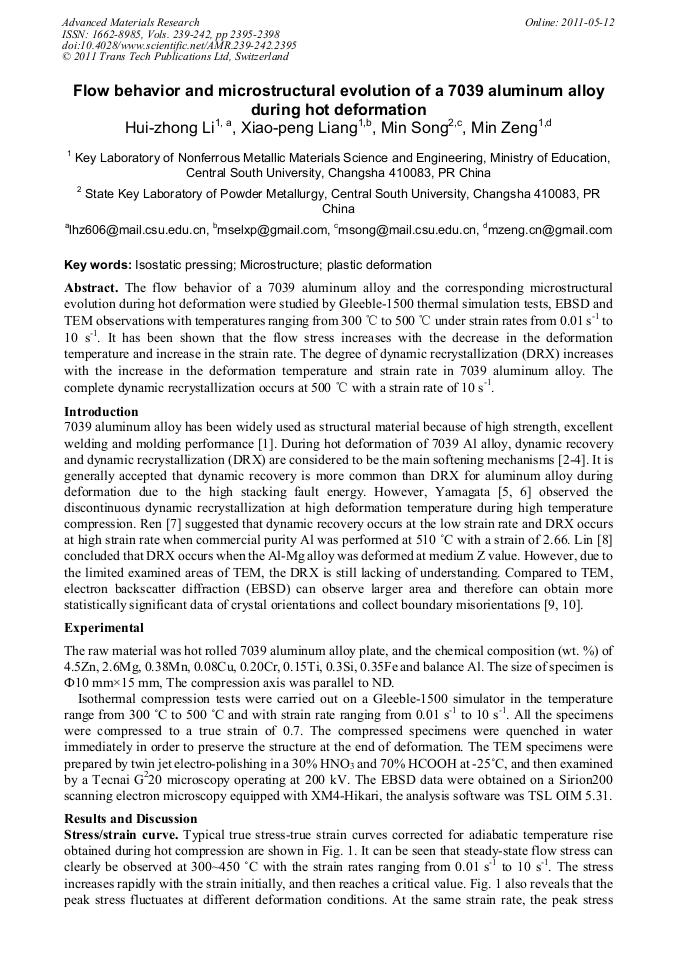

The flow behavior of a 7039 aluminum alloy and the corresponding microstructural evolution during hot deformation were studied by Gleeble-1500 thermal simulation tests, EBSD and TEM observations with temperatures ranging from 300 °C to 500 °C under strain rates from 0.01 s^-1 to 10 s^-1. It has been shown that the flow stress increases with the decrease in the deformation temperature and increase in the strain rate. The degree of dynamic recrystallization (DRX) increases with the increase in the deformation temperature and strain rate in 7039 aluminum alloy. The complete dynamic recrystallization occurs at 500 °C with a strain rate of 10 s^-1.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 239-242)

Pages:

2395-2398

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.239-242.2395

Citation:

Cite this paper

Online since:

May 2011

Authors:

Hui Zhong Li, Xiao Peng Liang, Min Song, Min Zeng

Keywords:

Isostatic Pressing, Microstructure, Plastic Deformation

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] C. G. Lee and S. Lee. Metall. Mater. Trans. A Vol. 29 (1998), p.227

Google Scholar

[2] W. H.V. Geertruyden, W. Z. Misiolek and P. T. Wang. Mater. Sci. Eng. A Vol. 419 (2006), p.105

Google Scholar

[3] J. Q. Su, T. W. Nelson and C. J. Sterling. Mater. Sci. Eng. A Vol. 405 (2005), p.277

Google Scholar

[4] H. E. Hu, L. Zhen, L. Yang, W. Z. Shao and B. Y. Zhang. Mater. Sci. Eng.A Vol.488(2008), p.64

Google Scholar

[5] H. Yamagata, Y. Ohuchida, N. Saito and M. Otsuka. Scr. Mater. Vol. 45 (2001), p.1055

Google Scholar

[6] H. Yamagata. Acta Metall. Mater. Vol. 43 (1995), p.723

Google Scholar

[7] B. Ren and J. G. Morris. Metall. Mater. Trans. A Vol. 26 (1995), p.31

Google Scholar

[8] J. P. Lin, T. C. Lei and X. Y. An. Scr. Metall. Mater. Vol. 26 (1992), p.1869

Google Scholar

[9] F. J. Humphreys and P. S. Bate. Acta Mater. Vol. 55 (2007), p.5630

Google Scholar

[10] F. J. Humphreys. Scr. Mater. Vol. 51 (2004), p.771

Google Scholar

[11] H. Z. Li, Z. Li, M. Song, X. P. Liang and F. F. Guo. Mater. Design Vol. 31 (2010), p.2171

Google Scholar

[12] J. W. Zhao, H. Ding, H. L. Hou and Z. Q. Li. J Alloys Compd. Vol. 491 (2010), p.673

Google Scholar

[13] H. Zhang, L. X. Li, D. Yuan and D. S. Peng. Mater. Charact. Vol. 58 (2007), p.168

Google Scholar

[14] H. J. McQueen, S. Yue, N. D. Ryan and E. Fry. J Mater. Proc. Technol. Vol. 53 (1995), p.293

Google Scholar

[15] H. J. McQueen, E. Fry and J. Belling. J Mater. Eng. Perform. Vol. 10 (2001), p.164

Google Scholar
