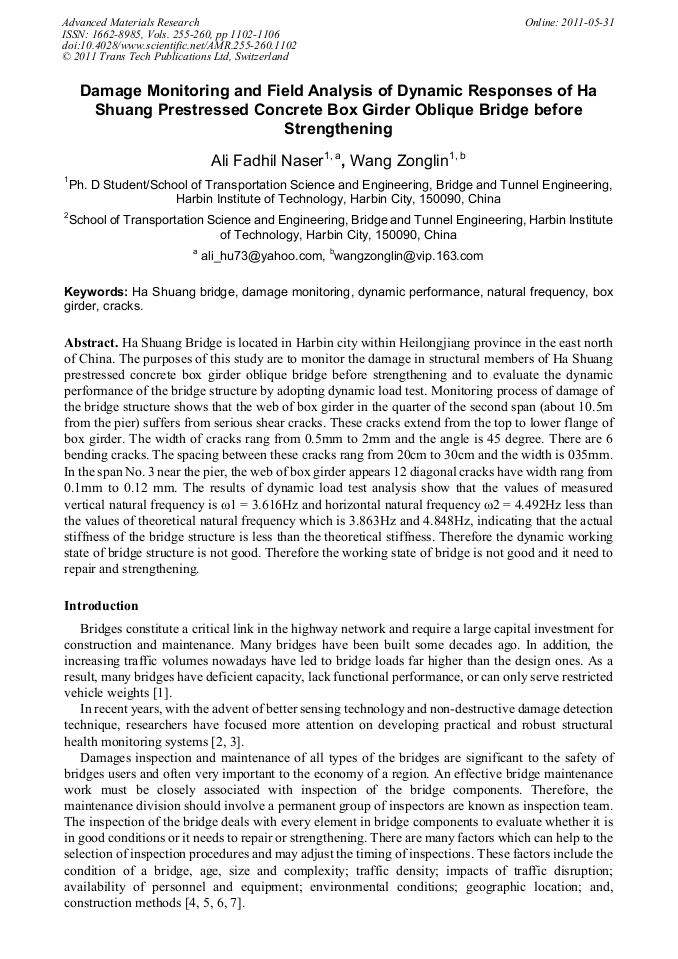

Damage Monitoring and Field Analysis of Dynamic Responses of Ha Shuang Prestressed Concrete Box Girder Oblique Bridge before Strengthening

Abstract:

Ha Shuang Bridge is located in Harbin city within Heilongjiang province in the east north of China. The purposes of this study are to monitor the damage in structural members of Ha Shuang prestressed concrete box girder oblique bridge before strengthening and to evaluate the dynamic performance of the bridge structure by adopting dynamic load test. Monitoring process of damage of the bridge structure shows that the web of box girder in the quarter of the second span (about 10.5m from the pier) suffers from serious shear cracks. These cracks extend from the top to lower flange of box girder. The width of cracks rang from 0.5mm to 2mm and the angle is 45 degree. There are 6 bending cracks. The spacing between these cracks rang from 20cm to 30cm and the width is 035mm. In the span No. 3 near the pier, the web of box girder appears 12 diagonal cracks have width rang from 0.1mm to 0.12 mm. The results of dynamic load test analysis show that the values of measured vertical natural frequency is w1 = 3.616Hz and horizontal natural frequency w2 = 4.492Hz less than the values of theoretical natural frequency which is 3.863Hz and 4.848Hz, indicating that the actual stiffness of the bridge structure is less than the theoretical stiffness. Therefore the dynamic working state of bridge structure is not good. Therefore the working state of bridge is not good and it need to repair and strengthening.

• Periodical: Advanced Materials Research (Volumes 255-260)
• Pages: 1102-1106
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.255-260.1102
• Online since: May 2011
• Authors: Ali Fadhil Naser, Zong Lin Wang
• Keywords: Box Girder, Crack, Damage Monitoring, Dynamic Performance, Ha Shuang Bridge, Natural Frequency

References

[1] A. P. Chassiakos, P. Vagiotas, and D.D. Theodorakopoulos, A knowledge-based system for maintenance planning of highway concrete bridge, Advances in Engineering Software 36, P.P 740–749, (2005).

DOI: 10.1016/j.advengsoft.2005.03.020

[2] S. Choia, S. Parkb, R. Boltonc, N. Stubbsd, and C. Sikorskye, Periodic monitoring of physical property changes in a concrete box-girder bridge, Journal of Sound and Vibration 278, P. P365–381, (2004).

DOI: 10.1016/j.jsv.2003.10.005

[3] C.R. Farrar, and D.A. Jauregui, Comparative study of damage identification algorithms applied to a bridge: I. experiment, Journal of Smart Materials and Structures 7–5, 704–719, (1998).

DOI: 10.1088/0964-1726/7/5/013

[4] A. Osama, A. Mohammed, and A. Ikhlas, An imaging data model for concrete bridge inspection, J. Advances in Engineering Software 35, 473–480, (2004).

[5] AASHTO, Manual for condition evaluation of bridges, Washington, DC: American Association of State Highway and Transportation Officials, (2000).

[6] J. C. Robert, D. Robert, and M. Hussam, Inspection and management of bridges with fracture-critical details, National Cooperation Highway Research Program (NCHRP), A synthesis of Highway Practice, Transportation of Research Board (TRB), Washington. D. C., (2005).

[7] K. Fuhrman, and V. Desens, Bridge Inspection Report, Minneapolis City, Hennepin, (2007).

[8] P. Patrick, K. Omer, P. Jeam, Bridge dynamics and dynamic amplification factors: A review of analytical and experimental findings CAN. J. CIV. ENG. VOL. 19. P. P 260-278, (1992).
