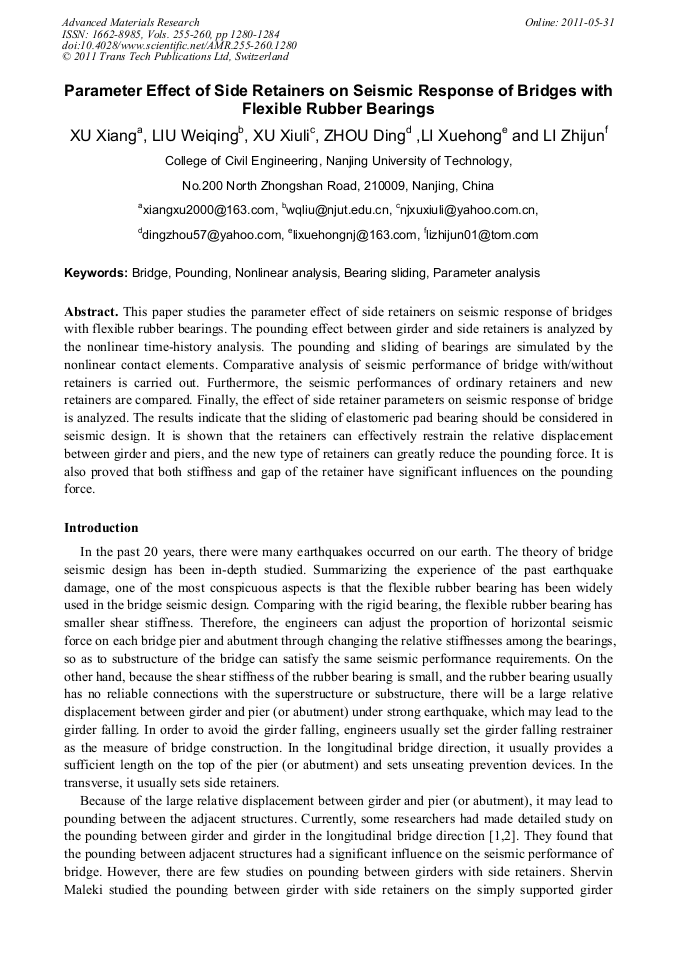

Parameter Effect of Side Retainers on Seismic Response of Bridges with Flexible Rubber Bearings

Abstract:

This paper studies the parameter effect of side retainers on seismic response of bridges with flexible rubber bearings. The pounding effect between girder and side retainers is analyzed by the nonlinear time-history analysis. The pounding and sliding of bearings are simulated by the nonlinear contact elements. Comparative analysis of seismic performance of bridge with/without retainers is carried out. Furthermore, the seismic performances of ordinary retainers and new retainers are compared. Finally, the effect of side retainer parameters on seismic response of bridge is analyzed. The results indicate that the sliding of elastomeric pad bearing should be considered in seismic design. It is shown that the retainers can effectively restrain the relative displacement between girder and piers, and the new type of retainers can greatly reduce the pounding force. It is also proved that both stiffness and gap of the retainer have significant influences on the pounding force.

• Periodical: Advanced Materials Research (Volumes 255-260)
• Pages: 1280-1284
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.255-260.1280
• Online since: May 2011
• Authors: Xiang Xu, Wei Qin Liu, Xiu Li Xu, Ding Zhou, Xue Hong Li, Zhi Jun Li
• Keywords: Bearing Sliding, Bridge, Non-Linear Analysis, Parameter Analysis, Pounding

References

[1] Praveen K. Malhotra. Dynamics of Seismic Pounding at Expansion Joints of Concrete Bridges. Journal of Engineering Mechanics, ASCE, Vol, 124 (1998), 794-802.

DOI: 10.1061/(asce)0733-9399(1998)124:7(794)

[2] Wang Junwen, Li Jianzhong, Fan Lichu. Effect of Pounding at Expansion Joints on Seismic Response of Irregular Girder Bridges. China Civil Engineering Journal, Vol.39(2006), 54-58.

[3] Shervin Maleki. Effect of Side Retainers on Seismic Response of Bridges with Elastomeric Bearings. Journal of Bridge Engineering, Vol, 9(2004), 95-100.

DOI: 10.1061/(asce)1084-0702(2004)9:1(95)

[4] Shervin Maleki. Seismic Modeling of Skewed Bridges with Elastomeric Bearing and Side Retainers. Journal of Bridge Engineering, Vol, 10(2005), 422-449.

DOI: 10.1061/(asce)1084-0702(2005)10:4(442)

[5] DENG Yulin, PENG Tianbo, LI Jianzhong. Pounding Model of Bridge Structures and Parameter Analysis Under Transverse Earthquakes. Journal of Vibration and Shock, Vol, 26(2007), 104-107.

[6] NIE Liying, LI Jianzhong, FAN Lichu. Selection of Pounding Analysis Parameters and Its Effects on Structure Under Earthquake. Engineering Mechanics, Vol, 22(2005), 142-146.

[7] NIE Liying, FAN Lichu. Analysis of Crashworthy Measure of Reinforced Concrete Block on Anti-seismic Urban Interchange Bridge Under Earthquake. China Journal of Highway and Transport, Vol, 19(2006), 49-53.

[8] Xu Xiang, Liu Weiqing, Xu Xiuli. Seismic Performance of New Side Retainer. Journal of Southeast University (Natural Science Edition), Vol, 39(2009), 165-168.

[9] Series of Elastomeric Pad Bearing for Highway Bridge(JT/T663-2006). Ministry of Transport of the People's Republic of China, 2006.

[10] Guidelines for Seismic Design of Highway Bridge(JTG/TB02-01-2008). Ministry of Transport of the People's Republic of China, 2008.
