Dry Sliding Wear Mechanisms of the High Nitrogen Austenitic 18Cr-18Mn-2Mo-0.9N Steel at Different Applied Loads

Yong Suk Kim; Seung Duk Kim; Sung Joon Kim

doi:10.4028/www.scientific.net/AMR.26-28.37

Paper Titles

Metal Injection Molding Method of Ni-Free Austenitic Stainless Steel II - Microstructure and Mechanical Properties
p.19

Aqueous Corrosion Characteristics of Iron Aluminides
p.23

Continuous Cooling Transformation Behavior of High Strength Low-Alloyed Cold Rolled Sheet Steel
p.27

Study of High Temperature Wear Resistance of Hot Work Steel for Magnesium Alloy Die Casting
p.33

Dry Sliding Wear Mechanisms of the High Nitrogen Austenitic 18Cr-18Mn-2Mo-0.9N Steel at Different Applied Loads
p.37

Fluid-Structure Coupled Analyses of Composite Wind Turbine Blades
p.41

Cementite Decomposition of Pearlitic Steels during Cold Drawing
p.45

The Texture Evolution of Dual Phase Steel Sheets
p.51

Effects of Finishing Rolling Temperature on the Microstructural Behavior for Fe-0.1C Steel as a Function of Niobium Content
p.55

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 26-28Dry Sliding Wear Mechanisms of the High Nitrogen...

Dry Sliding Wear Mechanisms of the High Nitrogen Austenitic 18Cr-18Mn-2Mo-0.9N Steel at Different Applied Loads

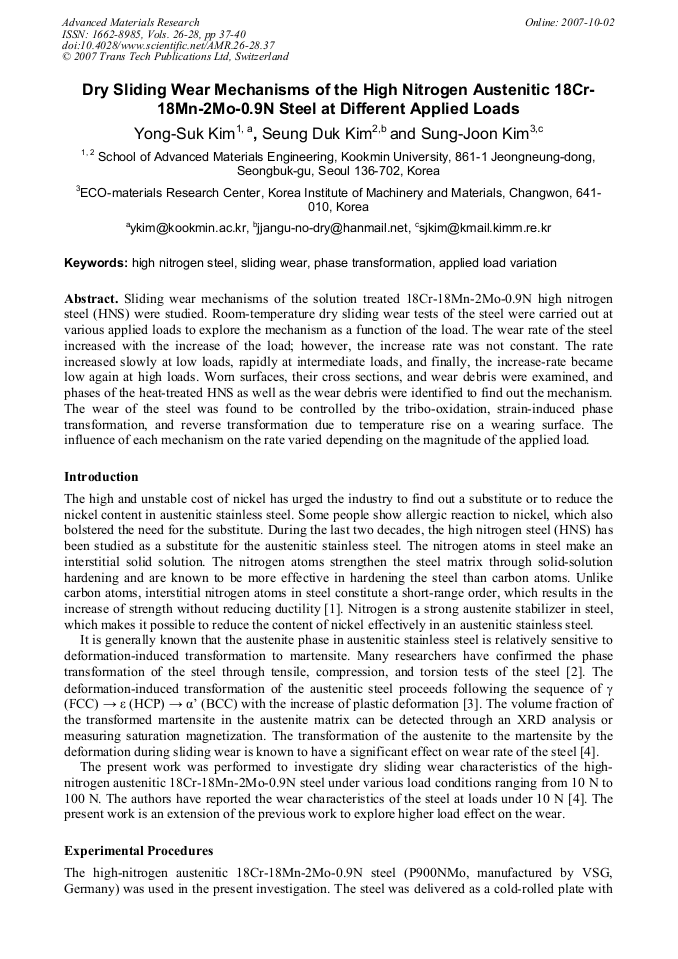

Abstract:

Sliding wear mechanisms of the solution treated 18Cr-18Mn-2Mo-0.9N high nitrogen steel (HNS) were studied. Room-temperature dry sliding wear tests of the steel were carried out at various applied loads to explore the mechanism as a function of the load. The wear rate of the steel increased with the increase of the load; however, the increase rate was not constant. The rate increased slowly at low loads, rapidly at intermediate loads, and finally, the increase-rate became low again at high loads. Worn surfaces, their cross sections, and wear debris were examined, and phases of the heat-treated HNS as well as the wear debris were identified to find out the mechanism. The wear of the steel was found to be controlled by the tribo-oxidation, strain-induced phase transformation, and reverse transformation due to temperature rise on a wearing surface. The influence of each mechanism on the rate varied depending on the magnitude of the applied load.
