Experimental Investigation on the Instability of Al Sheet in Hydraulic Bulging Based on ESPI

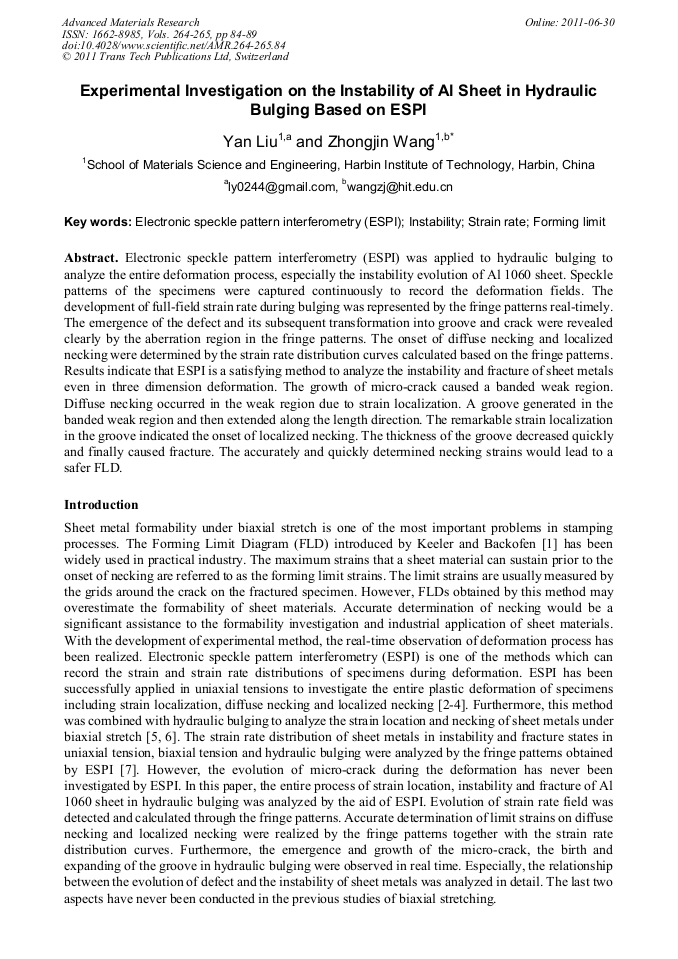

Abstract:

Electronic speckle pattern interferometry (ESPI) was applied to hydraulic bulging to analyze the entire deformation process, especially the instability evolution of Al 1060 sheet. Speckle patterns of the specimens were captured continuously to record the deformation fields. The development of full-field strain rate during bulging was represented by the fringe patterns real-timely. The emergence of the defect and its subsequent transformation into groove and crack were revealed clearly by the aberration region in the fringe patterns. The onset of diffuse necking and localized necking were determined by the strain rate distribution curves calculated based on the fringe patterns. Results indicate that ESPI is a satisfying method to analyze the instability and fracture of sheet metals even in three dimension deformation. The growth of micro-crack caused a banded weak region. Diffuse necking occurred in the weak region due to strain localization. A groove generated in the banded weak region and then extended along the length direction. The remarkable strain localization in the groove indicated the onset of localized necking. The thickness of the groove decreased quickly and finally caused fracture. The accurately and quickly determined necking strains would lead to a safer FLD.

• Periodical: Advanced Materials Research (Volumes 264-265)
• Pages: 84-89
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.264-265.84
• Online since: June 2011
• Authors: Yan Liu, Zhong Jin Wang
• Keywords: Electronic Speckle Pattern Interferometry (ESPI), Forming Limit, Instability, Strain Rate

References

[1] S. P. Keeler and W. A. Backofen: ASM Transactions Quarterly Vol. 56 (1964), p.25.

[2] S. Toyooka and X.L. Gong: Jpn. J. Appl. Phy. Vol. 34 (1995), p. L1666.

[3] B. Guelorget, M. François and C. Vial-Edwards: Mater. Sci. Eng. A Vol. 415 (2006), p.234.

[4] Q.C. Zhang, Z.Y. Jiang and H.F. Jiang: Int. J. Plast. Vol. 37 (2007), p.1320.

[5] G. Montay, M. Francois and M. Tourneix: Opt. Lasers. Eng. Vol. 45 (2007), p.222.

[6] G. Montay, M. Francois and M. Tourneix: J Mater. Process. Technol. Vol. 184 (2007), p.428.

[7] C. Vial-Edwards, B. Guelorget and M. Francois: Proc. of SPIE Vol. 5776 (2005), p.699.

[8] H.W. Swift: J Mech. Phys. Solids Vol. (1952), p.1.

[9] B.W. Liang and S.G. Hu: Theory of elastic-plastic stability (National Defence Industry Press, Beijing 1983).
