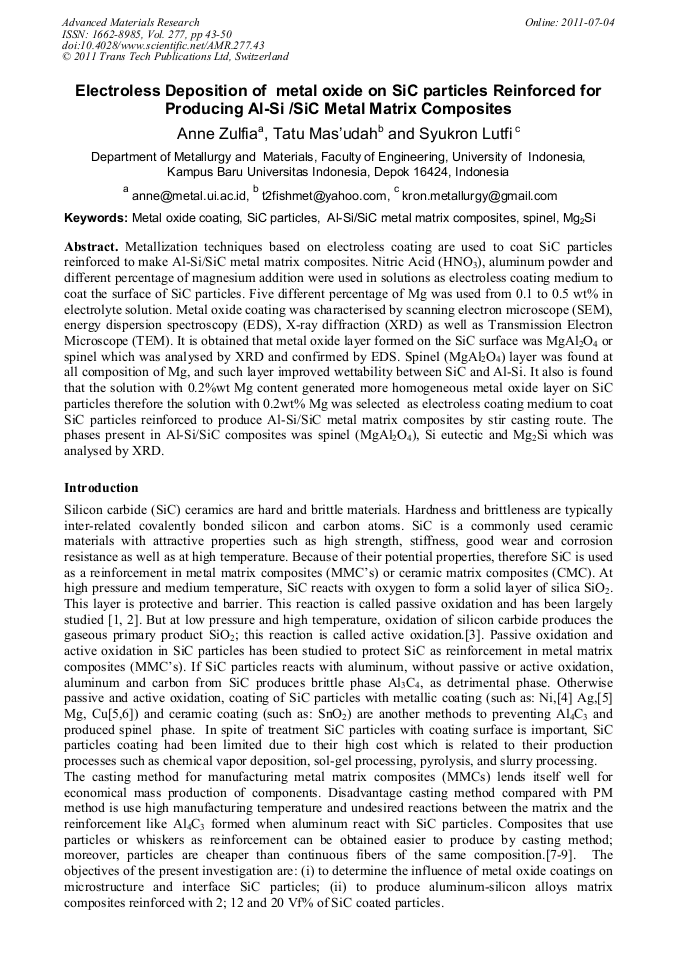

Electroless Deposition of Metal Oxide on SiC Particles Reinforced for Producing Al-Si /SiC Metal Matrix Composites

Abstract:

Metallization techniques based on electroless coating are used to coat SiC particles reinforced to make Al-Si/SiC metal matrix composites. Nitric Acid (HNO₃), aluminum powder and different percentage of magnesium addition were used in solutions as electroless coating medium to coat the surface of SiC particles. Five different percentage of Mg was used from 0.1 to 0.5 wt% in electrolyte solution. Metal oxide coating was characterised by scanning electron microscope (SEM), energy dispersion spectroscopy (EDS), X-ray diffraction (XRD) as well as Transmission Electron Microscope (TEM). It is obtained that metal oxide layer formed on the SiC surface was MgAl₂O₄ or spinel which was analysed by XRD and confirmed by EDS. Spinel (MgAl₂O₄) layer was found at all composition of Mg, and such layer improved wettability between SiC and Al-Si. It also is found that the solution with 0.2%wt Mg content generated more homogeneous metal oxide layer on SiC particles therefore the solution with 0.2wt% Mg was selected as electroless coating medium to coat SiC particles reinforced to produce Al-Si/SiC metal matrix composites by stir casting route. The phases present in Al-Si/SiC composites was spinel (MgAl₂O₄), Si eutectic and Mg₂Si which was analysed by XRD.

• Periodical: Advanced Materials Research (Volume 277)
• Pages: 43-50
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.277.43
• Online since: July 2011
• Authors: Anne Zulfia, Tatu Mas’udah, Syukron Lutfi
• Keywords: Al-Si/SiC Metal Matrix Composites, Metal Oxide Coating, Mg₂Si, SiC Particles, Spinel

References

[1] A. Urena, M. D. Escalera, & L. Gil., "Oxidation barriers on SiC particles for use in Aluminium matrix composites manufactured by casting route: Mechanisms of interfacial Protection, Journal of Material Science Vol 37, 2002, p.4633 – 4643.

[2] Z.L. Shi, S.O. Chiai, M. Hojo, J. Lee, M.Y. Gu, H. Lee, R. Wu, The oxidation of SiC particles and interfacial characteristics in Al-matrix composite, Journal of Material Science, Vol. 34, 2001 p.2442.

[3] A. Pardo, M.C. Merini, J. Rams, S. Merlino, F. Viejo, M Effect of Reinforcement Coating on the Oxidation Behavior of AA6061/SiC/20p Composite., Oxidation of Metals, Vol. 63, No. 3/4, April 2005, pp.215-227.

DOI: 10.1007/s11085-005-3201-3

[4] F. Kretz, Z. Gácsi, J. Kovács, T. Pieczonka, The Electroless Deposition of Nickel on SiC Particles for Aluminium Matrix Composites, Surface and coating technology, Vol 180-181, 2004, pp.575-579.

DOI: 10.1016/j.surfcoat.2003.10.150

[5] S.Y. Chang, J.H. Lin, S.J. Lin, T.Z. Processing Copper and silver matrix composites by electroless plating and hot pressing., Metallurgical and material transaction A Vol 30A, 1999, pp.1119-1136.

DOI: 10.1007/s11661-999-0164-z

[6] Gao, H. Q., Wang L. D., and Fei, W. D., "Electroless Plating Copper Coating of Al18B4O33 Whisker for Interface Improvement Whiskers Reinforced Aluminium Matrix Composites, Materials Science and Technology, 23 (12), Dec 2007, pp.1497-1504.

DOI: 10.1179/174328407x239091

[7] D.L. Erich, Prog. Powder Metall. 46 (1986), p.45–65.

[8] J.M. Torralba, C.E. Da Costa, F. Velasco, J. Mater. Process. Technol. 5822 (2002) 1–4.

[9] W.H. Hunt Jr, T.J. Rodjom, Adv. Powder Metall. 9 (1992), p.21–31.

[10] M. Torralba, C.E. Da Costa, F. Velasco, J. Mater. Process. Technol. 5822 (2002) p.1–4.

[11] J.A. Aguilar and Matinez, Effect of Particle Size and Mg Content on The Processing Parameter of Al-Si-Mg/SiCp, Revista Mexiana de Fisica, 53 (3), 2007, pp.205-209.

[12] S.N. Ahmad, The Effect of Porosity on Mechanical Properties of Cast Discontinuous Reinforced MMC. Journal of Composites Materials, vol. 39(5). 2005, pp.451-466.

[13] Zhou, W. and Xu, Z.M. (1997). Casting of SiC Reinforced Metal Matrix Composites. Journal of Materials Processing Technology, vol. 63, p.358–363.

DOI: 10.1016/s0924-0136(96)02647-7

[14] Z. Shi, S. Ochiai, M. Gu, M. Hojo, J.C. Lee, Appl. Phys. A 74, (2002), p.97–104.
