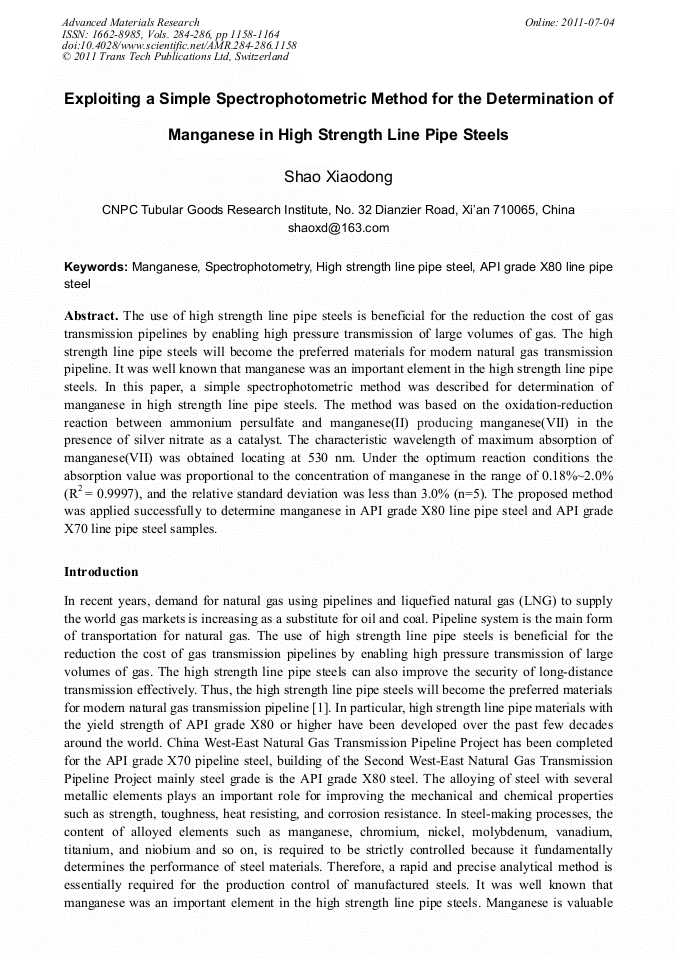

Exploiting a Simple Spectrophotometric Method for the Determination of Manganese in High Strength Line Pipe Steels

Abstract:

The use of high strength line pipe steels is beneficial for the reduction the cost of gas transmission pipelines by enabling high pressure transmission of large volumes of gas. The high strength line pipe steels will become the preferred materials for modern natural gas transmission pipeline. It was well known that manganese was an important element in the high strength line pipe steels. In this paper, a simple spectrophotometric method was described for determination of manganese in high strength line pipe steels. The method was based on the oxidation-reduction reaction between ammonium persulfate and manganese(II) producing manganese(VII) in the presence of silver nitrate as a catalyst. The characteristic wavelength of maximum absorption of manganese(VII) was obtained locating at 530 nm. Under the optimum reaction conditions the absorption value was proportional to the concentration of manganese in the range of 0.18%~2.0% (R² = 0.9997), and the relative standard deviation was less than 3.0% (n=5). The proposed method was applied successfully to determine manganese in API grade X80 line pipe steel and API grade X70 line pipe steel samples.

• Periodical: Advanced Materials Research (Volumes 284-286)
• Pages: 1158-1164
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.284-286.1158
• Online since: July 2011
• Authors: Xiaodong Shao
• Keywords: Api Grade X80 Line Pipe Steel, High Strength Line Pipe Steel, Manganese, Spectrophotometry

References

[1] Y. Wang, J. Pan, K. Yang and Y. Shan, High performance pipeline steel, Welded Pipe and Tube Vol. 30 (2007), pp.11-16.

[2] K. Wagatsuma, K. Kodama and H. Park, Precise determination of manganese in steel by dc glow discharge optical emission spectrometry associated with voltage modulation technique, Analytica Chimica Acta Vol. 502 (2004), pp.257-263.

DOI: 10.1016/j.aca.2003.10.005

[3] T.M. Naeem, H. Matsuta and K. Wagatsuma, Development of a laser ablation-hollow cathode glow discharge emission source and the application to the analysis of steel samples, Analytical Sciences Vol. 20 (2004), pp.1717-1720.

DOI: 10.2116/analsci.20.1717

[4] N. Tokman, The use of slurry sampling for the determination of manganese and copper in various samples by electrothermal atomic absorption spectrometry, Journal of Hazardous Materials Vol. 143 (2007), pp.87-94.

DOI: 10.1016/j.jhazmat.2006.08.068

[5] Ç.A. Şahin, M. Efeçınara and N. Şatıroğlua, Combination of cloud point extraction and flame atomic absorption spectrometry for preconcentration and determination of nickel and manganese ions, Journal of Hazardous Materials Vol. 176 (2010), pp.672-677.

DOI: 10.1016/j.jhazmat.2009.11.084

[6] M.A. Taher, Flame atomic absorption spectrometric determination of trace amounts of manganese in alloys and biological samples after preconcentration on microcrystalline naphthalene or by column method, Analytical Sciences Vol. 17 (2001), pp.969-973.

DOI: 10.2116/analsci.17.969

[7] V.A. Lemos and G.T. David, An on-line cloud point extraction system for flame atomic absorption spectrometric determination of trace manganese in food samples, Microchemical Journal Vol. 94 (2010), pp.42-47.

DOI: 10.1016/j.microc.2009.08.008

[8] F.B. Gonzaga and C. Pasquinia, A complementary metal oxide semiconductor sensor array based detection system for laser induced breakdown spectroscopy, Spectrochimica Acta Part B: Atomic Spectroscopy Vol. 63 (2008), pp.56-63.

DOI: 10.1016/j.sab.2007.11.005

[9] F.B. Gonzaga and C. Pasquinia, A new detection system for laser induced breakdown spectroscopy based on an acousto-optical tunable filter coupled to a photomultiplier, Spectrochimica Acta Part B: Atomic Spectroscopy Vol. 63 (2008), pp.1268-1273.

DOI: 10.1016/j.sab.2008.09.014

[10] J.D. Norris and T.S. West, The determination of chromium and manganese in steels in a separated airacetylene flame with a dual-element electrodeless discharge lamp, Analytica Chimica Acta Vol. 59 (1972), pp.474-476.

DOI: 10.1016/0003-2670(72)80017-5

[11] K. Tomura and H. Tomuro, Determination of trace manganese in high-purity iron by instrumental neutron activation analysis using a thermal column, Journal of Radioanalytical and Nuclear Chemistry Vol. 242 (1999), pp.147-153.

DOI: 10.1007/bf02345908

[12] R. Piech, B. Baśa and W.W. Kubiaka, The cyclic renewable mercury film silver based electrode for determination of manganese traces using anodic stripping voltammetry, Journal of Electroanalytical Chemistry Vol. 621 (2008), pp.43-48.

DOI: 10.1016/j.jelechem.2008.04.008

[13] D. Zhang, S. Ba and J. Gao, Simultaneous determination of chromium and manganese in steel by differential reaction rate kinetic spectrophotometry, Metallurgical Analysis Vol. 26 (2006), pp.44-47.

[14] B. Chiswell and G Rauchle, Spectrophotometric methods for the determination of manganese, Talanta Vol. 37 (1990), pp.237-259.

DOI: 10.1016/0039-9140(90)80029-f

[15] M. Kamburova, Neotetrazolium chloride: a new reagent for spectrophotometric determination of manganese, Talanta Vol. 46 (1998), pp.1073-1078.

DOI: 10.1016/s0039-9140(97)00376-7

[16] S.G. Silva, J.A. Nóbrega and F.R.P. Rocha, A flow system with solenoid micro-pumps coupled to long pathlength spectrophotometry for fast manganese determination, Microchemical Journal Vol. 98 (2011), pp.109-114.

DOI: 10.1016/j.microc.2010.12.004

[17] S. Nakano, Y. Matumoto and M. Yoshii, Flow-injection photometric determination of manganese based on its catalysis of the periodate oxidation, Talanta Vol. 68 (2005), pp.312-317.

DOI: 10.1016/j.talanta.2005.08.053
