Preparation and Characterization of Al2TiO5- Si3N4 Composites by Reaction Sintering Process

Rui Sheng Wang; Jun Hong Zhao; Heng Yong Wei; Shao Wei Yao

doi:10.4028/www.scientific.net/AMR.284-286.201

Paper Titles

Investigation on the Alkali-Resistance Properties of Basalt Fiber Reinforced Plastics Bars in Concrete
p.182

Flame Retardant ABS with a Novel Polyphosphate Derived from Biomass
p.187

Effect of Preparation Technique on Methyl Orange Sorption Behavior of Exfoliated Graphite
p.193

QSPR Study on Electric Spark Sensitivity of Nitro Arenes
p.197

Preparation and Characterization of Al₂TiO₅- Si₃N₄ Composites by Reaction Sintering Process
p.201

Mechanical and Tribological Properties of PTW/PTFE/PPS/PES Composites
p.205

Effect of Silicon on Molten Iron Corrosion Resistance of Corundum-Silicon Nitride Composites
p.210

Preparation and Study of Polyethylene Glycol (PEG)/Titanium Dioxide (TiO₂) Phase Change Materials
p.214

Investigation of Microemulsion System for Transdermal Delivery of Matrine
p.219

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 284-286Preparation and Characterization of Al2TiO5- Si3N4...

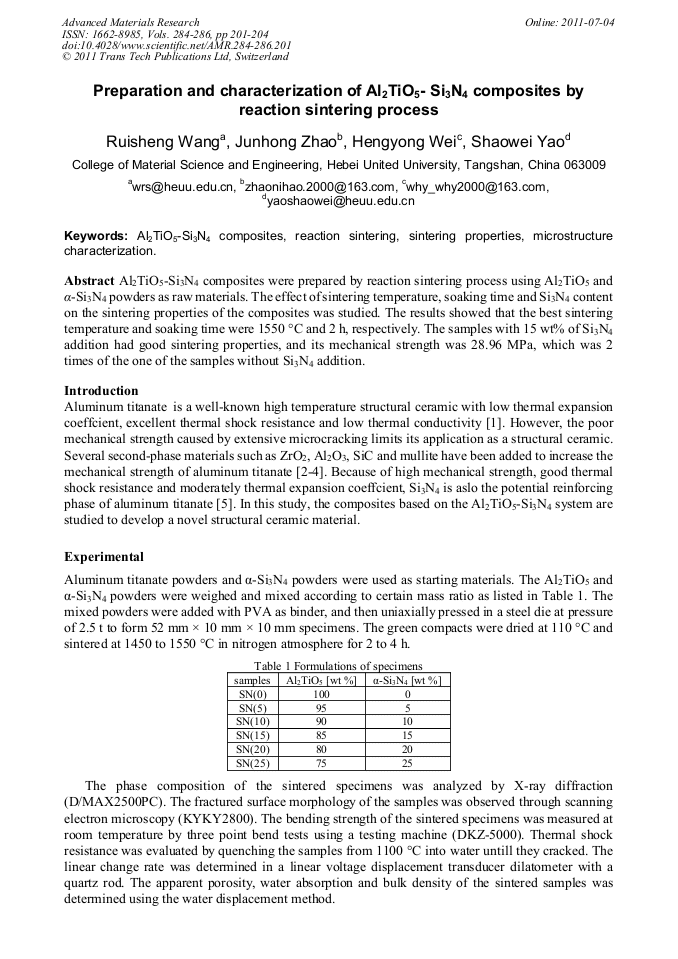

Preparation and Characterization of Al₂TiO₅- Si₃N₄ Composites by Reaction Sintering Process

Abstract:

Al₂TiO₅-Si₃N₄ composites were prepared by reaction sintering process using Al₂TiO₅ and α-Si₃N₄ powders as raw materials. The effect ofsintering temperature, soaking time and Si₃N₄ content on the sintering properties of the composites was studied. The results showed that the best sintering temperature and soaking time were 1550 °C and 2 h, respectively. The samples with 15 wt% of Si₃N₄ addition had good sintering properties, and its mechanical strength was 28.96 MPa, which was 2 times of the one of the samples without Si₃N₄ addition.
